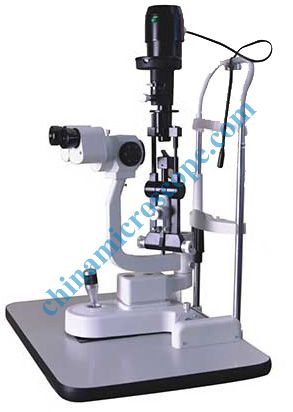

Galilean stereo microscope provides high depth of view and large angle observation,
Five step drum magnifications, more convenient
All the lens are multi-coated, mildew proof and anti reflection
Excellent optical performance gives more clear image
Two types slit lamp for choice: 14mm aperture slit lamp or 9mm aperture slit lamp
Specification
|
Microscope type |
Galilean parallel stereo microscope |
|
Eyepiece |
12.5x |
|
Magnification and field of view |
6×（φ35mm）、10×(φ23mm), 16×（φ14mm）、25×（φ9mm）,40×（φ5.5mm） |
|
Interpupillary adjustment |
55mm ~ 75mm |
|
Diopter adjustment |
+5D ~ -5D |
|
Fixed lamp |
Red lamp |
|
Slit width |
0 ~ 14mm adjustable |
|
Slit angle |
0°-180°adjustable |
|
Slit length |
0 ~ 14mm adjustable |
|
Slit inclination |
5°, 10°,15°, 20° |
|
Aperture diameter |
Ф9mm 、Ф8mm、 Ф5mm 、 Ф3mm 、Ф2mm 、Ф0.2mm or Ф14mm 、Ф10mm、 Ф8mm 、 Ф5mm、 Ф3mm、Ф2mm 、Ф0.2mm |
|
Filter |
Heat absorption, Grey, Red free, Cobalt blue |
|
Bulb |
12V 30W or 12V 50W halogen lamp |
|
Input voltage |
110V/220V AC |
|
Frequency |
50H/60Hz |
|
Power consumption |
80VA |
|
Gross weight |
25kg |
|
Net weight |
22kg |
|
Package dimension |
770mm（L）×620mm（W）× 380mm（H） |
