Features

Imaging Mode: B, B+A, B+B, A

High Resolution Images

Memory: up to 8 Images

Zoom: 34 ~ 60mm, up to 6 steps adjustable

Variable Displaying Area

5 Segments Adjustable TGC

Cineloop for 5.6sec

Accurate Axial Measurement under B-mode (SMI-5)

Manual Correction of Axial Measurement under A-mode (SMI-5)

Multi-groups of Calipers for Distance Measurement

Various Area Measurement Methods

Measuring Mode: Contact and Immersion

8 Groups’ Average with Standard Deviation (S.D.)

Save up to 50 Groups of IOL Calculation Results

B-Probe Protection: Hibernation after 10 minutes of Continuous Scanning

Foldable Keyboard & Portable Design

Trackball for Easy Measurement and Operation

Real-Time Clock

Optional Image Output: Video Printer or Workstation

Specifications

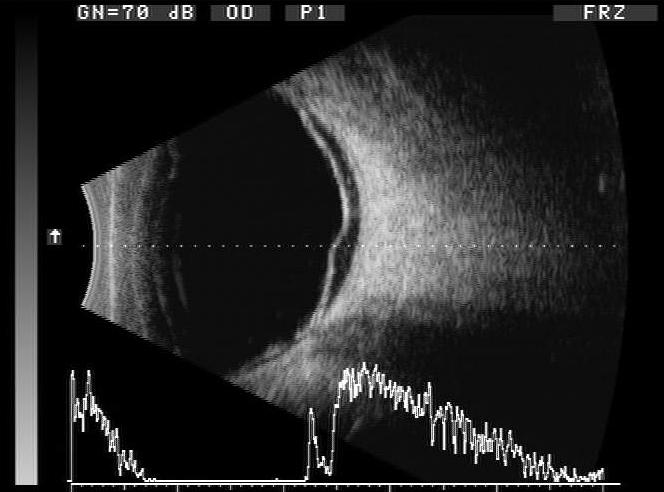

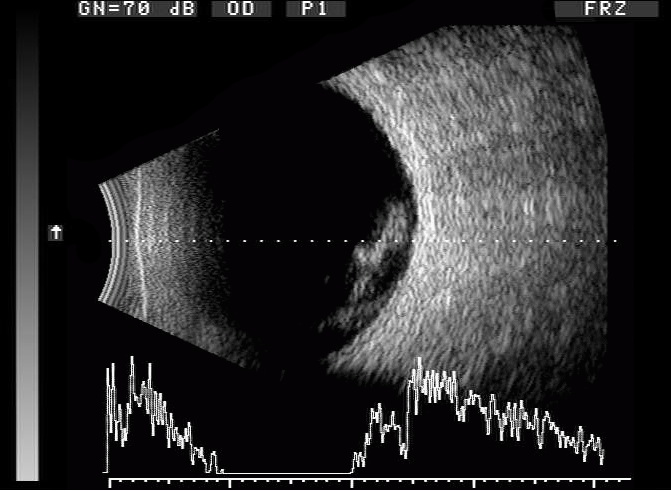

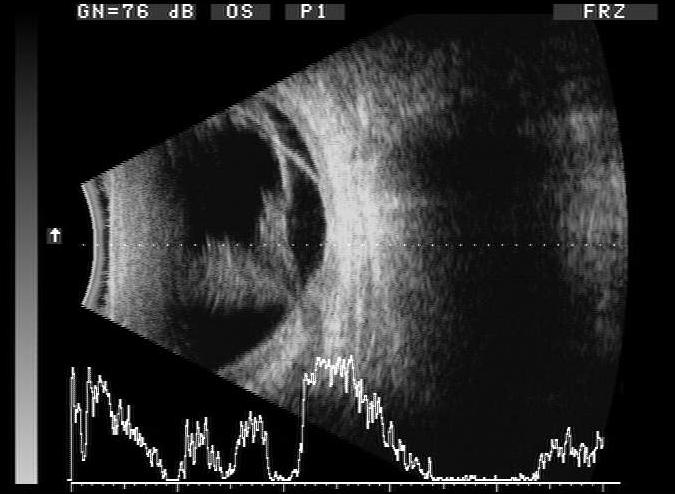

B-SCAN

Probe Frequency: 10MHz

Scanning Angle: 53°

Resolution: axial≤0.2mm, lateral≤ 0.4mm

Total Gain: ≥98dB, adjustable

Zoom: 34mm ~ 60mm, 6 steps adjustable

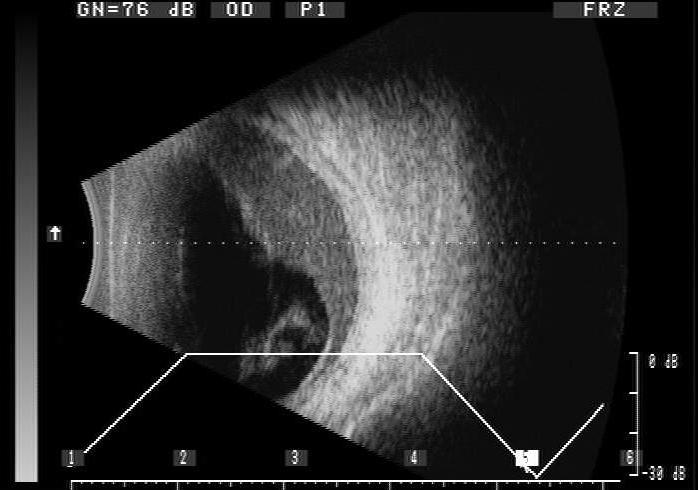

TGC: -30dB ~ 0dB dynamic, 6 Points manually adjustable

Dynamic Replay for 5.6 sec, 56 images displayed continuously or separately

Variable Delay Depth: 0~15 mm

Multi-groups of Electronic Calipers for Distance Measurement

Various Area Measurement Methods

Post Processing: 4 groups of curves (Linear, Logarithmic, Exponential, S-curve)

Gray Scale: 256 levels

A-SCAN

Probe: 10MHz with Fixation Red Light

Resolution: 0.01mm

Biometry Accuracy: ≤±0.06mm

Gain: ≥98dB with an adjustable range of 0 ~ 55dB

Measuring Range: 15~39mm

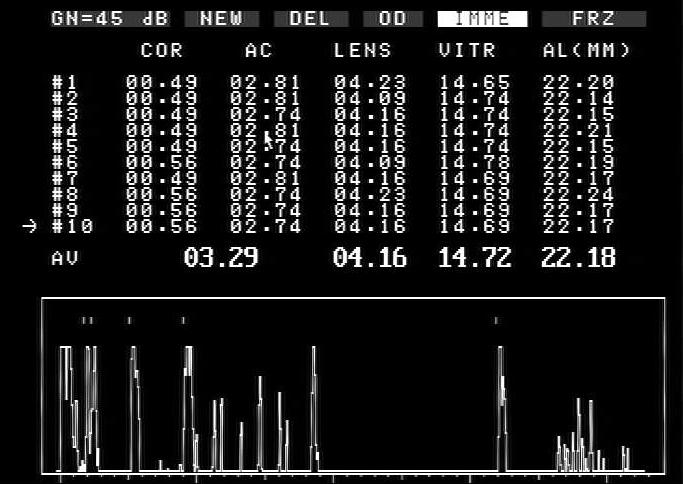

Measuring Parameters: Anterior Chamber Depth, Lens Thickness, Vitreous Length and Axial length.

5 Different Measuring Modes: Automatic (for Normal, Dense Cataract, Aphakic and Pseudo-aphakic) & Manual

Calculation of 8 Groups’ Average with Standard Deviation (S.D)

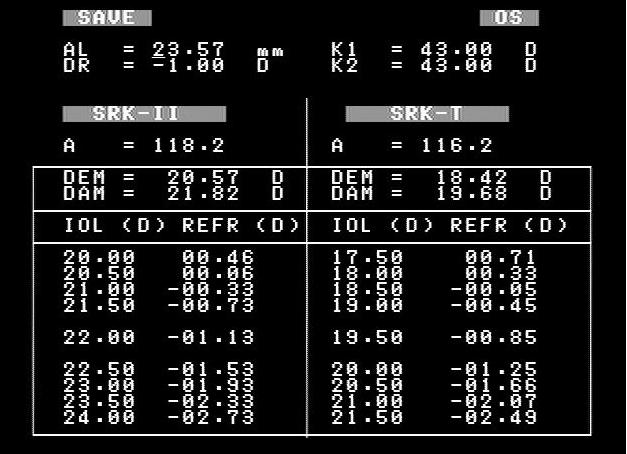

IOL Formula: SRK/T, SRK-II, BINKHOST- II, HOLLADAY, HOFFER-Q and HAIGIS

Save up to 50 groups of results and 4 groups of IOL constants

Others

AC 100~240V, 50/60Hz

Weight: 10Kg

Dimension: 360 x 300 x 260 mm
