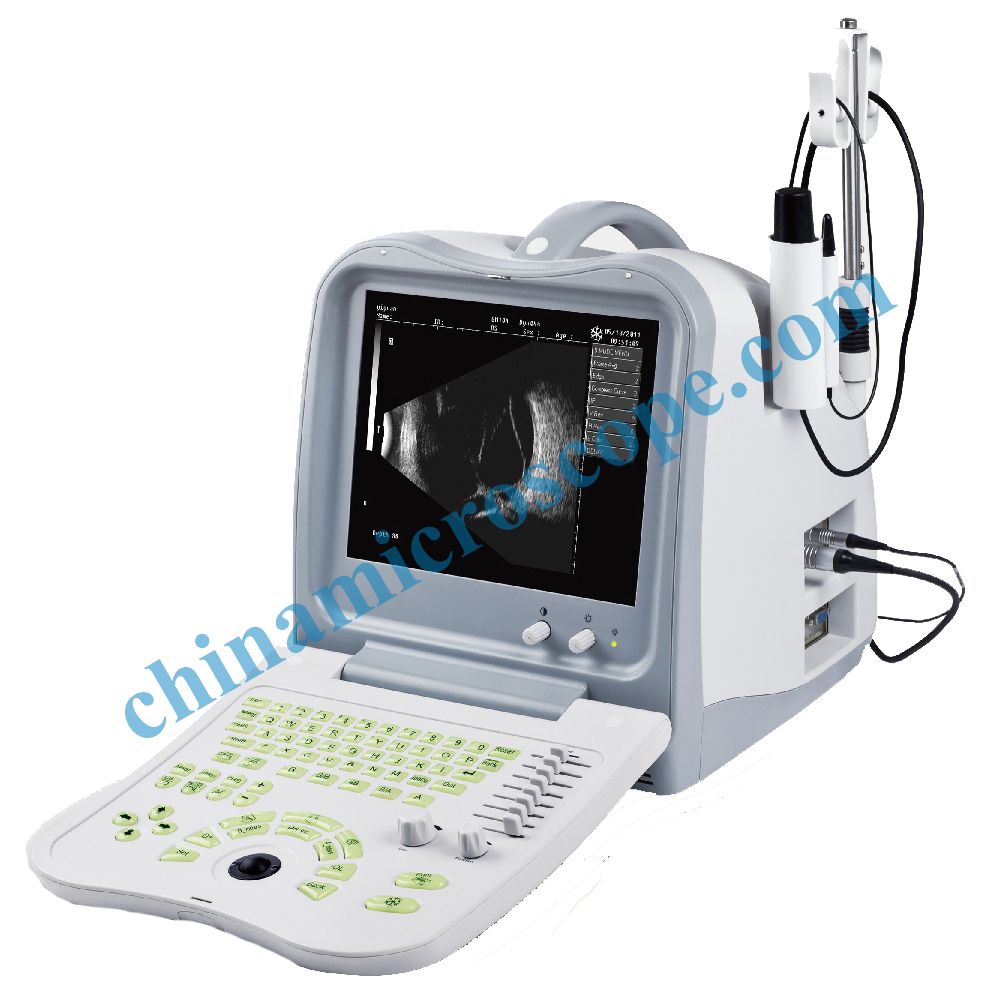

Home > Ophthalmic EquipmentsOphthalmic Ultrasonic Scanner > MIC-U5 ultrasonic scanner

Product parameters--General parameters:

Adopt ARM9 Embedded Control Systems, FPGA signal processing system and elaborate selected ultrasonic hardware system, make the machine more reliable.

10" high resolution CRT monitor, image clear and exquisite.

Menu operation, Language: Chinese/English.

Double probe sockets: A mode probe: 10MHz, imported probe with fixation light; B mode probe: 10MHz, imported transducer.

Preset items:

a)System setting (hospital name, mode selection, date/time and its format, probe protection time, help, keyboard sound etc.)

b)IOL setting

e)Network setting, DICOM3.0

f)Password setting

g)Software upgrade

Display: B, B/B,4B,B/A, A single-point measurementunder A mode, five-point measurementunder A mode.

Gains range: 0--120dB.

Dynamic range: 30-100dB, visual and adjustable.

Gray: 256.

Intelligent TGC adjustment: 8 segments.

Build-in D disk: 4GB, save mass images, reports, etc.

Report function: print screen, IOL report, case report with picture, etc.

Two USB ports, support for large capacity U disk (support for document management/software upgrades/one-key storage), and laser printer directly print various images and report.

Dual-mode TV output: PAL/NTSC, connecting to video recorder and ultrasonic working station.

DICOM3.0 network port, realizing network transmission easily.

Power supply : AC110/230V -15%~+10(self-adaptation supply voltage) 60/50Hz±1Hz.

Net weight:10kg.

Dimension: 400×280×325mmlength x width x height.

A scan parameter:

Measuring range:A five-point measurement:0-36mm; A single-point measurement: 0-72mm(including delayed depth).

Measuring accuracy: ±0.05mm.

Measuring parameter: ACD, LENS, axial length, Vitreous body Length, corneal thickness(immersion mode).

Eye mode: normal/aphakia/dense cataract/various IOL eyes.

Measuring Mode: Contact and Immersion, automatic and manual.

Calculation: std. deviation, average, automatically measure 8 groups and average, accompany waveform, results correctable.

Measurement methods: A single-point measurementunder A mode; five-point measurementunder A mode.

IOL Formula: SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS, any of two groups can control display. Calculate IOL, DEM, DAM, REEF, etc. And long term save 100 groups of measurement results of A scan.

A single point measurement

Magnification: ×1.0,×2.0,x4.0.

Display Depth: 036mm , delayed depth: 0--36mm.

B scan parameter:

Scan mode: High accuracy stepping Sector, motor-powered.

Scan Angle: 53°.

Display Depth: 088mm(incl.delayed depth).

Delayed depth: 25--32mm.

Gray: 256.

Frame frequency: 30frames/s.

depth seletion:8.

Frame correlation: 4.

Edge enhancement:4.

Compression Curve: 8.

Post-processing: 8.

Eight Pseudo colors: 8 kinds (incl B/W).

100 frames permanent image storage.

Cine loop: 256 frames, can measure the playback image.

Disk management.

General Measurement: multi-electronic-rule to measure distance, circumference, area(trace method, ellipse method),volume (ellipse method), angle , histogram, profile , stenosis and curvature etc.

Standard configuration:

main unit: 1pc

10MHz mechanical sector B probe: 1 pc

A probe, 10MHz : 1 pc

Foot switch: 1pc

Optional configuration:

Trolley

Video recorderP93W-S

Laser printer(Specified models :HP laser jet 1020, HP laser jet 1022, HP Laser jet P1007, HP laser jet P1008




Full digital technology, clearer image quality.

10" CRT monitor, progressive scanning without sparkle.

Back-lit silica gel keyboard, photoelectric trackball and encoder, easy to operate.

Menu operation , Language: Chinese/English.

Display mode:B,B/B,4B, B/A, A single-point measurementunder A mode, five-point measurementunder A mode.

Report function: print screen, IOL report, case report with picture, etc.

Eight Pseudo colors (incl B/W).

Cine loop: 256 frames, can measure the playback image.

Build-in D disk: 4GB, massively save data, images, reports, etc.

Two USB ports, support large capacity U disk (support document management/software upgrades/one-key storage), and laser printer directly print various images and reports.

DICOM3.0 network port, realizing network transmission easily.

IOL Formula: SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS, any of two groups can control display. Calculate IOL, DEM, DAM, REEF, etc. And long term  save 100 groups of measurement results of A scan.

B mode interface

Five-point measurement

single-point measurement

2 kind of reports



eight pseudo colors

port
