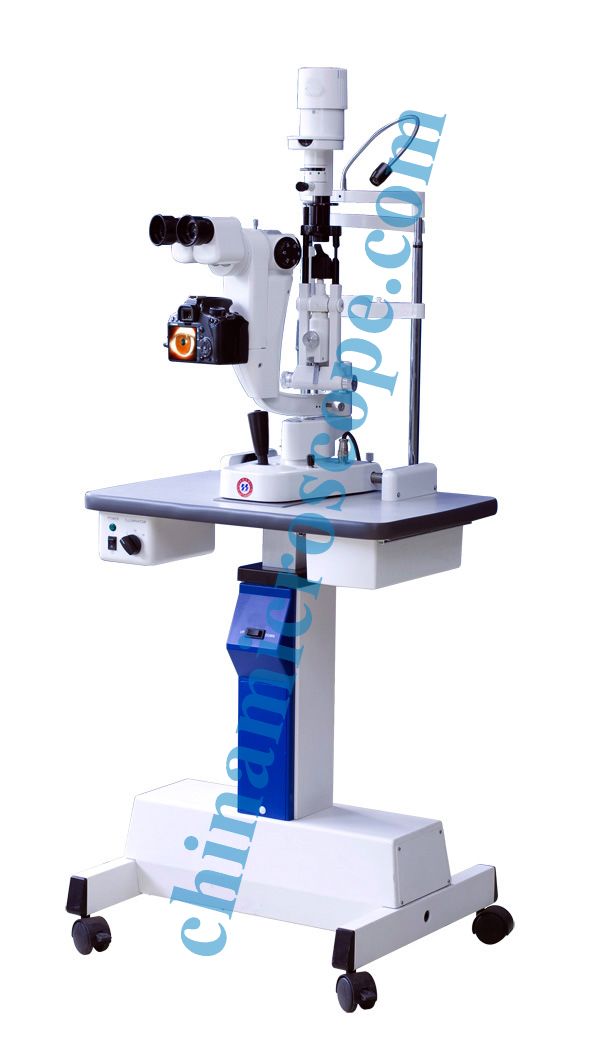

Characteristics:
·Single Lens Reflex, which is used as the professional image collecting medium, is the best choice for the ophthalmic shooting for its sensitive capture to the light and color and the complete adjusting functions.
·Real time dynamic display. The camera could capture clearer images benefiting from the examination process is displayed on the 3 inches LCD at the real time.
·18 megapixels could clearly provide all the details and meet the harsh requirement to the image.
·Special designed background illumination
·Photo easily taken by the button on the joystick
·Patient’s information, examining records and pictures of sicking part can be reserved by setting the data base.
·To measure and mark the sicking part and print the complete case report.
·Galilean stereoscopic microscope provides the practitioners great third dimension and large-angle observation.
·Imported Schott optics fromGermanyreduces optical distortion, increases clarity and depth of focus.
·All the optical lens are moisture proof, mildew proof and anti-reflected treated.
·Osram bulb provides the low heating, high brightness and even lighting.
·The slit lamp could not only clearly observe the ocular surface and anterior segment, but also the posterior lens capsule, and even film the fundus nidus with the help of the pre-set lens.
Basic Specifications:
|
Microscope Type |
Galilean stereoscopic microscope |
|
Objective Magnification |
Five-step Drum Magnification |
|
Eye Piece |
12.5X |
|
Magnifications (Field of View) |
6 x (Æ33mm) 10x(Æ22.5mm) 16x (Æ14mm) 25´ (Æ8.8mm) 40´(Æ5.5mm) |
|
Pupil Distance |
45 mm~75 mm |
|
Diopter Adjustment |
-5D~+3D |
|
Slit Width |
0mm～14mm adjustable(slit is round when the slit width is14mm) |
|
Slit Height |
1mm～14mm adjustable |
|
Diameter of Light Spot |
φ14mm、φ10mm、φ5mm、φ2mm、φ1mm、φ0.2mm |
|
Slit Angle |
0°～180° adjustable |
|
Slit Inclination |
5°、10°、15°、20° |
|
Filter |
Heat Absorption, Grey, Red Free, Cobalt Blue |
|
Illumination Bulb |
12v30w Halogen Bulb |
|
Collecting Medium |
Digital Single Lens Reflex |
|
Illumination Type of Taking Picture |
Background Illumination |
|
Input Voltage |
AC220V±22 V；AC110V±11 V |
|
Electrical Safety Standard |
Executive Standard IEC601－1,Class I,Type B |
|
Optional Accessories |
Applanation Tonometer、Measuring Eye Piece ,Trihedron lens、Gonioscope、Funduscope、Aspheric Lens |
Special Specifications:
|
Model |
YZ5S |
YZ5T |
|
Dynamic Display |
LCD Screen Real-time Dynamic Display |
LCD and Computer Screen Real-time Dynamic Display |
|
Table |
YT2A |
YT2GA |
|
Packing Volume |
720mm´495mm´480mm |
720mm´495mm´480mm |
|
Total Weight |
24Kg（Table Not Included） |
24Kg（Table, Tabletop and Computer Not Included） |
|
Processing Function |
None |
Length, Angle, AreaMeasuring, Arrowhead, Word Adding, Image processing. |
