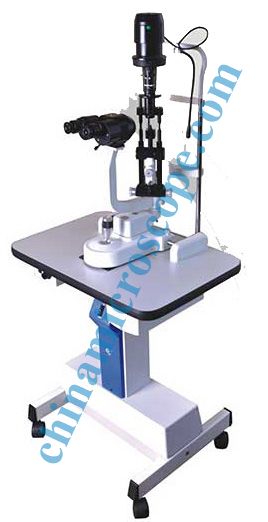

Universal slit lamp with three step magnification 10x, 16x, 25x
The slit can be inclined
Excellent optical performance gives clearer optical image and broader field of view
Two types for choice: 14mm aperture or 9mm aperture
Specification
|
Microscope type |
Converging stereo microscope |
|
Eyepiece |
10x, 16x |
|
Magnification and field of view |
10×(φ23mm), 16×（φ14mm）、25×（φ9mm) |
|
Interpupillary adjustment |
55mm ~ 75mm |
|
Diopter adjustment |
+8D ~ -8D |
|
Slit width |
0 ~ 14mm adjustable |
|
Slit angle |
0°-180°adjustable |
|
Slit length |
0 ~ 14mm adjustable |
|
Slit inclination |
5°, 10°,15°, 20° |
|
Aperture diameter |
Ф9mm 、Ф8mm、 Ф5mm 、 Ф3mm 、Ф2mm 、Ф0.2mm or Ф14mm 、Ф10mm、 Ф8mm 、 Ф5mm、 Ф3mm、Ф2mm 、Ф0.2mm |
|
Filter |
Heat absorption, Grey, Red free, Cobalt blue |
|
Bulb |
12V 30W or 12V 50W halogen lamp |
|
Input voltage |
110V/220V AC |
|
Frequency |
50H/60Hz |
|
Power consumption |
80VA |
|
Optional applanation tonometer |
|
|
Gross weight |
25kg |
|
Net weight |
22kg |
|
Package dimension |
770mm（L）×620mm（W）× 380mm（H） |
