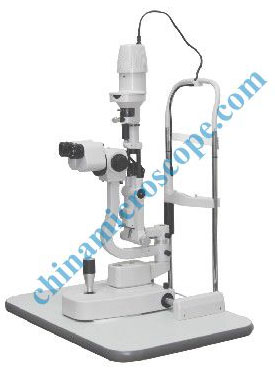

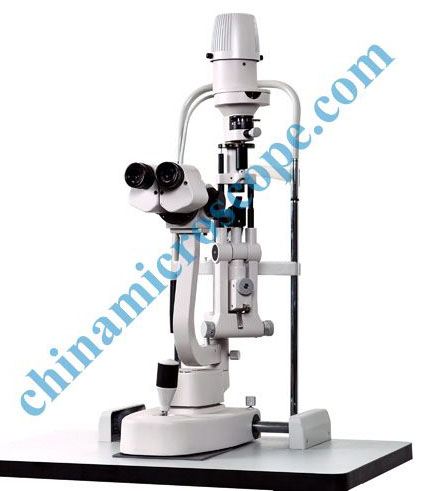

AC-powered slit lamp biomicroscope is intended for use in eye examination of the anterior eye segment, from the cornea epithelium to the posterior capsule. It is used to aid in the diagnosis of diseases or trauma which affects the structural properties of the anterior eye segment.
Main Features
Parallel type, Galileo system
Haag-Streit type slit lamp with broad beam, wide field and high depth of field
3 step magnification
Interface for laser and applanation tonometer reserved.
|
This series slit lamp produced by MIC TECH gives the wonderful optical and mechanical performance .Provide most clearly and stereoscopic images for ophthalmologist and optician. |
|
|
Microscope Type |
Parallel Galilean |
|
Magnification changer |
Revolving the drum |
|
Eyepiece |
12.5X |
|
Total magnification |
10X 16X 25X |
|
Diameter of Vision field |
φ23 φ14 φ8.7 (mm) |
|
Pupil adjusting range |
54 mm~82 mm |
|
Diopter adjustment |
-7D ~ +7D |
|
Slit image width |
0mm～14mm continuous |
|
Slit image length |
1mm～14mm continuous |
|
Diameter of aperture |
φ14mm、φ10mm、φ5mm、φ3mm、φ1mm、φ0.2mm |
|
Slit angle |
0～180 Rota table continuous |
|
Illumination tilting |
5、10、15、20 totally 4 step |
|
Filter |
Heat absorption, Grey, red free(Green), Cobalt blue |
|
Illumination |
12v, 30w halogen bulb |
|
Fixation |
Red LED 3.5V |
|
Power |
Input voltage 100~240V Input frequency 48~62 Hz Input power 60VA |
|
Package Dimension |
740*650*450mm total25kg Carton |
