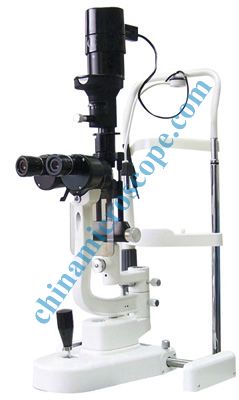

This is a new product to fill the optical requirements, which is easy to operate and medium-priced.
Characteristics:
·Two-step magnifications: 10×、16×
·All the Optical lenses are moisture proof, mildew proof and anti-reflected treated.
·Excellent optical performances.
·Convenient and compact.
Specifications:
|
Microscope Type |
Converging stereoscope microscope |
|
Objective Magnification |
Two Steps Magnifications |
|
Eye Piece |
10x |
|
Magnifications（Field of View） |
10x（φ18mm）、16x（φ14.5mm） |
|
Pupil Distance |
55mm～82mm |
|
Diopter Adjustment |
±6D |
|
Slit Width |
0mm～9mm adjustable(slit is round when the slit width is9mm) |
|
Slit Height |
1mm～8mm adjustable |
|
Aperture of Diameter |
φ9mm、φ8mm、φ5mm、φ3mm、φ2mm、φ1mm、φ0.2mm |
|
Slit Angle |
0°～180° adjustable |
|
Slit Inclination |
5°,10°,15°,20°,four steps adjustable |
|
Diameter of Light Spot |
φ9mm、φ8mm、φ5mm、φ3mm、φ2mm、φ1mm、φ0.2mm |
|
Filter |
Heat Absorption、Grey、Redfree、Cobalt Blue |
|
Illumination Bulb |
12V/30W Halogen Bulb |
|
Input Voltage |
AC220V±22 V ;AC110V±11 V |
|
Electrical Safety Standard |
Conform to Standard:IEC601-1,Class I,Type B |
|
Packing Volume |
720mm ´495mmx480mm |
|
Total Weight |
23Kg |
|
Optional Accessories |
R type , T type Applanation Tonometer、 Measuring Eye Piece、 Trihedron Lens、Gonioscope、Funduscope、Aspheric Lens |
