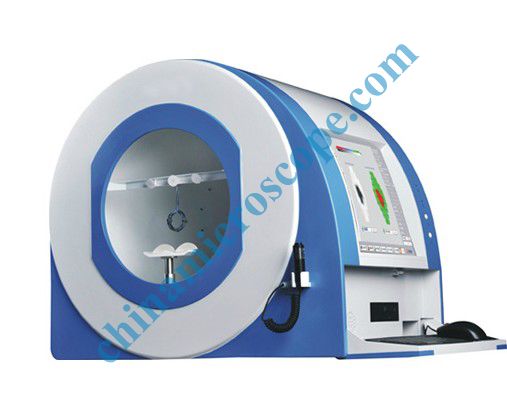

MIC-201CComputer integrated & Touch screen Operation System
MainFeatures

Designed on Windows XP platform, MIC-201 series fully automatic computerized perimeter  integrates optics, mechanics and electronics, and absorbs the advantages of high-quality products in the word. It has provided scientific inspection method for the clinical glaucoma, fundus diseases, visual pathway injury and optical nerve disease with its advanced configuration, impeccable software system, advanced algorithm and analysis software.

Performance of Perimeter Scanner

Radius of stimulator:300mm

Stimulating source of LED: Two visual lights: yellow and red.fixing spot is green.

Stimulating intensity:0-1000asd and have 31 degree to adjust

Rear projection,and the diameter of light spot is2mm

The number of stimulating and the stimulating time:

A.391 spots;

B: Stimulating retention time: 200ms-2000ms,continuously adjustable;

C: Stimulating spacing interval: 200ms-2000ms,continuously adjustable;

Window of eye-position tracking: White-black CCD, directly tracking the   testing eye

 0°~90°scope can be tested in one time

Voice prompt function available

Background light intensity:31.5asd(controlled)

The trip of chin rest: up-down: ≥50mm; right-left ≥28mm;

Examination Ways:

Threshold test; Fast threshold; Full threshold; Qualitative test

Test Range/Scope:





Regular project

C30

Central Field Test

C46

ParaCentral Field Test

P30-60

Peripheral Field Test

Macular

Macular Zone test

Glaucoma

Glaucoma test

C60

060°test









Specific project

F0-90

090°user define test

User

self define test (quadrant available)

Diabetes

Diabetestest

Neurology

Neurology test

Nasal step

Nasal step test

CLV

Central Low Eyesight test

Ptosis

Ptosis test

Blindspot

Blind spot zone test

Temporal

Temporal side zone test
