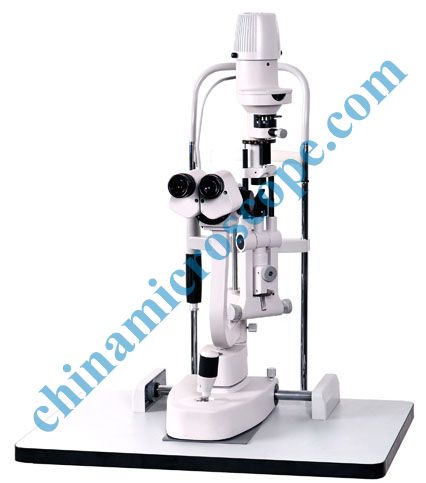

AC-powered slit lamp biomicroscope is intended for use in eye examination of the anterior eye segment, from the cornea epithelium to the posterior capsule. It is used to aid in the diagnosis of diseases or trauma which affects the structural properties of the anterior eye segment.
Main Features

Parallel type, Galileo system

Haag-Streit type slit lamp with broad beam, wide field and high depth of field
5 step magnification

Interface for laser and applanation tonometer reserved.

This series slit lamp produced by MIC TECH gives the wonderful optical and mechanical performance. Provide most clearly and stereoscopic images for ophthalmologist and optician.

Microscope Type

Parallel Galilean

Magnification changer

Revolving the drum

Eyepiece

12.5X

Total magnification

6X  10X  16X  25X  40X

Diameter of Vision field

φ37  φ23  φ14  φ8.7  φ5.7(mm)

Pupil adjusting range

54 mm~82 mm

Diopter adjustment

-7D ~ +7D

Slit image width

0mm14mm continuous

Slit image length

1mm14mm continuous

Diameter of aperture

φ14mmφ10mmφ5mmφ3mmφ1mmφ0.2mm

Slit angle

0180 Rota table continuous

Illumination tilting

5101520 totally 4 step

Filter

Heat absorption, Grey, red free(Green), Cobalt blue

Illumination

12v, 30w halogen bulb

Fixation

Red LED 3.5V

Power

Input voltage  100~240V

Input frequency 48~62 Hz

Input power 60VA

Package Dimension

740*650*450mm   total25kg  Carton
