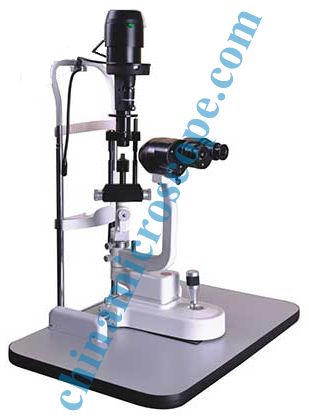

Basic slit lamp with two step magnification: 10x, 16x
All the lens are multi-coated, mildew proof and anti-reflection
Converging optical path: excellent optical performance gives a super clear image
Specification
|
Microscope type |
Converging stereo microscope |
|
Eyepiece |
10x |
|
Magnification and field of view |
10×(φ23mm), 16×（φ14mm) |
|
Interpupillary adjustment |
55mm ~ 75mm |
|
Diopter adjustment |
+8D ~ -8D |
|
Slit width |
0 ~ 14mm adjustable |
|
Slit angle |
0°-180°adjustable |
|
Slit length |
0 ~ 14mm adjustable |
|
Slit inclination |
5°, 10°,15°, 20° |
|
Aperture diameter |
Ф10mm、 Ф8mm 、 Ф5mm、 Ф3mm、Ф2mm 、Ф0.2mm |
|
Filter |
Heat absorption, Grey, Red free, Cobalt blue |
|
Bulb |
12V 30W or 12V 50W halogen lamp |
|
Input voltage |
110V/220V AC |
|
Frequency |
50H/60Hz |
|
Power consumption |
80VA |
|
Gross weight |
25kg |
|
Net weight |
22kg |
|
Package dimension |
770mm（L）×620mm（W）× 380mm（H） |
