Microscope |
Microscope type |

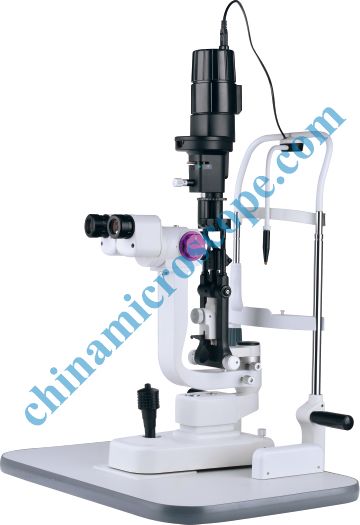

Galilean stereoscopic microscope |
|
Magnification selection |
5 steps by drum rotation |
|
|
Eyepiece |
12.5x |
|
|
Magnification and field of view |
10×（φ22.5）、16×（φ14mm）、25×（φ8.8mm） |
|
|
Interpupillary adjustment |
50mm ~ 82mm |
|
|
Diopter adjustment |
+5D ~ -5D |
|
|
Base |
Side shift |
110mm |
|
Depth shift |
90mm |
|
|
Up-down shift |
30mm |
|
|
Chin rest |
Up-down |
80mm |
|
Fixation target |
Red LED |
|
|
|
Handrail |
|
|
Illumination system |
Slit height |
0 ~ 14mm continuous ( when 14mm, slit becomes a circle) |
|
Slit angle |
0︒ ~ 180︒ adjustable |
|
|
Slit inclination |
0︒ ~ 23︒ |
|
|
Diameter of light spot |
Ф14mm 、Ф10mm、 Ф5mm 、 Ф3mm 、Ф2mm 、Ф1mm 、Ф0.2mm 、Ф1mm和Ф1-14mm continuous |
|
|
Filter |
Heat absorption, Grey, Red free, Cobalt blue |
|
|
Bulb |
12V 50W halogen lamp |
|
|
Power |
Input voltage |
110V/220V AC |
|
Frequency |
50H/60Hz |
|
|
Power consumption |
68VA |
|
|
Weight and size |
Gross weight |
18kg |
|
Net weight |
16kg |
|
|
Package dimension |
690mm（L）× 440mm（W）× 420mm（H） |
