Professional collection media
The instrument SLR camera as a collection media, real time dynamic display, clear and vivid images, fast image acquisition.
Camera shortcut
External shooting device spotted lesions touch of a capture clear picture immediately.
Powerful image processing functions
Measure length, area, angle, gray scale, curvature, label the lesions in the picture, and add text.
High definition image
This instrument is capable of shooting photos of up to 18 million pixels, and offers up to 40X magnification, completely show the details, to meet the demanding requirement of the medical image, enable the lesions to be show more clearly.
A diagnostic aid
Provide a variety of common eye checkup mode parameter set to improve examination efficiency
With medical records management and output.
Case report can be saved, manage, print

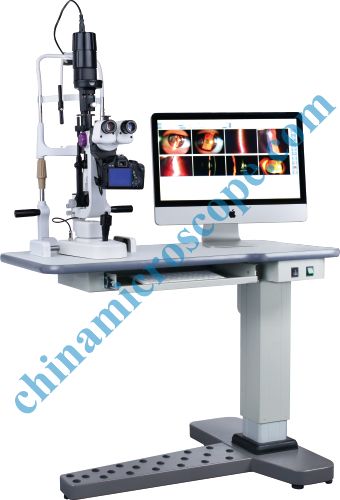

Configuration:

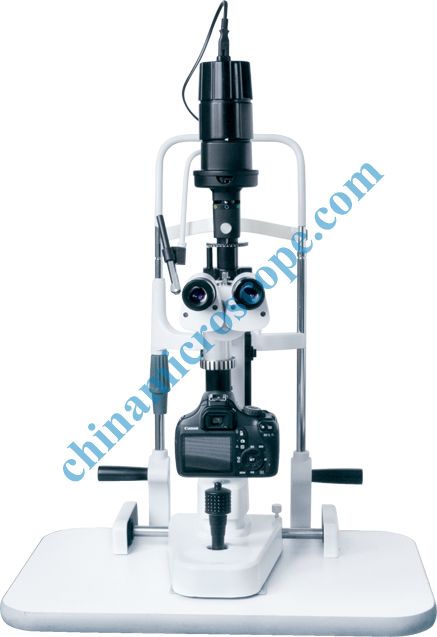

Slit lamp

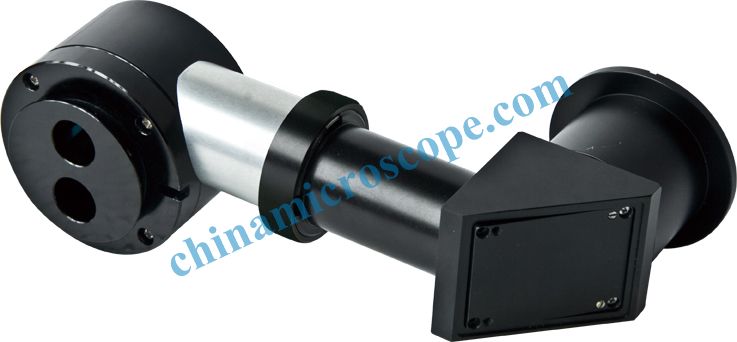

Camera interface (splitter/adapter)

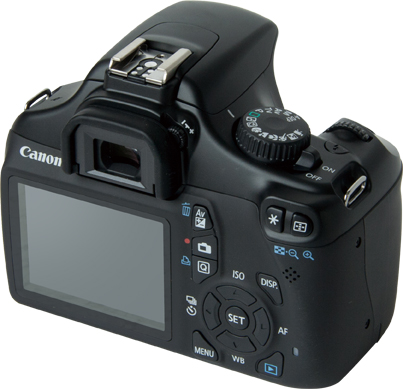

Professional SLR camera (standard configuration does not contain a camera lens)
Bolan slit lamp image processing system
Computer (optional)
High-resolution ink-jet printer (optional)
|
Microscope |
Microscope type |
Galilean stereoscopic microscope |
|
Magnification selection |
5 steps by drum rotation |
|
|
Eyepiece |
12.5x |
|
|
Magnification and field of view |
6×（φ33mm）、10×（φ22.5）、16×（φ14mm）、 25×（φ8.8mm）、40×（φ5.5mm） |
|
|
Interpupillary adjustment |
50mm ~ 82mm |
|
|
Diopter adjustment |
+5D ~ -5D |
|
|
Base |
Side shift |
110mm |
|
Depth shift |
90mm |
|
|
Up-down shift |
30mm |
|
|
Chin rest |
Up-down |
80mm |
|
Fixation target |
Red LED |
|
|
Illumination system |
Slit height |
0 ~ 14mm continuous ( when 14mm, slit becomes a circle) |
|
Slit angle |
0︒ ~ 180︒ adjustable |
|
|
Diameter of light spot |
Ф14mm 、Ф10mm、 Ф5mm 、 Ф3mm 、Ф2mm 、Ф1mm 、Ф0.2mm 、Ф1mm和Ф1-14mm continuous |
|
|
Filter |
Heat absorption, Grey, Red free, Cobalt blue |
|
|
Bulb |
12V 50W halogen lamp |
|
|
Power |
Input voltage |
110V/220V AC |
|
Frequency |
50H/60Hz |
|
|
Power consumption |
68VA |
|
|
Weight and size |
Gross weight |
18kg |
|
Net weight |
16kg |
|
|
Package dimension |
690mm（L）× 440mm（W）× 420mm（H） |
