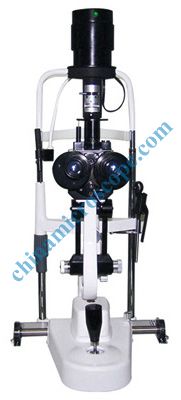

MIC-LL5E with excellent performance and high quality is found very popular in the market.
Characteristics:
·Advanced converging stereoscopic microscope.
·Clearer optical image and broader field of view.
·Optical lens are all moisture proof, mildew proof and anti-reflection.
·Equipped with Trihedron lens 、Gonioscope、Funduscope.
·Three-step magnifications for eyepiece are optional:10x,16x,25.5x.
For free: Trihedron lens 、Gonioscope、Funduscope
MIC-LL5E is a basic type.
MIC-LL5E-Ⅲ is equipped with double-teaching tube.
Specifications:
|
Type |
Converging stereoscope |
|
Magnifications |
Two-step magnifications |
|
Eyepiece |
10x,16x |
|
Magnification Ratio（Field of View） |
10x（φ18）、16x（φ14.5） 16x（φ11.25）、25.6x（φ9） |
|
Range ofPupil Distance |
10x：55mm～82mm 16x：51mm～78mm |
|
Adjustment of Diopter |
10x：±8D 16x：±10D |
|
Slit Width（mm） |
0～9 adjustable（slit is round when slit width is9mm） |
|
Slit Height（mm） |
1～8 adjustable |
|
Slit Angle |
0-180°adjustable |
|
Slit Inclination |
0-23° |
|
Aperture Diameter（mm） |
φ9、φ8、φ5、φ3、φ2、φ0.2 |
|
Filter |
Heat absorption, grey, redfree, cobalt blue |
|
Illumination Bulb |
12V/50W halogen bulb |
|
Optional Accessories |
Applanation Tonometer(T type) |
