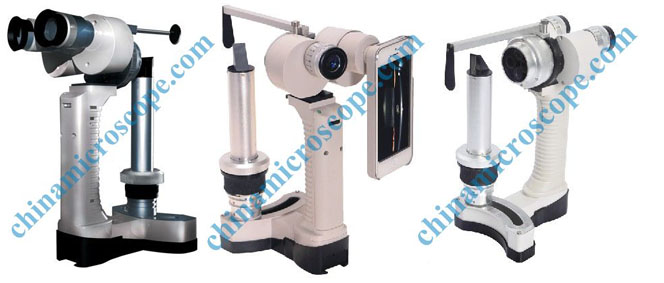

Model |
MIC-6L |
MIC-6M |
MIC-6H |
|
Microscope Type |
Converging microscope |
||
|
Eyepiece |
High eye point |
||
|
Standard definition≧1800.N line pair/mm, N=0.06 |
|||
|
Diameter of nominal field of vie |
10X：10mm；16X：6mm；25.6X：4mm |
||
|
Objective |
1.0X |
1.0X、1.6X |
1.0X、1.6X |
|
Eyepiece |
10X |
10X |
10X、16X |
|
Magnification |
10X |
10X、16X |
10X、16X、25.6X |
|
Working distance |
81mm |
||
|
Interpupillary |
45mm~72mm |
||
|
Diopter |
-8D~+8D |
||
|
Slit width |
0~12mmcontinuous |
||
|
Slit Height |
12mm |
1-12mm |
1-12mm |
|
Light spot diameter |
12mm |
ф0.2mm，ф1mm，ф5mm，ф12mm |
|
|
Filter |
Heat Absorption, Grey, Red Free, Cobalt Blue |
||
|
Illumination |
High brightness LED |
||
|
Illuminance |
≧30000lux |
||
|
LED voltage |
d.c.3V |
||
|
Battery |
Li-ion battery d.c.7.4V/680mAh, fully charged can last 5-6 hours |
||
|
Dimension |
169.5mm×109.5mm×228.5mm |
||
|
Weight |
≤700g(including battery ) |
||
