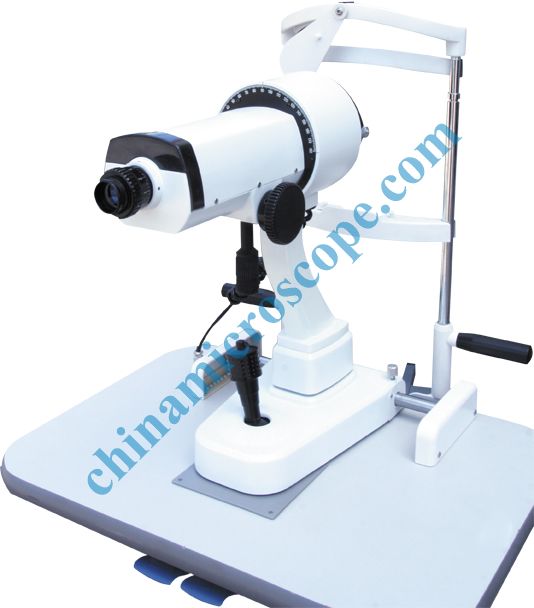

MIC-03 Keratometer is easy to align mire images.
All readings are thus placed in one field of view, greatly simplifying and speeding up measurements. Example: the diagrams on the right show the mire images in perfect focus and without astigmatism, with radius of curvature 8.0mm and vertex(V) and horizontal (H ) axes
LED lamp applied which have long life time, save energy and no heat.
|
Scale |
Corneal radius of curvature |
5.5 to 12mm |
|
Minimum reading |
0.01mm |
|
|
Corneal refractive power |
31.00 to 61.00 dptr. |
|
|
Minimum interval reading |
0.125 dptr. |
|
|
Axis of corneal astigmatism |
0 to 180° |
|
|
Minimum reading |
1° |
|
|
Diopter adjusting scale |
0 to ±5 dptr. |
|
|
Illumination |
LED |
|
|
Power |
AC 110V/60HZ or 220V/50HZ |
|
|
Dimension |
330(L) × 280(W) × 430(H)mm |
|
|
Weight |
18kgs |
|
