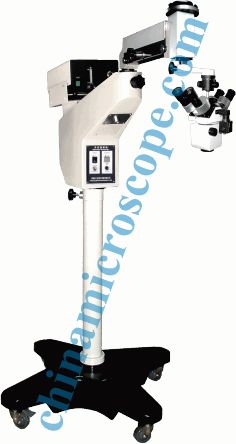

About this product:

1. Suitable to orthopedics, the hand surgical department, the burn reshaping branch, the spinal column surgical department and so on the microsurgery surgery.

2. Main technical specification:

Work distance:200mm、250mm、300mm

Enlargement percentage:4X-25X  Electrically operated continuously changes doubles

Changes doubles the ratio: 7.8 : 1

Field of vision diameter: Ø9.5mm--Ø95mm

Depth of field scope:4mm--64mm

Resolution:≥100line is right/mm(25X Under condition )

Eyepiece: 12.5X /27.5mm Wide-angle Eyepiece

Interpupillary adjustment scope: 55mm--75mm

Visual degree adjustment scope: ± 5D

Most greatly stretches out the distance: 1200mm

Fluctuation scope:    Manual coarse adjustment scope  400mm，Electrically operated focusing fluctuation scope :40mm

Electrically operated focusing speed: 1mm/s

Microscope operational height:    850mm-1320mm （Big objective lens to ground ）

Manual adjusts:  Around microscope angle of pitch ±35º; About tilt angle:±40º

Cold photo source: 300wThe xenon lamp, the coaxial brightness may adjust the illumination, satisfies the depth portion surgery to request.

Spare cold photo source: 50W The bromine-tungsten lamp, the coaxial illumination, satisfies the common surgery to request.

Power source: AC220v/50hz    Total power loss ≤500W

Dead weight: 130Kɡ     This type characteristic:

1. Two person both eyes coaxial path of rays surgery microscope;

2、Continuously changes doubles, greatly changes doubles the ratio 7.8 :1;

3. High clear image formation three-dimensional optical system, system solution: 25XWhen100Line/ mm;

4. dielectric multilayer optical spectro-photometry system, the main deputy mirror the same image quality, clear and bright, bright color, with color CCD camera can be external microsurgery imaging workstation;  unique spherical universal arm structure, and ensuring universal nose high angle adjustment, choose the best operating position.

5. Is in sole possession of ball the structure, guaranteed the nose great angle ten thousand approaches the adjustment, the choice best operation position.

6. Decides the work piece: Installs the CO2 laser adapter and the high efficiency CO2 single model laser generator equipment, accurate lyunmistakably synchronization carries on the laser in the three-dimensional micro enlargement field of vision micro to cut the surgery, this instrument specially suits the vertebraintervertebraldisc surgery
