MIC dental microscopes are used by more dentists around the world. The 5-step MIC-SM2300 microscope has been designed specifically for the dentist.

180 inclinable binocular

Inclinable binocular features widest articulation range of any binocular for operator comfort.

Wide field Eyepieces

The wide field eyepieces are screwed in to the tube and have integrated eyecups with step less adjustment. The eyepieces are excellently suited for surgeons who wish to work with their eyeglasses on.

Rotatable Handgrip

Rotatable Handgrip can be adjusted to user's preferred position and enable the user to easily place the OMS in the desired position.

Focusing Objective Lens

Easy operation. A variety of working distances are available.

Fine focusing

Adjust the focus to your personal needs, without moving the microscope.

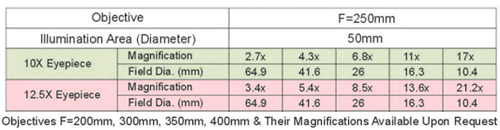

5-step Magnification Changer

* e.g. with f=250mmlens and 12.5x eyepieces:

with selected components, the above magnification range can be shifted up or down.

Brightness control knob

Allows you to easily adjust the light intensity for any clinical situation.

Yellow and green integrated Filter

Yellow filter: Prevents premature curing of composite.

Green filter: Improves detail visibility with a strong blood supply.

German Optical Glass Inside

The lenses inside the microscope are made by Schott ® Optical Glass imported fromGermany. All lenses are multi-coated and anti-reflective, combining with infinity corrected optical system & brilliant aprochromatic optics, which offers superb optical performance, including:

1. High resolution

2. Real 3-Dimensional Precise Image Reproduction

3. Large Depth of field

4. Wide Field of View

5. Good Contrast

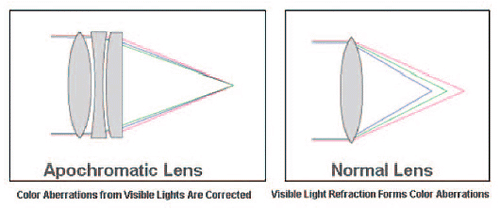

Apochromatic optics design could correct the chromatic aberration of three types of colored light effectively. It ensures the reduction and saturation of image color and improves the resolution, contrast and viea depth of image.

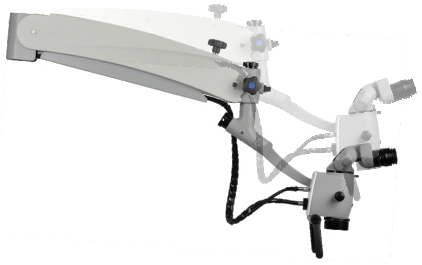

Pendulum Function(Option)

With 0-180° Inclinable Binocular, Ergonomic Angle Rotation Device or Extension Angle Rotation Device and inclinable head, the operator's posture is more natural and straight. you are able to maneuver the microscope to a position that allows you to keep good , healthy posture and still observe the patient. This improved posture can eliminate the back and neck pain.

Halogen Illumination Integrated

Two 150W Halogen bulbs with "change on the fly lamp selector.

Should a lamp fail during an examination, this feature allows a quick change from one lamp to another resulting in an uninterrupted procedure.

Counter-balanced pantographic arms

With hanging Counter-balanced pantographic arms design and tension control adjustable connection arms, the optical head can be easily maneuvered at any position and stopped where you wanted in its working range. All maneuvers can be done by one hand with a little force.

A special switch is fitted into the arm. The lamp will keep " on" when the optical head moves in the normal working ranged and the lamp will turn off automatically while the optical head moves out of the normal working range.

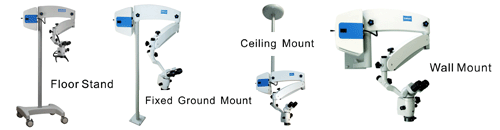

Mounting Options

We have 4 different options to choose from.
