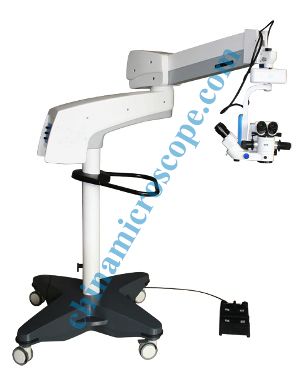

Electromagnetic lock and balance technology of the microscope ensure the easy operation and stable orientation.

Characteristics:

• Electromagnetic lock and balance technology ensure the easy operation and stable orientation.

• Cold light source is bright and even enough, which does no harm to tissues.

•Germanyimported Schott optics andApochromatic technology ensure clear field of view and high resolutions.

• Aspheric and BIOM added on objective could meet the demands of vitreo-retinal operations.

•The equipment is applied not only for ophthalmic operation, but also for neurosurgical, ENT, Cardio-Thoracic Surgical operations, etc.

•Optional accessories: oblique illumination, fundus aspheric lens and inversionBIOM lens.



Specifications:

Eye Piece Magnifications

12.5×/18B

Adjustable Diopter

±6D

Adjustable Range for Pupil Distance

55mm75mm

Magnifications for Main Microscope

4.6×27×zoom magnification

Diameter of Field

F46 F8.5mm

Magnifications for Assistant Microscope

6.2×9.3×14×

Objective Focus

f=200mm

Optional Objectives

f=250mm/300mm/350mm/400mm

Working Distance

195mm

Maximal Resolution

126LP/mm

Illumination Source

15V/150W,medical cold-reflection halogen lamp

Illumination Type

6°coaxial illumination,6°±2°coaxial illumination

Maximal Illumination

≥50000lx

Filter

UV&IR filter, yellow spot protection filter, redfree,GG435,GG475

Maximal Height for Microscope

1710mm

Reaching Radius of Arm

1320mm

AdjustableVerticalRange

710mm~1310mm

Fine Focusing Speed and Range

≤2mm/s,50mm

Speed for X/Y and Range

≤2mm/s ,50mm×50mm,

Arthrosis Fixation

Electromagnetic Lock

Input Voltage

AC220V±10%/ 50Hz±1HzAC110V±10% / 60Hz±1Hz

Power

480VA

Fuse

AC250V T5.0AL  (51S-050H)AC125V T10.0AL (51S-0100L)

Electrical Safety Standard

Executive to GB9706.1-2007Class I

Packing Volume

1.494m3,5cartons

Total Weight

302kg
