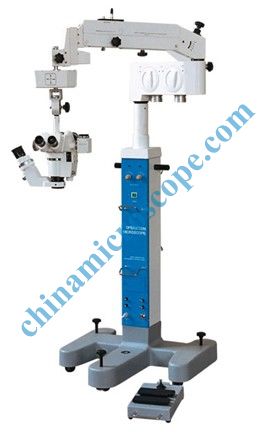

MIC-ZL6A family planning with a microscope, skin and reconstructive surgery surgical microscope,  hand surgical microscope, orthopedic surgical microscope,



1. A high-definition optical system

2. Double eyes with light road opponents mirror

3.Stepless electric continuous variable

4.The 4.X-Y plane mover

5. Balanced rack

6. Optional Teach mirror, digital camera and a CCD camera and a xenon lamp lighting



Feature

1. The instrument uses a continuous variable magnification optical system, clear imaging, stereology strong sense of the wide field of vision. Surgeon and vice knife doctor were observed at the same magnification.

2. The instrument has three large objective lens of different focal lengths, and thus has three different working distances, the surgery needs to be applied to a variety of different depths.

3. Lighting device using cold light source coaxial within the lighting system, for deep surgery.

4. Instrument rack using new balanced structure, high and low, left and right to adjust any one balance position, light and flexible operation, stable and reliable.

5. The optional xenon lamp, xenon lamp, halogen lamps arbitrary conversion and four spare bulb.



Options and Accessories

Unilateral optical hinge, monocular Teach mirrors, xenon lighting, digital camera interface, 1/3 inch CCD camera interface and a dedicated digital cameras, camcorders and expert surgical video image processing system.



Technical parameters

1. Double binocular magnification of the same scene, the same optical path with fixed 180 ° opponents mirror

2. Working distance: 200mm 250mm 300mm

3. Magnification: 5x ~ 25x electric continuous zoom or manual zoom can

4. Field of view diameter: Φ55 ~ Φ11mm

5. Eyepieces: 12.5x Φ27.5mm the Alf-type wide-angle eyepiece

6. Maximum illumination of up to 80000 ~ 120000Lx.

7. Head away adjustment range: 54 ~ 75mm

8. Diopter adjustment: ± 6D

9. Foot electric trim range: 40mm

10. Elevating coarse range: 500mm

11. Max Reach: 1200mm

12. Feet the control XY plane mover, the range of movement (front, left) 40mm, can be reset to zero.

13. Lighting: 150W/15V coaxial cold light source lighting (or 250W xenon lamp)

14. Power: 220V/50Hz
