MIC-SM2350 LED ENT Microscope Integrated LED illumination MIC dental microscopes are used by more dentists around the world. The 6-step MIC-SM2350 microscope has been designed specifically for the dentist. |
|
|
|
Integrated LED illumination 20W LED coaxial illuminator provides pure white color light similar to the sun light to show the real color. it not only avoids the trouble of changing bulbs, but also saves your cost for the spare bulbs and electric charge. |
|
|
6-step Magnification Changer * e.g. with f=250mmlens and 12.5x eyepieces:
|
|
|
Balancing system(Optional) This coupling offer ultra-light, ultra-smooth and perfect balance during positioning of the microscope or adding several accessories such as camcorder and digital camera. |
|
|
180 inclinable binocular Inclinable binocular features widest articulation range of any binocular for operator comfort. |
|
|
Wide field Eyepieces The wide field eyepieces are screwed in to the tube and have integrated eyecups with step less adjustment. The eyepieces are excellently suited for surgeons who wish to work with their eyeglasses on. |
|
|
Rotatable Handgrip Rotatable Handgrip can be adjusted to user's preferred position and enable the user to easily place the OMS in the desired position. |
|
|
Focusing Objective Lens Easy operation. A variety of working distances are available. |
|
|
Fine focusing Adjust the focus to your personal needs, without moving the microscope. |
|
|
Brightness control knob Allows you to easily adjust the light intensity for any clinical situation. |
|
|
Yellow and green integrated Filter Yellow filter: Prevents premature curing of composite. Green filter: Improves detail visibility with a strong blood supply.
|
|
|
German Optical Glass Inside The lenses inside the microscope are made by Schott ® Optical Glass imported fromGermany. All lenses are multi-coated and anti-reflective, combining with infinity corrected optical system & brilliant aprochromatic optics, which offers superb optical performance, including: 1. High resolution 2. Real 3-Dimensional Precise Image Reproduction 3. Large Depth of field 4. Wide Field of View 5. Good Contrast

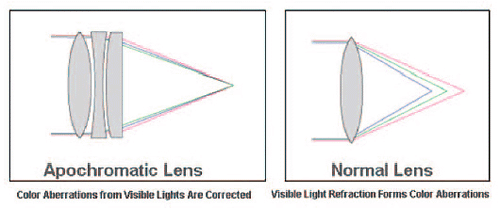

Apochromatic optics design could correct the chromatic aberration of three types of colored light effectively. It ensures the reduction and saturation of image color and improves the resolution, contrast and viea depth of image. |
|
|
Pendulum Function(Option) With 0-180° Inclinable Binocular, Ergonomic Angle Rotation Device or Extension Angle Rotation Device and inclinable head, the operator's posture is more natural and straight. you are able to maneuver the microscope to a position that allows you to keep good , healthy posture and still observe the patient. This improved posture can eliminate the back and neck pain.
|
|
|

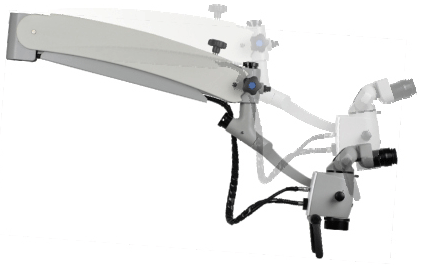

Counter-balanced pantographic arms With hanging Counter-balanced pantographic arms design and tension control adjustable connection arms, the optical head can be easily maneuvered at any position and stopped where you wanted in its working range. All maneuvers can be done by one hand with a little force.
A special switch is fitted into the arm. The lamp will keep " on" when the optical head moves in the normal working ranged and the lamp will turn off automatically while the optical head moves out of the normal working range |
|

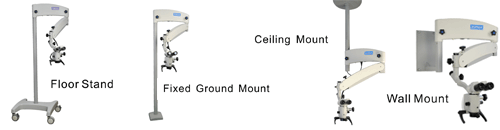

Mounting options: |
|
* MIC LED Illumination, supplies bright, white and shadow-free light,>20,000 hours lifetime *
|
Magnification system * 6-steps manual magnification changer * Six click stop positions y=0.33x,0.5x,0.8x,1.22x,2.0x, 3.0x; |
|
Tube (Optional) * 45 deg inclined binocular tube, f=170mm * 0-180 deg inclinable binocular tube, f=170mm |
|
Eyepieces (Optional) *12.5x, 10x, 16x and 20X wide field eyepieces and have integrated eyecups with step less adjustment. |
|

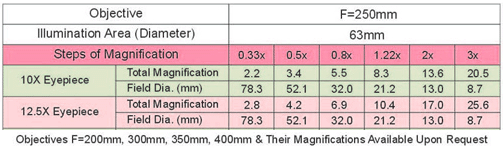

Magnification Range * e.g. with f=250mmlens and 12.5x eyepieces: * Magnification/Field-of-view diameter: 2.8x, 4.2x, 6.9x, 10.4x, 17.0x, 25.6x 78.3mm,52.1mm,32.0mm,21.2mm,13.0mm,8.7mm with selected components, the above magnification range can be shifted up or down. |
|
Focusing * Manual, fine focusing range12mm * 5 objective lenses for optional: f=200mm(with fine focus), f=250mm(with fine focus), f=300mm, f=350mm, f=400mm |
|
Illumination * MIC LED Illumination, supplies bright, white and shadow-free light,>20,000 hours lifetime * Yellow and green integrated filter * Field of view diameter:50mmwith f=250mmobjective lens |
|
Gross Weight * Floor stand125kg * Wall Mount80kg * Ceiling Mount95kg * Fixed ground Mount75kg * Tabletop Clip45kg |
