ZN-GS Laboratory Stirring WaterBathor OilBath
Main Features
a.Both water bath and oil bath ,and Stirrer
b. Directly heating and stirring in the instrument ,no need to have other vessels .
c.Max temperature 260 °C( for oil) !
d. ExportedGermanybrushless motor for long time ,stir speed 0-2000rpm
e. LCD display for temperature and Stir Speed
F. PID control . Inner and Outer thermocouple control temperature ,temperature accuracy +/- 1 degree .
g.You can measure and control the liquid temperature by outer thermocouple ( sensor )
Specification
|
Model |
ZN-GS |
|||
|
Top Instrument Dimension (mm) |
Φ 130×60 |
Φ190 × 90 |
Φ240 × 150 |
Φ310 × 150 |
|
Heating TemperatureRange (°C ) |
Ambient to 260 |
Ambient to 260 |
Ambient to 260 |
Ambient to 260 |
|
Top Instrument Material |
Aluminum with sprayed Teflon. double for metal . |
Stainless Steel .Double for Metal |
||
|
Stir Speed |
0 ~ 2000rpm |
|||
|
Stir Display |
LED |
|||
|
Speed Display Resolution |
1 rpm |
|||
|
Temperature Range |
Ambient Temperature to260 °C |
|||
|
Permissible Ambient Temperature |
Ambient Temperature to40°C |
|||
|
Temperature Accuracy (°C ) |
±1°C |
|||
|
Temperature Control |
PID. Inner and outer thermocouple |
|||
|
Voltage |
220 ~240 V ,50/ 60Hz |
|||
|
Power(w) |
350 |
700 |
1300 |
2000 |
|
Motor Power |
40W, DC14-24V |
8W, DC14V |
40W, DC20V |
40W, DC20V |
|
Max Stir Quantity (L) |
0.5L |
1L |
3L |
10L |
|
Overall Dimensions (mm) ( L × W × H ) |
265 ×155 × 155 |
325 × 215 ×175 |
430 × 270 × 305 |
500 × 330 × 305 |
|
Packing Dimension (mm) |
325 × 215 × 205 |
375 × 265 ×225 |
480 × 320 × 355 |
550 × 380 × 355 |
|
Shipping Weight (kg) |
2.2±0.2 |
4±0.2 |
7±0.2 |
9.5±0.2 |
Standards Outfits
|
Photos |
Item |
Quantity |
|
Can be Removed Holder 1. Length280mm 2. Diameter10mm 3. Material : stainless steel . |
1 PC |
|
|

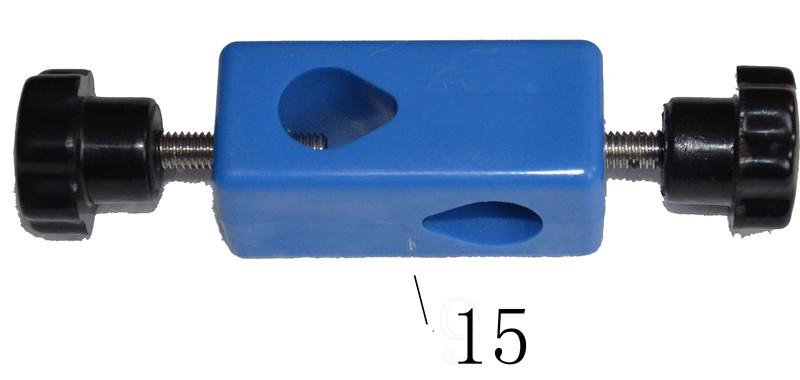

Clamp with screw |
1 PC |
|
|
Inner Thermocouple 4 -spin |
1 PC |
|
|

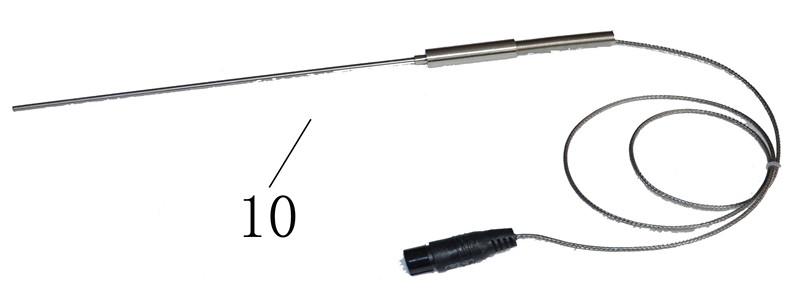

Outer Thermocouple 4-spins . Stainless Steel Length :235mm Wire length :1000mm |
1 PC |
|
|

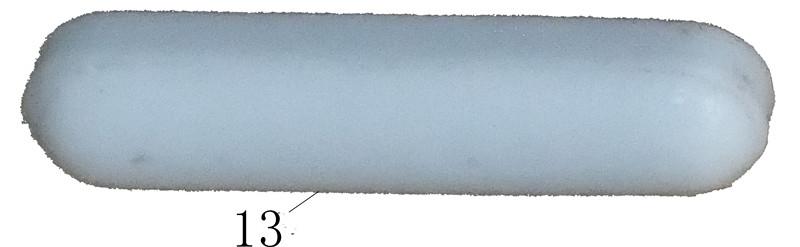

magnetic stir bar White PTFE-coated Length :30mm Diameter :6 mm |
1 PC |

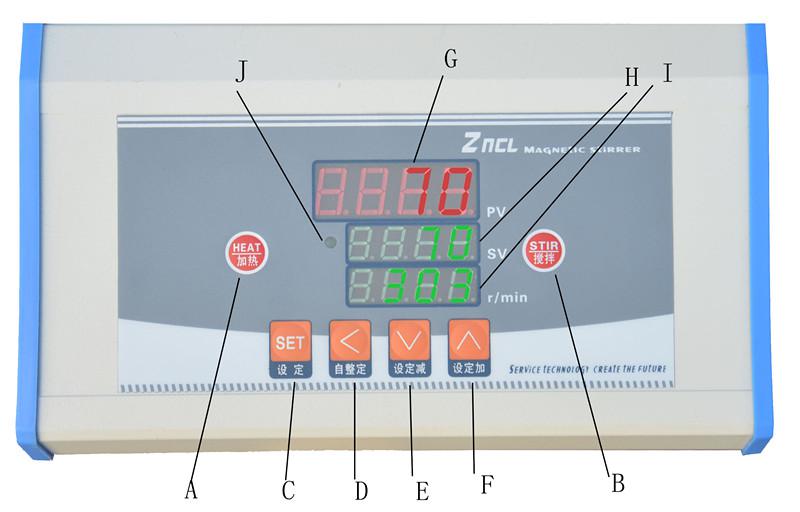

Digital Part
( A ) . Heat Button : to turn on the heating function .
( B ) Stir Button : to turn on the stir function . increase the temperature value
( C ) Set Button : to set the temperature and stir speed value . reduce the temperature value
( D ) Self-tunning Button : To make the heating devise temperature value reach the setted temperature value quickly
( E ) Reduce Button: to reduce the temperature and stir speed value.
( F ) Add Button : to add the temperature and stir speed value . OUT windows : LED display when press the self-tunning function
( G ) PV windows : to display the controlled heating devise temperature value .
( H ) SV windows : to display the setted heating devise temperature and stir speed value .
( I ) r/ min windows : to display the stir speed value .

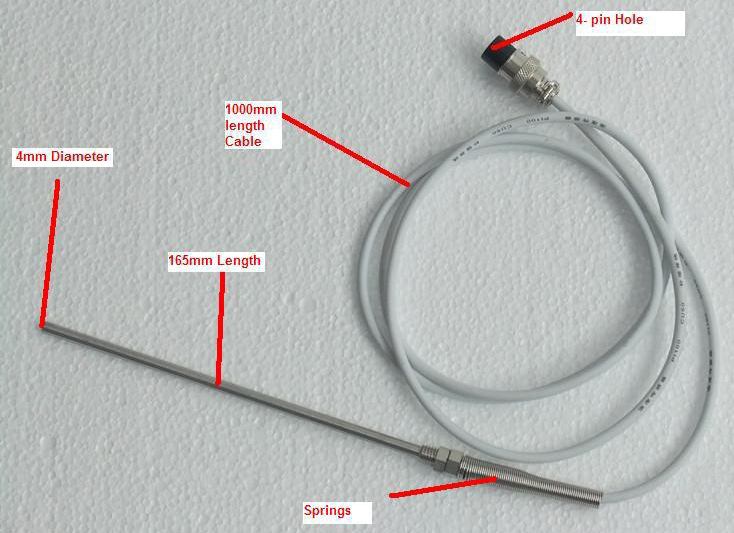

Description of the Outer K type Thermocouple ( Measure and control the temperature value )
