TISSUE EMBEDDING CENTER

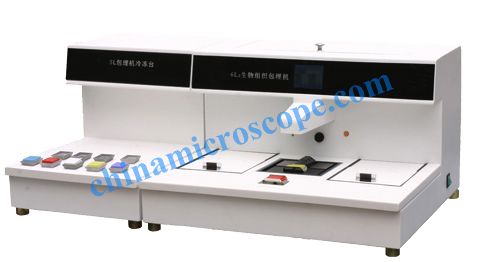

Tissue Embedding Center MIC
Features:
●The newest high technology and Touching Screen Control, new type of heating material.
●Small Freezing stage new to the working stage ,more confidence and high-efficiency for user to quick freeze paraffin cassettes
●The machine is made up of embedding machine, freezing part .the design can be flexibly selected between embedding machine and freezing part.
●Automated processor control system make it possible for presetting the start time and temperature of any day.
●special Nano technical make it heat up quickly and equably.
●The Touch Screen can show you the temperatures of the paraffin bath, thermostatic bath and paraffin nozzle. So the user can operator it easily.
●inductive head lamp and metal switch ,user can touch the switch by tweezers or knifes to control the paraffin.
●Automatic memory the presetting temperatures and start to work based on the time.
●Large capacity Paraffin Bath (6 L)can contain enough paraffin for use at one time.
● Multilevel security protection system.
●There are 3 heating hole for forceps in two side of the paraffin nozzle .
Specification:
● Capacity of the wax bath : 6000 ml.
● Melting paraffin prefabricate: 0 ~99℃
● Freezing range temperature: 0 ~ -20℃
● Complete machine consuming more electricity: Less than 1KVA
● Control mode: Auto, foot
● Environment temperature: 0℃~ 40℃
●Time control: Opening and closing time of the machine is set in 24 hours optionally.
●Nominal voltage: AC220V/110V±10％.
●Rated frequency:50/60±1Hz
●Dimension: 1180×660×470mm
●Net Weight: 55kg(for MIC-6D) 87kg(for MIC-6L2)
