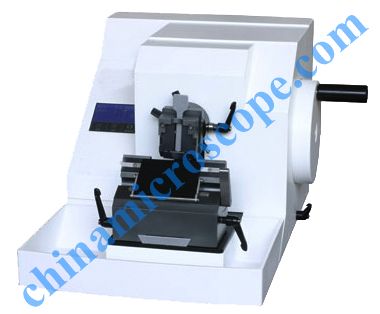

MIC
Product
specifications:
• Touch Screen Panel
• Adopted Germany stepper motor drive ensure section more precisely ,more reliable and quiet.
• The touch screen panel shows section and trimming thickness ,section counter ,distance stroke of Clamp, easy to do adjustment of Trimming or Section thickness in the touch screen panel
• Special function of specimen retraction which avoid the damage due to the attrition between sample and the back of knife so that the sectioning is more smooth and the life of the knife is more longer .
• The hand wheel can be locked in any position to ensure the sectioning as safe and convenient as possible
• Universal cassette clamp and standard specimen clamp
• The waste tray can be disassembled easily
• Sample orientation:8°along the X-Y-axis, rotate 360°
• Safety alarm system, overload protection function, sleep mode protection
• Universal cassette clamp and standard specimen clamp
• The special blade carrier can use high profile blade or low profile blade
Technical Data
• Section thickness range: 0- 100um
Setting values:
from 0-10 um in 1 um –increments
Form 10-20um in 2um-increments
Form 20-50 um in 5um-increments
Form 50-100um in 10 um-increments
• Trimming section thickness range :0-500um
• Horizontal specimen stroke :28 mm
• Vertical specimen stroke : 60mm
• Specimen retraction :12um
• Precision error: ± 5%
• Maximum section size: 50 × 45mm
• Dimension : 520 x 450 x 300mm
• Net weight：30kg
