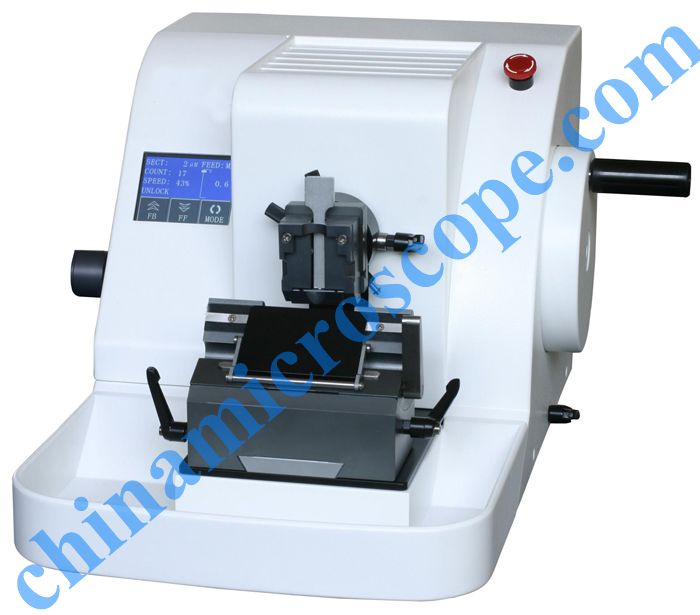

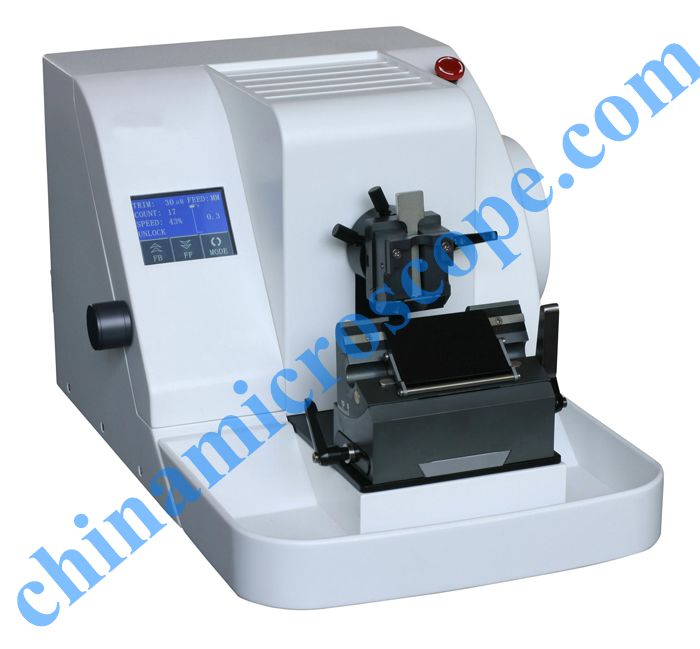

MIC-355 AT Fully Automatic Microtome


The Fully Automatic Microtome MIC-355AT provides utmost reliability, user benefit and outstanding operator comfort. Great basic stability and precision make this microtome a real multi-purpose instrument that meets the requirements both in paraffin and hard sectioning techniques of the biological, medical and industrial lab.

Product specifications:

•Fully automatic or manual modelIts two-in-one design concept, which allows motorized and manual sectioning, provides reproducible high-quality sections.

•Adopted Germany motor drive ensure slice more precisely, more reliable and quiet.

•The LCD screen shows slice and trimming thickness, section counter, keyboard with controls for thickness, mode and speed

•Special function of specimen retraction which avoid the damage due to the attrition between sample and the back of knife so that the sectioning is more smooth and the life of the knife is more longer.

• model of Blade Holder for High and low Profile Disposable Blades

•The hand wheel can be locked in any position to ensure the sectioning as safe and convenient as possible

• The waste tray can be disassembled easily

Safety alarm system, overload protection function, sleep mode protection

Universal cassette clamp and standard specimen clamp

•Emergency stop


Technical Data

•Section thickness range: 0.5- 100μm

   Setting values: From 0.5-2μm in 0.5μm –increments

                   Form 2-10μm in 1μm -increments

                   Form 10-20μm in 2μm -increments

                   Form 20-50μm in 5μm -increments

                   Form 50-100μm in 10μm increments

• Trimming section thickness range :0-500μm

     Setting values: From 5-10μm in 5μm –increments

                   Form 10-100μm in 10μm -increments

                   Form 100-200μm in 20μm -increments

                   Form 200-500μm in 50μm -increments

• Horizontal specimen stroke: 28 mm

• Vertical specimen stroke: 60mm

• Specimen retraction: 12um

• Precise orientation of specimen clamp

• Sample orientation:8°along the X-Y-axis, rotatable 360°

• Speed of fast forward and Fast backward 1mm/s

• Precision error: ± 5%

• Maximum section size: 50 × 45mm

•Voltage and power: 220v / 50Hz  or  110 v /60Hz

•Net weight35kg

• Dimensions incl. tray (L/T/H): 500mmLX320mmWX500mmH
