TT Intelligent Stirring Heating Mantle
Features
1. Temperature range : ambient to 380 ℃. PID control
2. Analog for temperature and stir speed add , reduce .
3. Stirring is Independently controlled with a variable speed control up to 2000rpm !
4. Capacity : 50ml - 10, 000ml for round bottom flasks .
5. Can be customized for beakers as your requests .
Specification
|
Model |
TT50 |
TT100 |
TT150 |
TT250 |
TT500 |
TT1000 |
TT2000 |
TT3000 |
TT5000 |
TT10000 |
|
Size (ml) |
50 |
100 |
150 |
250 |
500 |
1000 |
2000 |
3000 |
5000 |
10000 |
|
Voltage |
220 V ,50Hz or 110 V, 60 Hz |
|||||||||
|
Power (w ) |
110 W |
130 W |
170 W |
216 W |
220 W |
530 W |
650 W |
730 W |
1100 W |
2100 W |
|
Temp Control |
PID Control . |
|||||||||
|
Temp Range |
Ambient to380 ℃ |
|||||||||
|
Accuracy |
±5 ℃ |
±5 ℃ |
±5 ℃ |
±5 ℃ |
±5 ℃ |
±5 ℃ |
±5 ℃ |
±5 ℃ |
±5 ℃ |
±5 ℃ |
|
Stir SpeedRange |
0~ 2000rpm |
|||||||||
|
Stir Speed Display |
Scale |
|||||||||
|
Upper Diameter(mm) |
Φ58 |
Φ75 |
Φ 81 |
Φ95 |
Φ115 |
Φ145 |
Φ180 |
Φ212
|
Φ253 |
Φ305 |
|
Heat Material |
Alkali-free glass fiber . Max Temperature Resistance 450° |
|||||||||
|
Shell Material |
Superfine Metal , anti-aging, anti-corrosion |
|||||||||

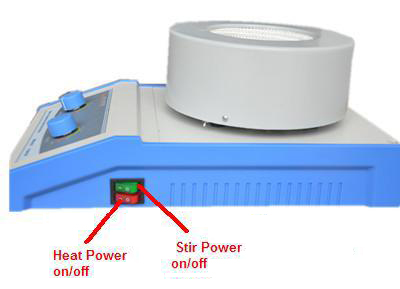

Description of the Lateral
Standard Outfits
|
Photos |
Item |
Quantity |
|
|
Can be Removed Holder 1. Length280mm 2. Diameter10mm 3. Material : stainless steel . |
1 PC |
|
|

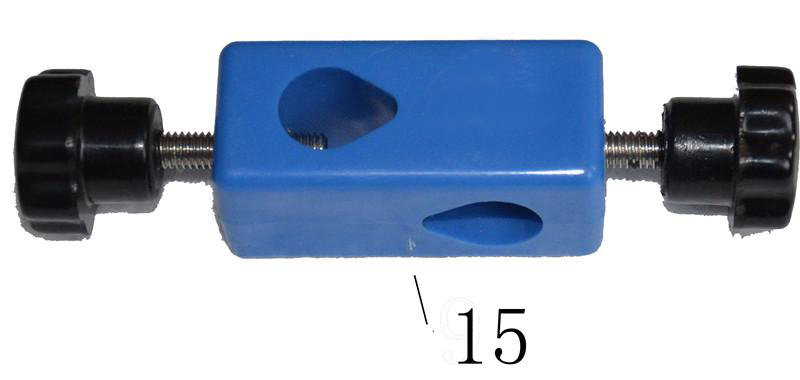

Clamp with screw |
1 PC |
|
|

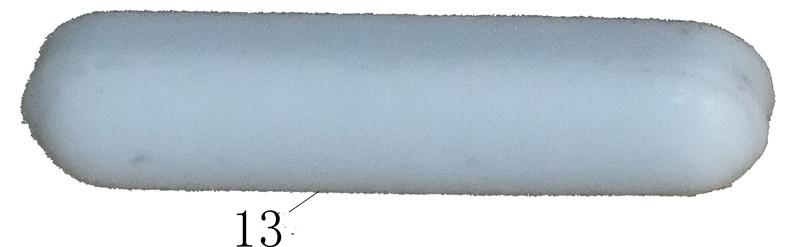

magnetic stir bar White PTFE-coated Length :30mm Diameter :6 mm |
1 PC
|
