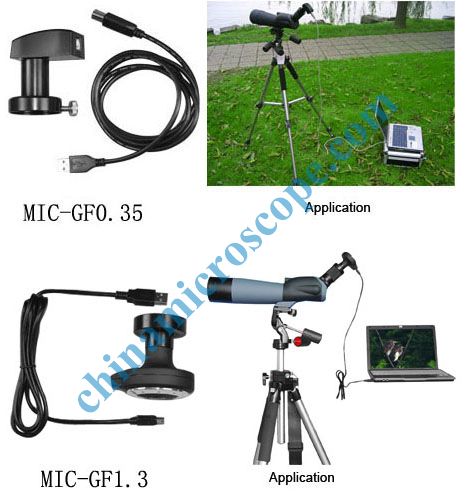

0.35 MP Digtal Eyepiece for Spotting-scope
MIC-GF0.35 is composed of44.0mmadapter, matching optical system, digital module of 0.35MP CMOS sensor, USB cable and CD of software.
Feature
|
Power supply |
USB port |
|
Eyepiece diameter |
44.00mm |
|
Connection |
To fit behind eyepiece |
|
Shutter function |
Software control |
|
Correcting image |
Software control |
|
Backlighting reduce |
Software control |
|
Function of software |
Image file management：set up, open up, save, lead in image file Image capture: switch, setting, shoot,, full screen view. Image edit: picture turn, zoom, cut, modify, email, print |
|
Resolution of display |
640*480 |
|
Resolution of picture |
640*480 |
|
Resolution of video |
640*480 |
|
Weight of device |
0.20kg |
Specifications
|
Sensor parameter |
1/4" 0.35 MP color CMOS |
|
Max resolution |
640*480 |
|
USB port |
USB 2.0 |
|
Rate of frame |
30 fps @640*480 |
|
Preview model |
640*480, 320*240 |
|
Pixel size |
5.6μm *5.6μm |
|
sensitivity |
1.9 V/lux-sec |
|
Color tone |
RGB Bayer Pattern |
|
White balance |
Auto/ manual |
|
USB cable |
4.0 m |
|
O/P compatibility |
Win2k,WinXP,Vista |
|
Packing message:
|
1. Single box: Weight:0.225kg,Measurement: 15.5*13.5*7.0 ㎝³; 2. One carton of 50 PCS: Weight:13.0 kg, Measurement: 69.0*33.5*36.5 ㎝³;
|
1.3 MP Digital Eyepiece for Spotting-scope
MIC-GF1.3 is composed of44.0mmadapter, matching optical system, digital module of 1.3MP CMOS sensor,8.0 mUSB cable and CD of software. The
matching optical system offers true color images and special design of IC board
offers wide dynamic range to well express bright and dark area of the target.
Feature
|
Power supply |
USB port |
|
Eyepiece diameter |
44.00 mm |
|
Connection |
To fit behind eyepiece |
|
Shutter function |
Software control |
|
Correcting image |
Software control |
|
Backlighting reduce |
Software control |
|
Function of software |
Image file management：set up, open up, save, lead in image file Image capture: switch, setting, shoot, full screen view. Image edit: picture turn, zoom, cut, modify, email, print |
|
Resolution of display |
1280*1024 |
|
Resolution of picture |
1280*1024 |
|
Resolution of video |
1280*1024 |
|
Weight of device |
0.23kg |
Specifications
|
Sensor parameter |
1/3" 1.3 MP CMOS |
|
Max resolution |
1280*1024 |
|
USB port |
USB 2.0 |
|
Rate of frame |
16 fps @ 1280*1024 |
|
Preview model |
1280*1024, 640*480, 320*240 |
|
Pixel size |
3.6μm *3.6μm |
|
Sensitivity |
1.0 V/lux-sec@550nm |
|
Spectrum response |
400nm-1000nm |
|
Shutter type |
ERS(electronic rolling shutter) |
|
White balance |
Auto / manual |
|
O/P compatibility |
Win2k,WinXP,Vista |
|
Packing |
1. Single box: Weight:0.275kg,Measurement: 19.0*13.5*8.6 ㎝³; 2. One carton of 50 PCS: Weight:15.0 kg, Measurement: 68.0*39.0*45.0 ㎝³ |
