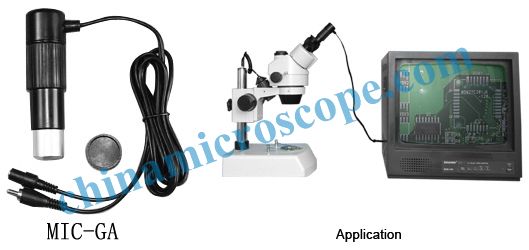

MIC-GA composed of built in matching optical system, 1/3 inch color CMOS sensor module, AV cable and power adapter, is applied to display images captured by microscope on TV set or monitor or projector for public view. The built in lenses offer 10 times optical magnification. TV system (P or N) and power supply model will be confirmed on client s demand. In comparison with digital eyepiece, MIC-GA is more convenient in operation, because on software is needed to install.
Feature
|
Power supply |
9VDC or adapter |
|
Ocular tube size |
23.20mm or30.00mm |
|
Connection |
Ocular tube or C-mount |
|
Uniform focusing |
Yes |
|
Optics magnification |
10X |
|
Rate of view |
1/3 |
|
Matching lens |
Yes |
|
Resolution of display |
P system：640*480 |
|
Resolution of display |
N system：510*492 |
|
AV cable |
1.5 m |
|
Weight of device |
0.085 kg |
Specifications
|
Sensor parameter |
1/3”0.35MP color CMOS |
|
Max resolution (N) |
510*492 |
|
Max resolution (P) |
640*480 |
|
Image output |
Video |
|
Preview model（N） |
510*492 |
|
Preview model（P） |
640*480 |
|
Pixel size（N） |
4.69*3.54 |
|
Pixel size（P） |
5.78*4.19 |
|
Sensitivity |
3lux@f1.2(3000K) |
|
S/N |
48dB |
|
Dynamic range |
72dB |
|
White balance |
Auto |
|
Packing |
1. Single case：Weight:0.36 kg，Measurement: 15.5*13.5*7.0 cu cm 2. One carton of 50 PCS: Weight:20.0kg, Measurement: 69.0*33.5*36.5 cu cm |
