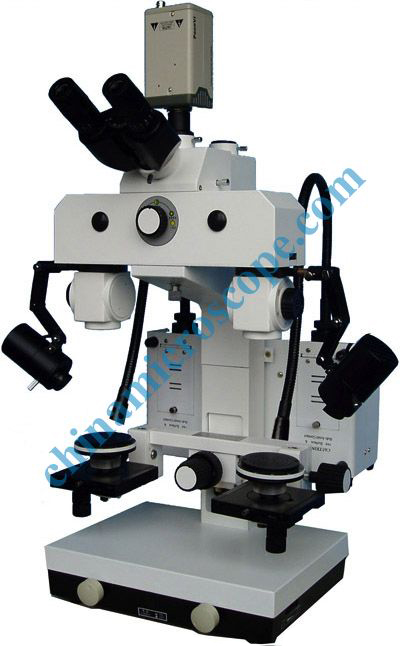

Comparison Microscope MIC-W5D
1. Advantages:
Comparison microscope MIC-W5D successfully solved the technical problems of comparing ridge width and consistency adjustable (this technology is included in the national technology security projects), MIC-W5D is an upgraded product improved on MIC-W5Cmodel, which not only retains excellent technical performances of MIC-W5C, but also increases its image quality and magnification, increases illumination ways and a variety of accessories, shape, structure more beautiful, reasonable, reliable, and makes the instrument fully plays its functions of comparison and identification.
2. Applications:
This product is an ideal instrument for public security, inspection, court on document retrieval, marks checking and school teaching (used for bullets, tool marks, fingerprints, seals, texts, coins comparison and identification), but also for industries and sectors such as banks, archaeology, electronics, biology, agriculture which need to identify on objects to use.
3. Illuminations:
|
selecting and adjusting of magnification |
|
photographing and video recording |
|
polarized light – traces, scratch marks comparison |
|
coaxial light – deep hole, smooth surface illumination |
|
transmission light illumination – photographic film, transparent or translucent objects comparison |
4. Accessories
|
transmission illuminator |
rotary, tilting working stages |
polarization optical devices |
|
0.3X large objective lens |
coaxial light |
CCD connection tube |
|
block filter |
power line |
binocular head |
|
LED light source |
10X eyepieces |
20X eyepieces |
|
camera connection tube |
optic fiber cold light source |
magnification corrector |
|
red, green color filter |
bullet holder |
low magnification objective lens |
|
screw driver |
lens cleaning paper |
driers |
5. Technical Parameters：
|
optical magnification range: 2.5X~120X |
|
eyepieces: WF10× /Ф22mm，WF20×/Ф14mm |
|
objectives: 0.6X, 1.2X, 2X, 3.5X, 5X (0.3X, 2.0X for optional) |
|
objective view field diameter: Φ2.5mm～Φ90mm |
|
embedded digital color video recording system: 3 mega pixels, resolution 1024×768, supports for USB digital or VGA/AV/DAI output, configures digital camera interface |
|
working distance:100mm |
|
objective stage size:100mm; moving range: X/50mmY/50mmZ/50mm |
|
objective stage horizontal linkage range:50mm |
|
coarse lifting range:50mm |
|
new semiconductor light source lighting (brightness adjustable) |
|
illumination 300W independent external cold light source, with optic fiber with condenser adjustable power supply: 220V AC input, 24V DC stable output, accords with international safety standard |
