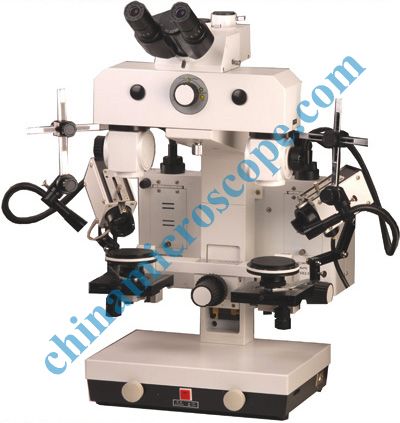

Comparison Microscope MIC-W5B
1. Advantages:
Comparison microscope MIC-W5B successfully solved the technical problems of comparing ridge width and consistency adjustable (this technology is included in the national technology security projects), MIC-W5B is an upgraded product improved on MIC-W5 model, which not only retains excellent technical performances of MIC-W5, but also increases its image quality and magnification, increases illumination ways and a variety of accessories, shape, structure more beautiful, reasonable, reliable, and makes the instrument fully plays its functions of comparison and identification.
2. Applications:
This product is an ideal instrument for public security, inspection, court on document retrieval, marks checking and school teaching (used for bullets, tool marks, fingerprints, seals, texts, coins comparison and identification), but also for industries and sectors such as banks, archaeology, electronics, biology, agriculture which need to identify on objects to use.
3. Illuminations:
|
Selecting and adjusting of magnification |
|
Photographing and video recording |
|
Polarized light – traces, scratch marks comparison |
|
Coaxial light – deep holes, smooth surface illumination |
|
Transmission light illumination – photographic film, transparent or translucent objects comparison |
4. Accessories:
|
CCD camera |
Camera& Camera tube |
Tightening ring |
|
System tightly twisted screw |
Twist lock |
Rotary, tilting working stage |
|
Bullet holder |
Magnification corrector |
50W strong light source |
|
Cold light source optic fiber |
Cold light source lens |
Block filter |
|
0.4X low magnification objective lens |
Polarization optical devices |
Coaxial light |
|
Transmission illuminator |
|
|
5. Technical parameters：
|
Optical magnification range: 3.1X-120X |
|
Eyepieces: 10X, 16X, 25X |
|
Objectives: 0.64X, 1X, 1.6X, 2.5X, 4X (additional objectives for optional) |
|
Bridge body magnification: 1.2X |
|
Photographing magnification: interface magnifies 3X |
|
Video magnification: interface magnifies 0.44X |
|
Working distance:100mm |
|
Objective stage size:70mm×70mm |
|
Moving range: horizontal51mm, longitude51mm, vertical54mm |
|
Horizontal moving range:45mm |
|
Coarse elevating range:49mm |
|
Illuminating: 12V50w halogen, adjustable, air-blast light source |
|
Cold light source: 12V50W adjustable, Φ10mm |
|
Power source: 220V AC input, 12V DC stable voltage output, is fit for the international safety standard |
