Optical member coated with a special coating, to form the field of view clear and bright images and flat

Shift zoom lens combinations 2X/4X, 1X/2X, 1X/3X for selection

Standard magnification 20X/40X, and other optional auxiliary lens magnification eyepiece, the magnification range: 5X ~ 160X

Standard working distance of100mm, creating enough space for the use of

10X wide field eyepieces, FOV20mm, high eye point design, more suitable for search and observation

Observe head 45 ° inclined binocular diopter adjustable, easy to operate and comfortable, prolonged use of a sense of fatigue

Vertical hand wheel zoom, zoom high repetition accuracy

Best eye point height, to ensure that different vision users can get a clear image of satisfaction

magnification

Standard configuration : 20X/40X optional eyepieces and auxiliary objective expandable 5X ~ 160X, vertical shift zoom

objective

1X, 2X, 3X, 4X

eyepiece

high eye point wide field eyepiece WF10X/20mm

high eye point wide field eyepiece WF15X/15mm

high eye point wide field eyepiece WF20X/10mm

observation head

binocular head , 45 ° tilt , 360 ° rotation , interpupillary distance 54 ~76mm, bilateral diopter adjustment (± 5)

Working Distance

Standard configuration :100mm( effective distance ) optional auxiliary lens extended to30mm-165mm

auxiliary lens

0.5X/165mm, 1.5X/45mm, 2X/30mm

focus brackets

focusing hand wheel adjustable elastic , lifting range50mm

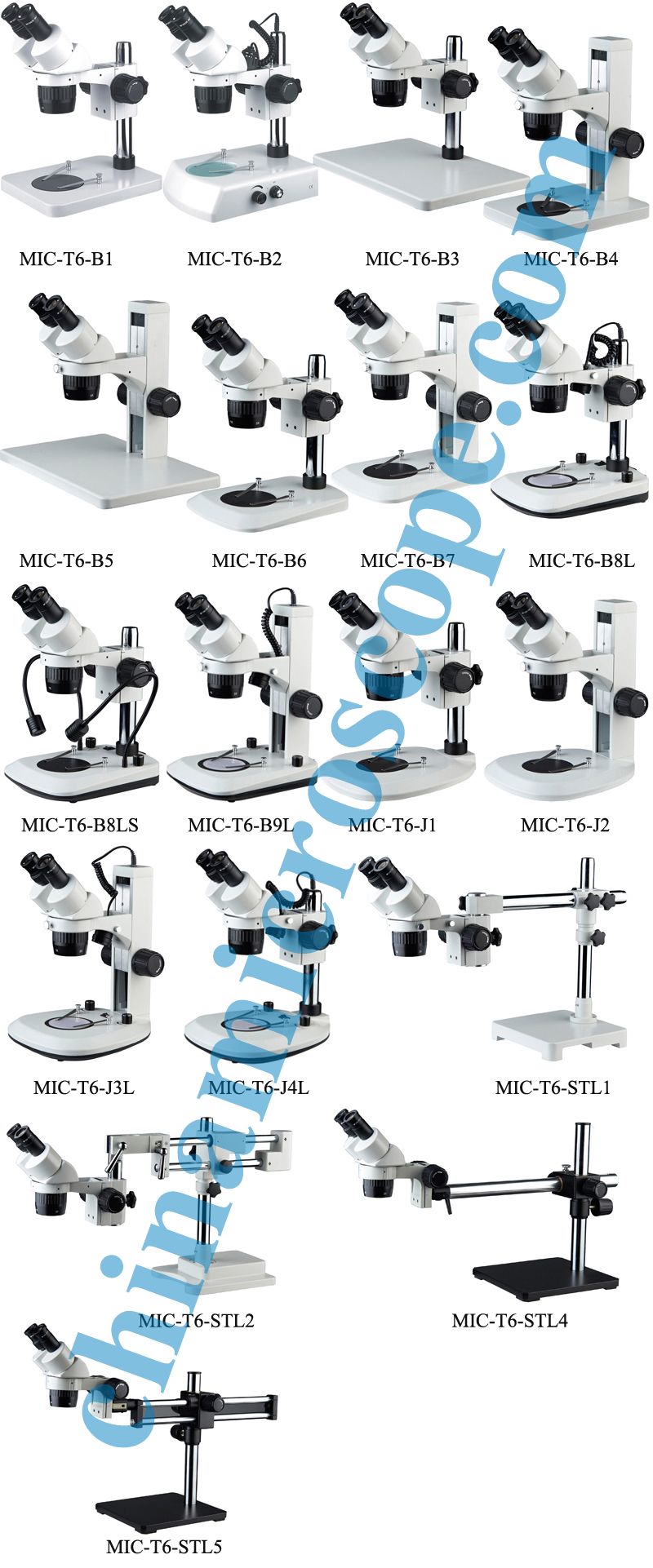

base

B1 Column flat base

other optional

mobile platform
