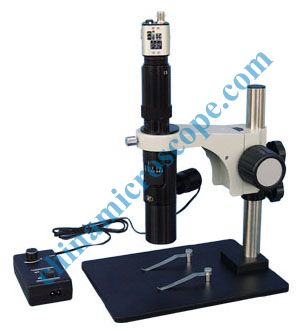

MIC TMM-45C high-contrasted coaxial illumination zoom monocular video microscope systems, original imaging and illumination optical system design, making it have higher contrast and depth of field. It can connect with CS-mount or C-mount CCD (CMOS) camera, display, computer etc. They can be used in electric equipments, semiconductor, LCD, LED etc. for observing, checking-up and survey digital images. Specially fit for checking-up objects with low reflectivity (such as plane presswork, LCD bugs).
TMM-45C high-contrasted coaxial illumination zoom monocular video microscope systems (Wafer fab, chips, LCD manufacturing specialized equipment)
Main technology Specifications：
|
High-contrasted, in focus all the zoom course, even illumination |
|
Zoom objective magnification: 0.7X~4.5X. Working distance is 103mm. |
|
Standard total M: 0.7X~4.5X, extend total magnification: 0.196X~18X |
|
Adjustable high luminance LED coaxial illumination, AC100~240V, breadth voltage input. |
|
The measurement to match between the support and the main body is Φ45mm |
|
0.4X, 0.5X, 0.67X, 1X(standard outfits), 1.5X, 2X five magnification CS-mount CCD adapter to be selected |
|
0.7X, 2X auxiliary objective |
|
Main advantages: its high contract and high definition are the same level to the other international similar competitive grade, but the price is less than those products. It can see including LCD, chips, wafer etc. almost the whole objects. Main sphere of application: it uses to observe, analysis and checking-up wafer fab, chips, LCD etc fine test with high reflectivity and generic objects high clearly imaging observing, analyse. Especially fit for the high level research. Adjusting explanation: Loosen two screws above the Holder, the CCD attachment may revolve 360°so as to adjust the direction of CCD; meanwhile loosen three screws of the annular knurl part, and revolved the annular knurl part, it can adjust the high and low on focus. The top three screws can be adjusted when the CCD target surface isn’t in the central. |
Standard
specification：
|
|
TMM-45C |
|
Main body ZDA0745C |
● |
|
Stand SD11-D |
● |
|
LED illuminator MLC1000 |
● |
Main optical data: M means magnification, V means visual field, W means Working distance (mm), A means Auxiliary objective
|
A |
CCD adapter |
||||||
|
0.4X |
0.5X |
0.67X |
1X |
1.5X |
2X |
||
|
Body |
M |
0.28X-1.8X |
0.35X-2.25X |
0.469X-3X |
0.7X-4.5X |
1.05X-6.75X |
1.4X-9X |
|
V |
12.9X17.1-2X2.67 |
10.29X13.71-1.6X2.13 |
7.7X10.2-1.2X1.6 |
5.14X6.86-0.8X1.07 |
3.43X4.57-0.53X0.71 |
2.57X3.43-0.4X0.53 |
|
|
W |
103 |
||||||
|
0.7X |
M |
0.196X-1.26X |
0.245X-1.575X |
0.33X-2.11X |
0.49X-3.15X |
0.735X-4.725X |
0.98X-6.3X |
|
V |
18.4X24.5-2.9X3.8 |
14.69X19.59-2.29 X3.05 |
10.9X14.5-1.7X2.3 |
7.35X9.8-1.14X1.52 |
4.9X6.53-0.7X1.02 |
3.67X4.9-0.57X0.76 |
|
|
W |
145 |
||||||
|
2X |
M |
0.56X-3.6X |
0.7X-4.5X |
0.938X-6X |
1.4X-9X |
2.1X-13.5X |
2.8X-18X |
|
V |
6.4X8.57-1X1.33 |
5.14X6.86-0.8X1.07 |
3.8X5.12-0.6X0.8 |
2.57X3.43-0.4X0.53 |
1.71X2.29-0.27X0.36 |
1.29X1.71-0.2X0.27 |
|
|
W |
35 |
||||||
|
Magnification range of zoom body 0.7X-4.5X |
|||||||
