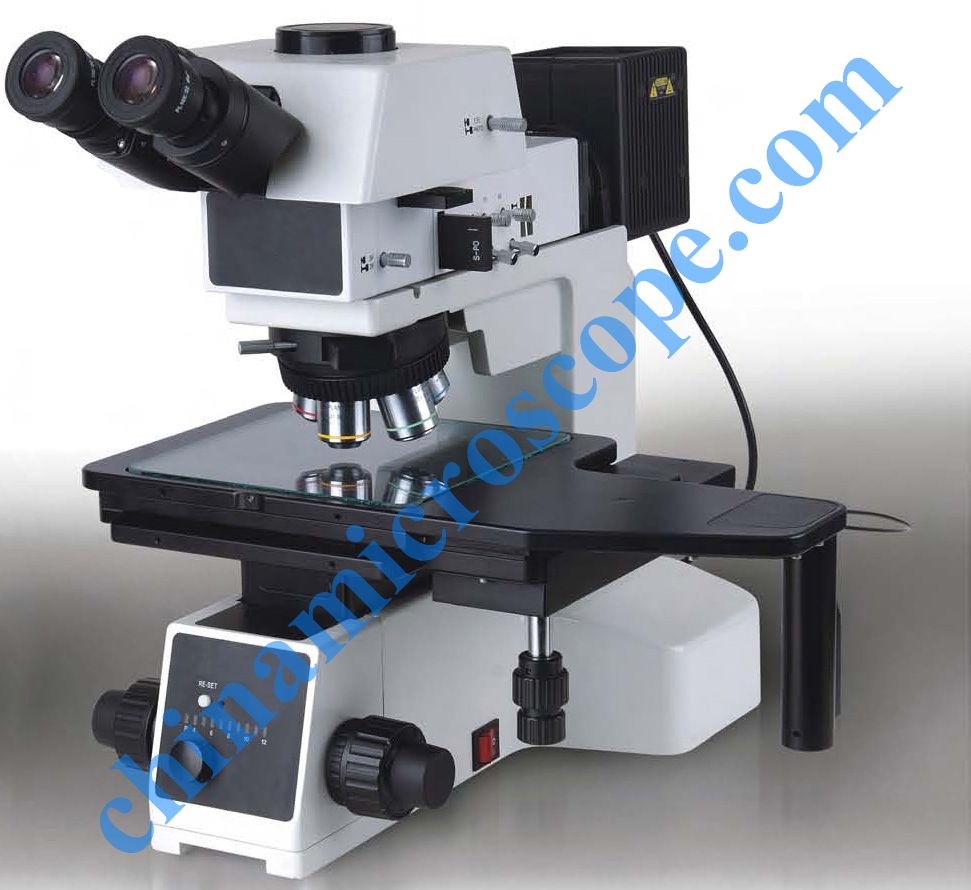

MIS-6R series metallurgical microscope characters

◆Flexible system combination, sharp image function, precision mechanical structure, MIS serials will be widely used in industrial inspection and metallurgical analysis.

◆XY moving range105mm-158mmNew design of long working distance professional metallurgical objectives. High power objectives with semi-apochromatic technology. Get clear and sharp image under various kind of observations Complete accessories, meet different demand of combination Precision mechanical structure, ergonomic design

◆Ergonomic design to enable user operate easy and wearriless.

Modularized design of the parts, independent assortment different systemic function.

▲Big moving range plate

4’’/6’’ stage, suitable for the use of water or FPD inspection, as well as small size sample of array inspection.

MIS-4R/MIX-4RT:4’’ stage, moving range: 105x105mm

MIS-6R/MIS-6RT:6’’ stage, reflection illumination moving range: 158x158mm, transmission illumination moving range: 100x100mm, which clutch handle for fast moving.

All kinds of MIS serials stages can be replaced with each other via using the stage adapter.

▲Long working distance metallurgical objectives

New design of long working distance professional metallurgical objectives.

Use semi-apochromatic and multilayer broadband coating technology, image clear and sharp in the whole field, color nature and bright.

Long working distance design, W.D.7.8mmfor 50-X, W.D.2.1mmfor 100X



.complete set of bright/dark field objectives special use for MIS-6R, illumination of darkfield reach double more than traditional one.5X, 10X, 20X objectives can make DIC differential interference observation perfectly.


▲High performance nosepiece


Precisioin bearing design for nosepiece, confortable and positioning accurate, good concentricity, different kind of nosepiece for option.

PI103C51: quintuple bright field nosepiece, with DIC prism slot for MIS-4R/MIS-4RT

PI103C5BDI: quintuple bright/dark field nosepiece, with DIC prism slot for MIS-6R/MIS-6RT

▲Wide field of view gemel trinocular head

MISETH25R erect gemel trinocular head, same direction and same moving direction for objective

and image, easy to view and operate, match6’’ stage.

MIS4RTH30R gemel trinocular head, match4’’ stage.


MISETH25R and MIS4RTH30R can be in common use for MIS serials.


▲Safety, steady body construction

Industrial detection level microscope body, low center of gravity, high rigidity, high metal

body, can improve the shake proof and image stability.

Pre-posed low position coaxial coarse and fine focus system, build in 90-240V wide voltage. Perfect cooking system for long time use without overheating.

Different illumination for option

Bright filed reflect illumination: single 5W white LED, with oblique illumination, for MIS-4R/MIS-4RT

Bright field reflect illumination: 12V/100W, for MIS-4R/MIS-4RT

Bright/dark field reflection illumination: 12V/100W halogen illumination, with intensity of light preset, can transfer to preset light intensity immediately, with switching mechanism for bright field and dark field for MIS-6R/MIS-

6RT.

Transmission illumination: MIS serials can with both reflection and transmission illumination, transmission bulb is single 5W white LED, with N.A. 0.5condenser.

Transmission and reflection illumination can be operated separately or work together.





Various function selections for observation, bright field, dark field, oblique illumination, polarization, DIC differential interference.

▲Bright field observation(reflected illumination)

Kohler reflected illumination, infinite plan achromatic long working distance metallurgical objectives ensure image clearance, flat and sharp form low to high magnification.

                                   IC 5X bright fileld                                                IC 100X bright fileld


▲Bright field observation (transmitted illumination)

5W high power LED, N.A. 0.5condenser, observe LCD, edge of parts under transmitted illumination. Separate control of transmitted and reflected illumination, can work both or single.


▲Oblique illumination

Use oblique illumination, different materials of the sample surface can show stereoscopic image, it can increase the contrast and visual effect of observation. The oblique illumination only use for MIS-4R/MIS-4RT



▲Dark filed observation

MIS-6R/MIS-6RT with dark field observation function. Pull the transfer stick to dark field position to observe scratch, impurity dot and other small defect of the sample surface.

                                                        FPC 10X Dark field
▲Simple polarizing observation

Insert polarizer and analyzer to suitable position of illuminator for polarizing observation. Fixed type and 360°rotation type analyzer for option.

                                                         PCB cross section 20X polarizing
▲DIC observation

Based on orthogonality polarizing, insert Nomarski DIC prism to match DIC observation. Use DIC technology can show obvious emboss for the small high flow difference, increase the image contrast. 5X, 10X, 20X are specially designed for DIC, insure the interference colors same of the whole field of view, perfect differential interference result. As well as high magnification.

             Conducting particles 20X DIC                  Wafer 50X DIC
▲Photo and video accessories

Trinocular head comes with video accessories, user can get the image from monitor or computer, to do the image analysis, processing, save or transmitting. Use special C-mount and relay lens, connect with digital camera to take photos and catch images.

▲Various interference filters for option

Use 12V100W halogen illumination, choose LBD sunlight filter, to get soft bright and white background. In industrial use, choose other filter to adjust the light spectrum to get the best image result.

▲Micrometer accessories

0.1mm reticle eyepiece   &    0.01mm micrometer

▲Objective parameter

LMPL infinite long working distance metallurgical objective

Model

Magnification

Numerical aperture

Working distance

Cover glass thickness

Parfocal distance

Conjugate distance

LMPlan infinite long working distance Metallurgical

objective

5X

0.15

10.8

0

45

10X

0.30

10.0

20X

0.45

4.0

50 X

0.55

7.8

100X

0.80

2.1

LMPL-BD infinite long working distance bright/dark field metallurgical objective

Model

Magnification

Numerical aperture

Working distance

Cover glass thickness

Parfocal distance

Conjugate distance

LMPlan-BD infinite long working distance bright/dark field Metallurgical

objective

5X

0.15

11.0

0

45

10X

0.30

9.5

20X

0.45

3.4

50 X

0.55

7.5

100X

0.80

2.1


▲MIS-6R/MIS-6RT standard features

Model

MIS-6R

MIS-6RT

Observation method for option

Bright field/dark field/polarizing/DIC

Bright field/dark field/polarizing/DIC/transmitted light

Optical system

Infinity color corrected optical system

Eyepiece

High eyepoint plan eyepiece PL10X22mm

Objective

LMPL-BD infinite long working distance bright/dark field metallurgical objective

Viewing head

Erect image 25° inclined trinocular head, splitting ratio for binocular: trinocular=100:0 or 0:100

Nosepiece

Intilted, quintuple bright/dark field nosepiece, with DIC slot.

Stage

6 inch three layers mechanical stage, moving range:158mm*158mm, with glass stage, X,Y moving hand wheel, with clutch hand, right hand shank, can move quickly

6 inch three layers mechanical stage, moving range:158mm*158mm, for transmission:100*100mm, with glass stage, X,Y moving hand wheel, with clutch hand, right hand shank, can move quickly

Microscope main body

Coaxial coarse and fine adjustment, coarse adjustment distance33mm, precision of fine adjustment:0.001mm, with coarse adjustment stop and tightness adjustment. Built-in 90-240V wide voltage transformer, one way power output.

Coaxial coarse and fine adjustment, coarse adjustment distance33mm, precision of fine adjustment:0.001mm, with coarse adjustment stop and tightness adjustment. Built-in 90-240V wide voltage transformer, double way power output.

Reflected illumination system

With iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with switch device with bright and dark field, 12V100W halogen bulb, per-centering, digital dimming can be with bright intensity settings and reset function.

With iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with switch device with bright and dark field, 12V100W halogen bulb, per-centering, brightness adjustable

Transmitted illumination system

/

Single high power 5W LED, white, brightness adjustable. N.A. 0.5condenser, with iris diaphragm.

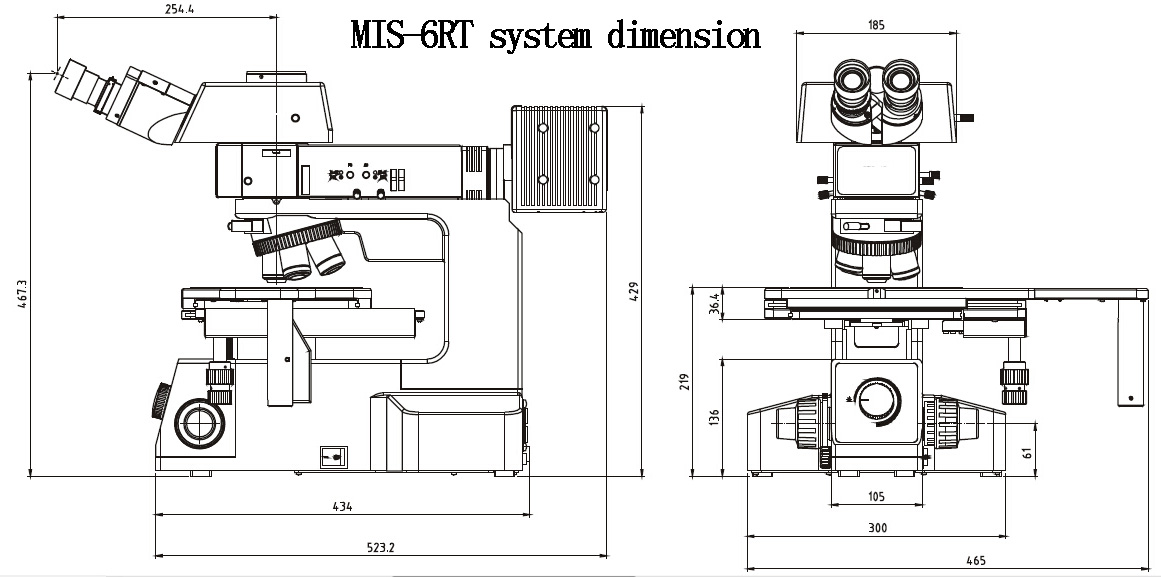

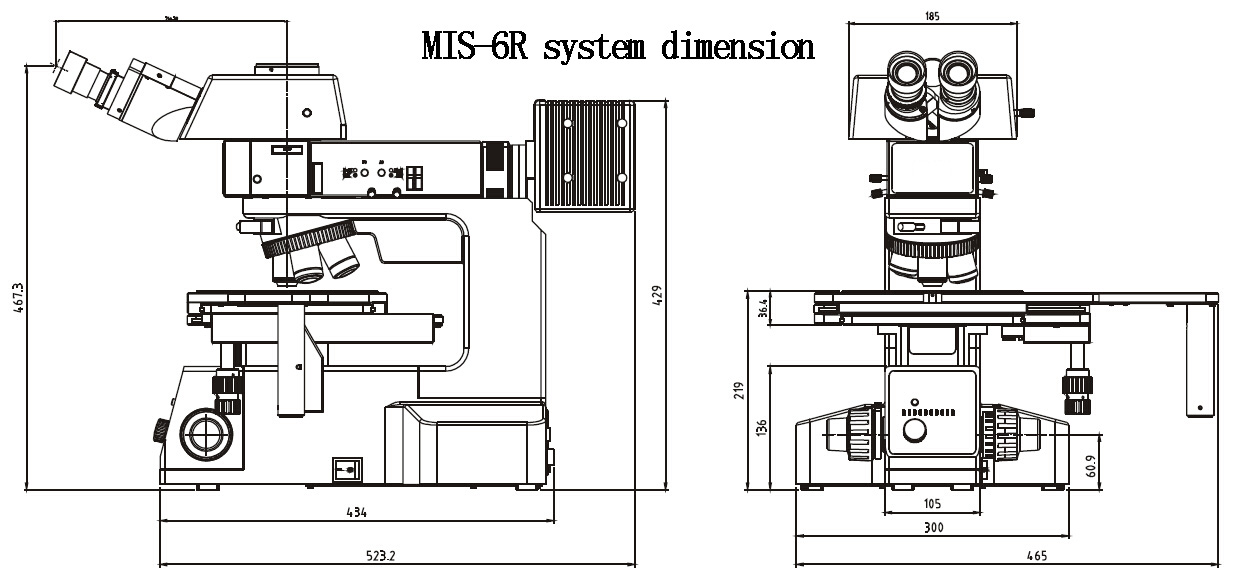

 MIS-6R/MIS-6RT microscope dimension

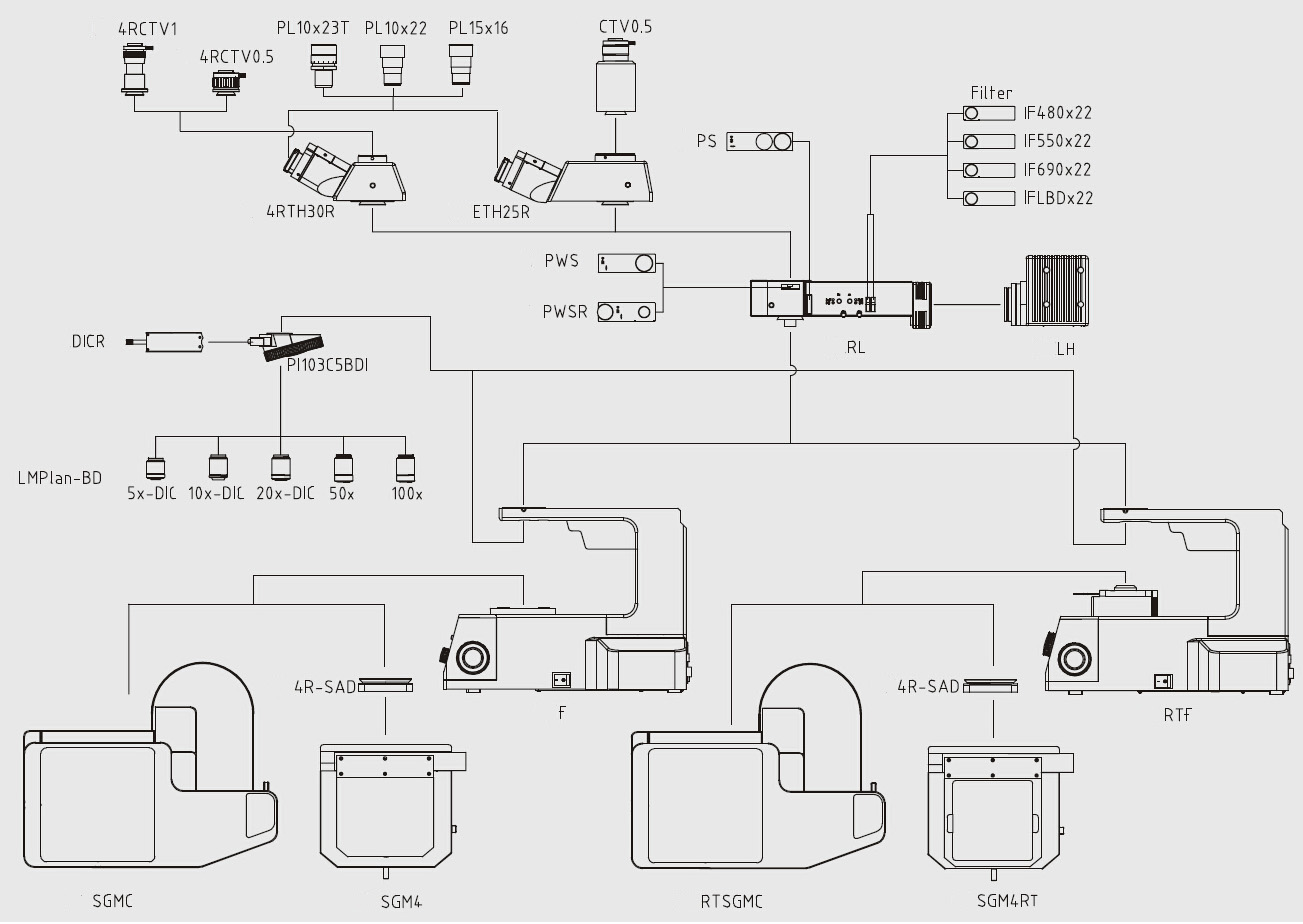

 MIS-6R/MIS-6RT microscope system diagram
