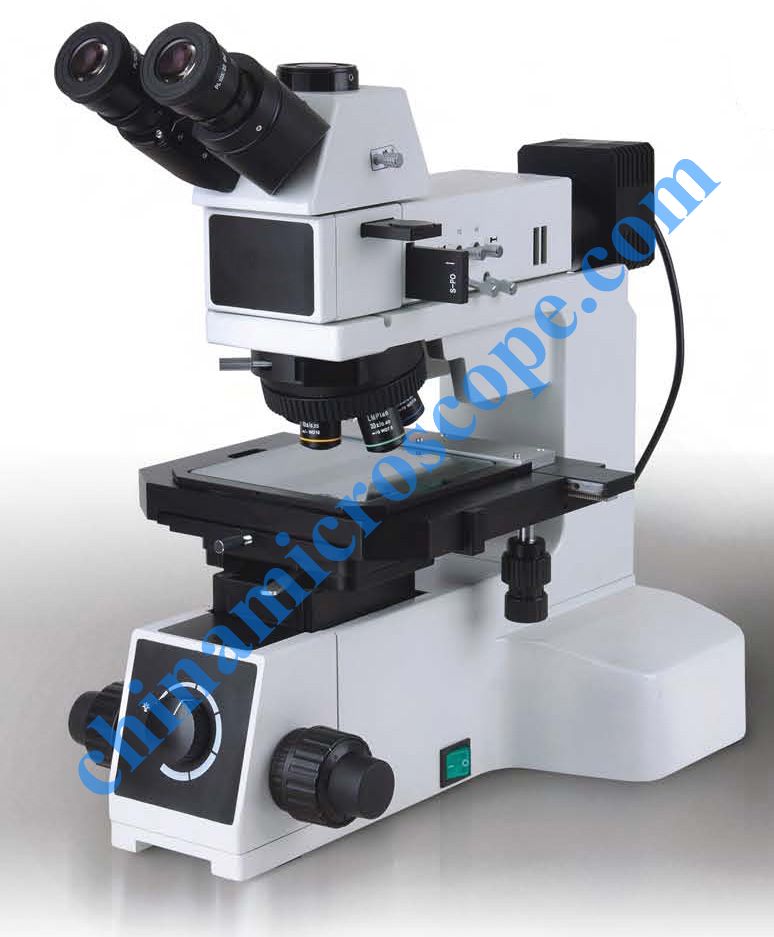

MIS-4R series metallurgical microscope characters
◆Flexible system combination, sharp image function, precision mechanical structure, MIS serials will be widely used in industrial inspection and metallurgical analysis.
◆XY moving range105mm-158mmNew design of long working distance professional metallurgical objectives. High power objectives with semi-apochromatic technology. Get clear and sharp image under various kind of observations Complete accessories, meet different demand of combination Precision mechanical structure, ergonomic design
◆Ergonomic design to enable user operate easy and wearriless.
Modularized design of the parts, independent assortment different systemic function.
▲Big moving range plate
4’’/6’’ stage, suitable for the use of water or FPD inspection, as well as small size sample of array inspection.
MIS-4R/MIX-4RT:4’’ stage, moving range: 105x105mm
MIS-6R/MIS-6RT:6’’ stage, reflection illumination moving range: 158x158mm, transmission illumination moving range: 100x100mm, which clutch handle for fast moving.
All kinds of MIS serials stages can be replaced with each other via using the stage adapter.

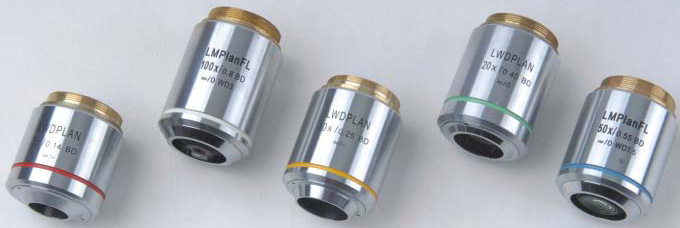

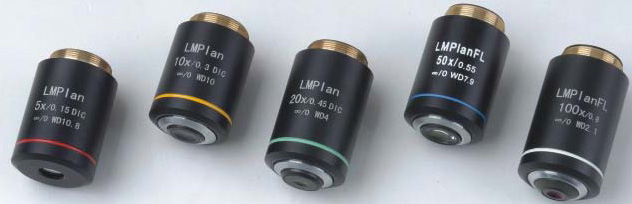

New design of long working distance professional metallurgical objectives.
Use semi-apochromatic and multilayer broadband coating technology, image clear and sharp in the whole field, color nature and bright.
Long working distance design, W.D.7.8mmfor 50-X, W.D.2.1mmfor 100X

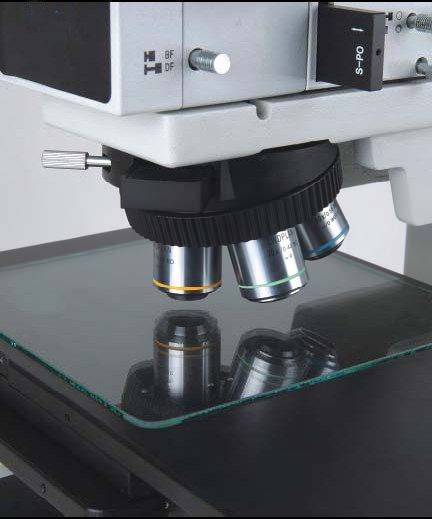

▲High performance nosepiece
Precisioin bearing design for nosepiece, confortable and positioning accurate, good concentricity, different kind of nosepiece for option.
PI103C51: quintuple bright field nosepiece, with DIC prism slot for MIS-4R/MIS-4RT
PI103C5BDI: quintuple bright/dark field nosepiece, with DIC prism slot for MIS-6R/MIS-6RT

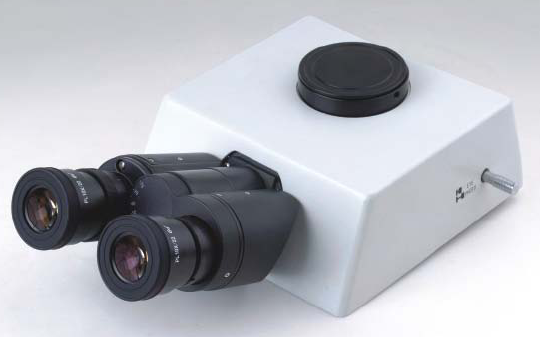

▲Wide field of view gemel trinocular head
MISETH25R erect gemel trinocular head, same direction and same moving direction for objective
and image, easy to view and operate, match6’’ stage.
MIS4RTH30R gemel trinocular head, match4’’ stage.

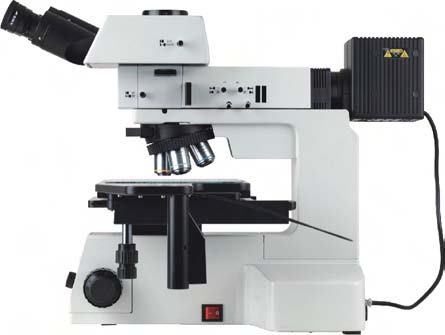

▲Safety, steady body construction
Industrial detection level microscope body, low center of gravity, high rigidity, high metal
body, can improve the shake proof and image stability.
Pre-posed low position coaxial coarse and fine focus system, build in 90-240V wide voltage. Perfect cooking system for long time use without overheating.

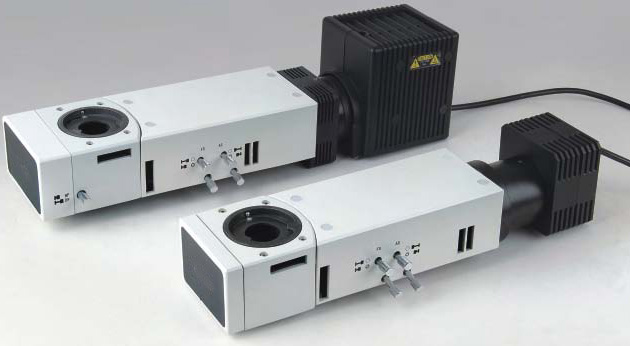

▲Different illumination for option
Bright filed reflect illumination: single 5W white LED, with oblique illumination, for MIS-4R/MIS-4RT
Bright field reflect illumination: 12V/100W, for MIS-4R/MIS-4RT

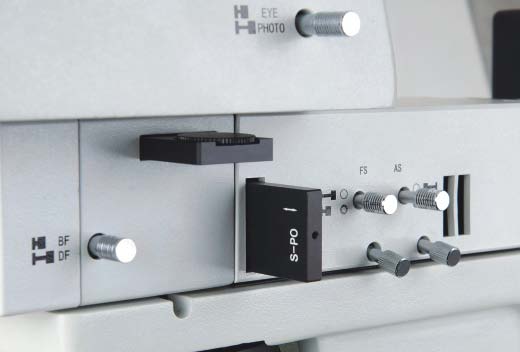

Bright/dark field reflection illumination: 12V/100W halogen illumination, with intensity of light preset, can transfer to preset light intensity immediately, with switching mechanism for bright field and dark field for MIS-6R/MIS-
6RT.
Transmission illumination: MIS serials can with both reflection and transmission illumination, transmission bulb is single 5W white LED, with N.A. 0.5condenser.
Transmission and reflection illumination can be operated separately or work together.
Various function selections for observation, bright field, dark field, oblique illumination, polarization, DIC differential interference.
▲Bright field observation(reflected illumination)
Kohler reflected illumination, infinite plan achromatic long working distance metallurgical objectives ensure image clearance, flat and sharp form low to high magnification.

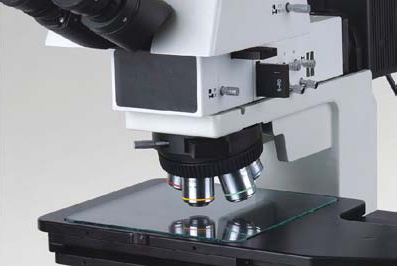

▲Bright field observation (transmitted illumination)

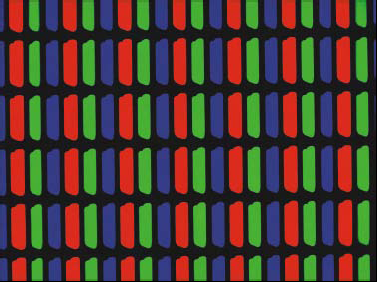

5W high power LED, N.A. 0.5condenser, observe LCD, edge of parts under transmitted illumination. Separate control of transmitted and reflected illumination, can work both or single.

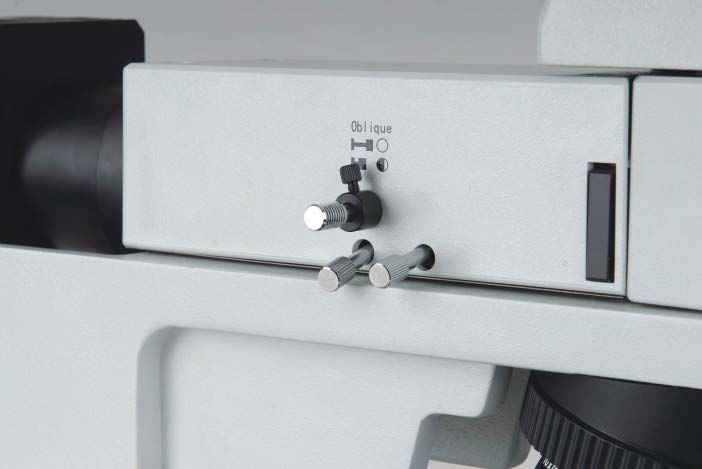

▲Oblique illumination
Use oblique illumination, different materials of the sample surface can show stereoscopic image, it can increase the contrast and visual effect of observation. The oblique illumination only use for MIS-4R/MIS-4RT
▲Dark filed observation
MIS-6R/MIS-6RT with dark field observation function. Pull the transfer stick to dark field position to observe scratch, impurity dot and other small defect of the sample surface.

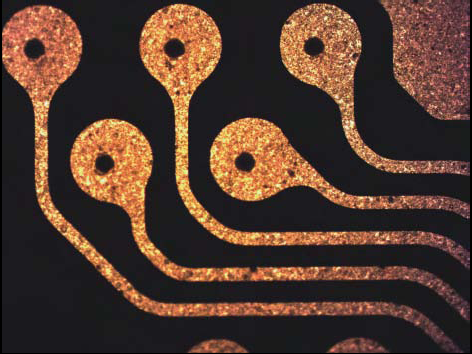

FPC 10X Dark field
▲Simple polarizing observation
Insert polarizer and analyzer to suitable position of illuminator for polarizing observation. Fixed type and 360°rotation type analyzer for option.

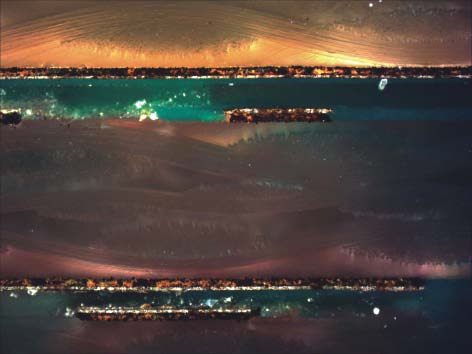

PCB cross section 20X polarizing
▲DIC observation
Based on orthogonality polarizing, insert Nomarski DIC prism to match DIC observation. Use DIC technology can show obvious emboss for the small high flow difference, increase the image contrast. 5X, 10X, 20X are specially designed for DIC, insure the interference colors same of the whole field of view, perfect differential interference result. As well as high magnification.

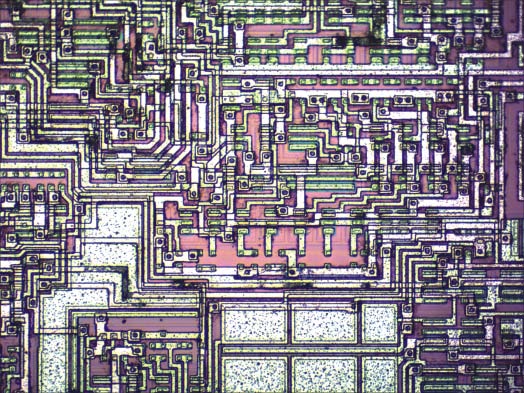

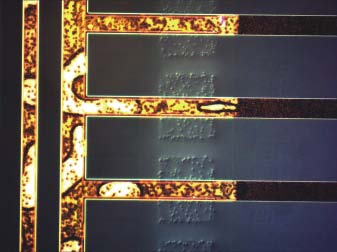

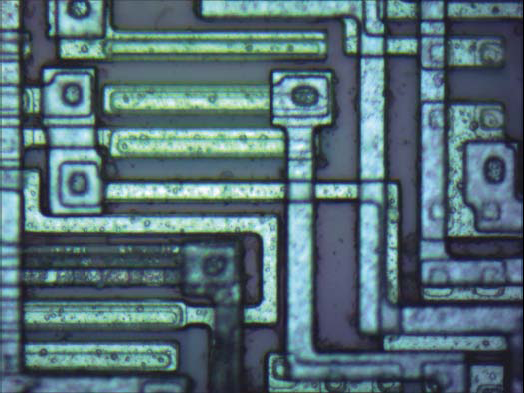

Conducting particles 20X DIC Wafer 50X DIC
▲Photo and video accessories

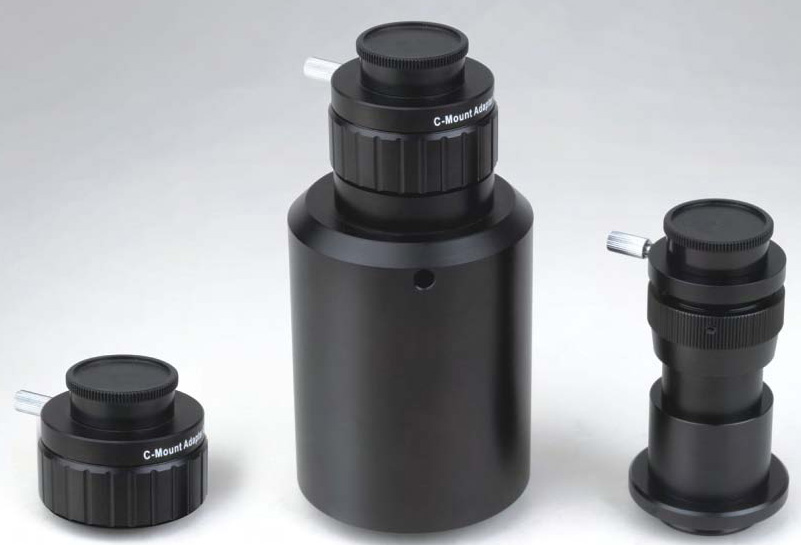

Trinocular head comes with video accessories, user can get the image from monitor or computer, to do the image analysis, processing, save or transmitting. Use special C-mount and relay lens, connect with digital camera to take photos and catch images.

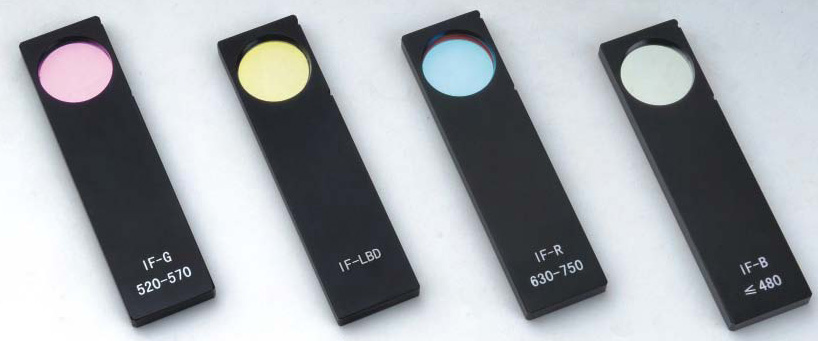

▲Various interference filters for option
Use 12V100W halogen illumination, choose LBD sunlight filter, to get soft bright and white background. In industrial use, choose other filter to adjust the light spectrum to get the best image result.
▲Micrometer accessories
0.1mm reticle eyepiece & 0.01mm micrometer
▲Objective parameter
LMPL infinite long working distance metallurgical objective
|
Model |
Magnification |
Numerical aperture |
Working distance |
Cover glass thickness |
Parfocal distance |
Conjugate distance |
|
LMPlan infinite long working distance Metallurgical objective |
5X |
0.15 |
10.8 |
0 |
45 |
∞ |
|
10X |
0.30 |
10.0 |
||||
|
20X |
0.45 |
4.0 |
||||
|
50 X |
0.55 |
7.8 |
||||
|
100X |
0.80 |
2.1 |
LMPL-BD infinite long working distance bright/dark field metallurgical objective
|
Model |
Magnification |
Numerical aperture |
Working distance |
Cover glass thickness |
Parfocal distance |
Conjugate distance |
|
LMPlan-BD infinite long working distance bright/dark field Metallurgical objective |
5X |
0.15 |
11.0 |
0 |
45 |
∞ |
|
10X |
0.30 |
9.5 |
||||
|
20X |
0.45 |
3.4 |
||||
|
50 X |
0.55 |
7.5 |
||||
|
100X |
0.80 |
2.1 |
▲MIS-4R/MIS-4RT standard features
Model
MIS-4R
MIS-4RT
Observation method for option
Bright field/oblique
illumination/polarizing/DIC
Bright field/oblique illumination/polarizing/DIC/transmitted
light
Optical system
Infinity color corrected optical system
Eyepiece
High eyepoint plan eyepiece PL10X22mm
Objective
LMPL infinite long working distance
metallurgical objective
Viewing head
30° inclined trinocular head, splitting ratio for binocular:
trinocular=100:0 or 50:50
Nosepiece
Intilted, quintuple nosepiece, with DIC
slot.
Stage
4 inch double layers mechanical stage,
moving range:105mm*105mm, with metal flat
stage, right hand position X,Y moving hand wheel, with stage adaptor.
4 inch double layers mechanical stage,
moving range:105mm*105mm, with glass flat
stage, right hand position X,Y moving hand wheel, with stage adaptor.
Microscope main body
Coaxial coarse and fine adjustment,
coarse adjustment distance33mm,
precision of fine adjustment:0.001mm,
with coarse adjustment stop and tightness adjustment. Built-in 90-240V wide
voltage transformer, one way power output.
Coaxial coarse and fine adjustment,
coarse adjustment distance33mm,
precision of fine adjustment:0.001mm,
with coarse adjustment stop and tightness adjustment. Built-in 90-240V wide
voltage transformer, double way power output.
Reflected illumination system
With iris field diaphragm and aperture
diaphragm, central adjustable, with filter slot and polarizing slot, with
oblique illumination switch. Single high-power 5W LED, white, brightness
adjustable.
Transmitted illumination system
/
Single high power 5W LED, white,
brightness adjustable. N.A. 0.5condenser, with iris diaphragm.

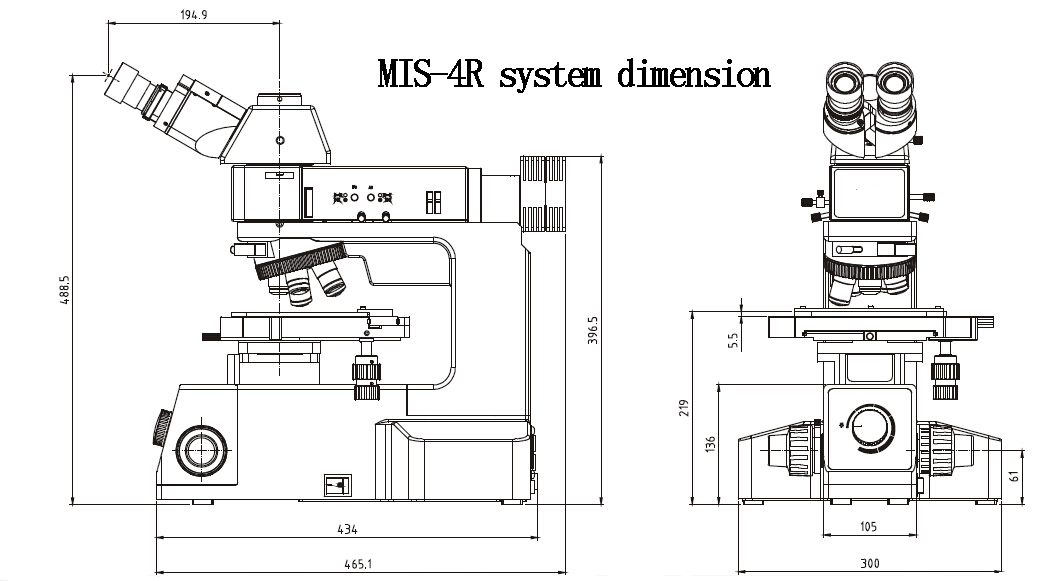

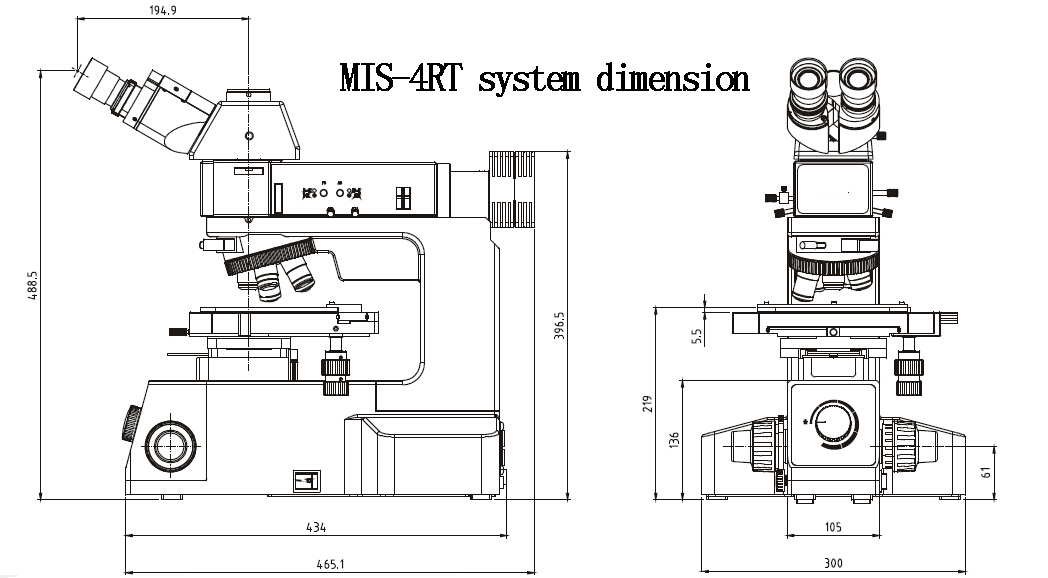

MIS-4R/MIS-4RT microscope dimension

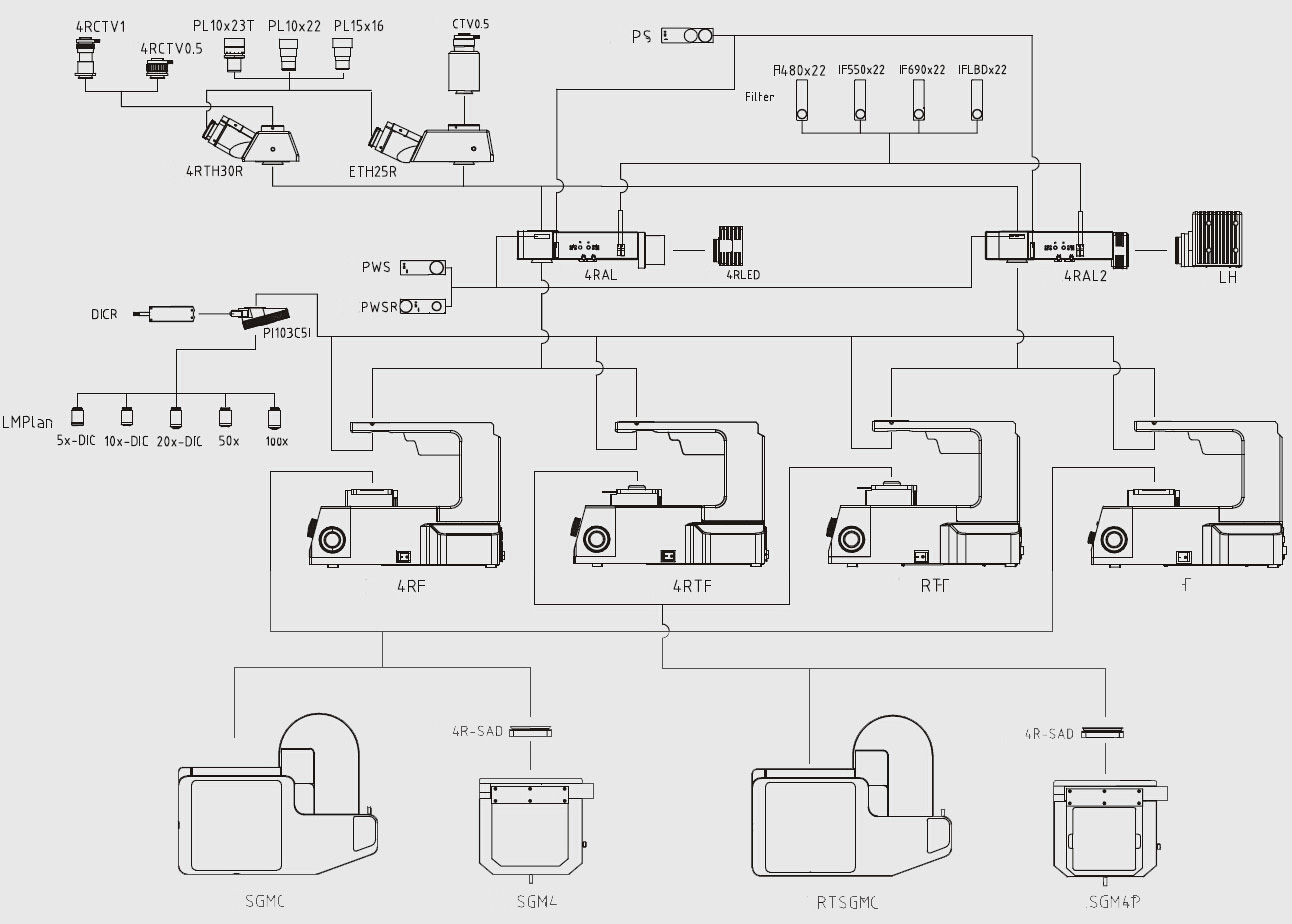

MIS-4R/MIS-4RT microscope system diagram
