Item

DY-2F

Optical System

Infinite Optical System

●

Viewing Head

Trinocular Head Inclined at 30°, Interpupillary 48-75mm

●

Eyepiece

High-point, Extra Wide Field Eyepiece EW10×/ 22

●

Nosepiece

Quintuple Nosepiece

●

Objective

LWD Infinite Plan Objective

4×/0.1, WD18mm

●

10×/0.25, WD10mm

○

20×/0.4, WD5.1mm

○

40×/0.6, WD2.6mm

●

Infinite Plan Phase Objective

PH 10×/0.25, WD10mm

●

PH 20×/0.4, WD5.1mm

●

PH 40×/0.6, WD0.35mm

○

Infinite Plan Fluorescent Objective

4×/0.13, WD16.3mm

○

10×/0.3, WD12.4mm

○

20×/0.4, WD1.5mm

○

40×/0.6, WD2.2mm

○

Condenser

ELWD Condenser NA 0.3, LWD72mm

●

Focusing

Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke37.7mmper rotation, Fine Stroke0.2mmper rotation

●

Stage

Plain stage 160×250 mm

●

Glass Insert

●

Attachable Mechanical Stage, X- Y Coaxial Control, Moving Range 120×78 mm

○

Auxiliary Stages70×180mm

●

Terasaki Holder

○

ф38mmPetri Dish Holder

○

ф54mmSlide Glass Holder

○

Illumination

Halogen Lamp6V/ 30W

●

Filter

Blue/ Green and Ground Glass (ф45mm)

●

Phase Annulus

●

Centering telescope(ф30)

○

Photo Attachment

○

Video Adapter

Video Adapter with C Mount

○

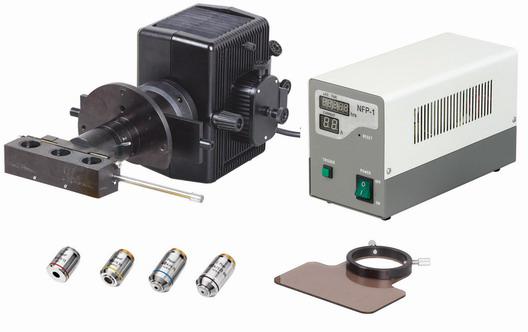

Reflected Light Source

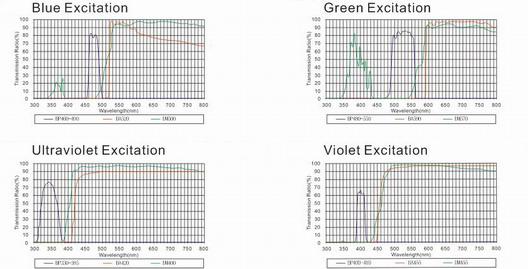

Excitation

Dichroic Mirror

Barrier Filter

Blue excitation

BP460～490

DM500

BA520

●

Blue excitation (B1)

BP460～495

DM505

BA510-550

○

Green excitation

BP480～550

DM570

BA590

●

Ultraviolet excitation

BP330～385

DM400

BA420

○

Violet excitation

BP400～410

DM455

BA455

○

Lamp

100W HBO Ultra Hi-voltage Spherical Mercury Lamp

●

Protection barrier

Barrier to Resist the Ultraviolet Light

●

Power Supplier

Power Supplier NFP-1, 220V/ 110V interchangeable, Digital Display

●

Immersion Oil

Fluorescent Free Oil

●

Neutral ND25/ ND6 Filter

○

Centering Plate

●
