MIC-FKseries zoom stereo microscope is Galilean Optical System with high quality and the best advantage price.
Magnification range achieves 0.7 to 4.5X.
|
Type |
MIC-FK |
|
Magnification Range |
0.7X to 4.5X |
|
Zoom Ratio |
1 : 6.5 |
|
Actual Field of Image Space |
Φ22 mm |
|
Working Distance |
110 mm |
|
Stereo Angle |
12° |
|
Viewing Angle |
40° |
|
Interpupillary Distance Adjustment |
50 mm to 75 mm |
|
Auxiliary Objective |
0.5X |
0.75X |
1X(Built-in) |
1.5X |
2X |
|
|
Working Distance |
189mm |
122mm |
110mm |
42mm |
36mm |
|
|
Eyepieces 10X φ22mm |
Magnification |
3.5 to 22.5X |
5.25 to 33.75X |
7 to 45X |
10.5 to 67.5X |
14 to 90X |
|
Actual Field（mm） |
62.9 to 9.8X |
41.9 to 6.52X |
31.43 to 4.89X |
20.95 to 3.26 X |
15.71 to 2.44X |
|
|
Eyepieces 15X /φ16mm |
Magnification |
5.25 to 33.75X |
7.88 to 50.63X |
10.5 to 67.5X |
15.8 to 105.8X |
21 to 135X |
|
Actual Field（mm） |
45.71 to 7.11X |
30.48 to 4.74X |
22.86 to 3.56X |
15.24 to 2.37 X |
11.43 to 1.78X |
|
|
Eyepieces 20X/φ12mm |
Magnification |
7 to 45X |
10.5 to 67.5X |
14 to 90X |
21 to 135X |
28 to 180X |
|
Actual Field |
34.28 to 5.33X |
22.85 to 3.55X |
17.14 to 2.67X |
11.42 to 1.78 X |
8.57 to 1.33X |
|
|
MIC-FK Series Configuration List |
|||||
|
Name |
Order number |
Specification |
|||
|
MIC-FKSeries （0.7X-4.5X，1:6.4) |
|||||
|
Stereo Zoom Microscope |
FK650-BPS |
Binocular,No light Souce,Square Column with small base. |
|||
|

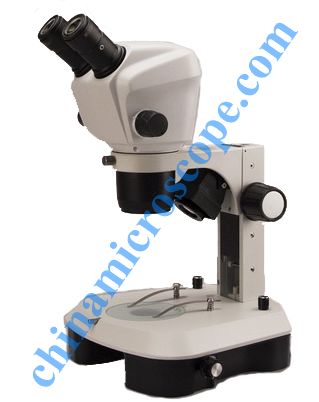

Stereo Zoom Microscope |
FK650-B2LS |

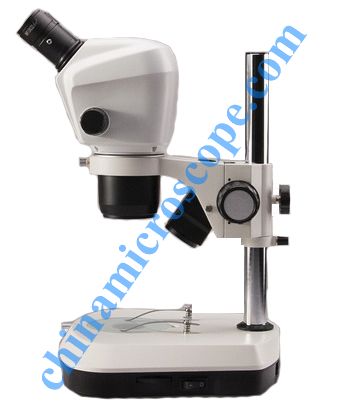

Binocular，3W-LED Light Souce with Up and Down ( Wide Voltage),Pillar Type Column with Small Base |
|||
|
Stereo Zoom Microscope |
FK650-BP |

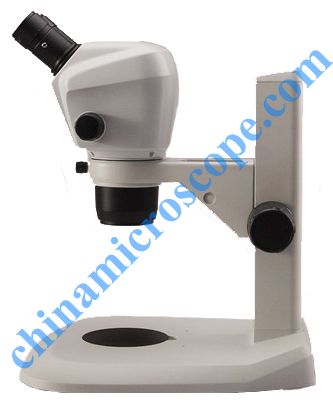

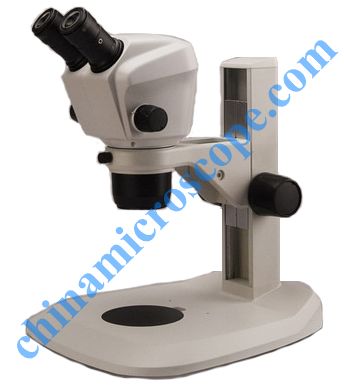

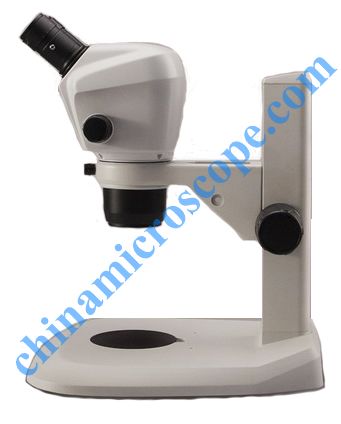

Binocular, No light Source,Square Column. |
|||
|

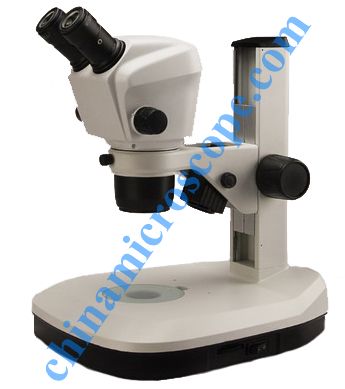

Stereo Zoom Microscope |
FK650-B2L |

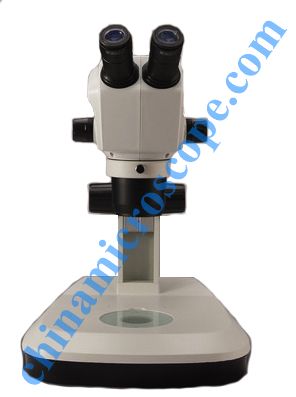

Binocular，3W-LED Light Souce with Up and Down ( Wide Voltage),Square Column |
|||
|
10X Eyepiece |
FK680-10X |
φ22mm，Adjustable diopter |
|||
|
20X Eyepiece |
FK680-20X |
φ12mm，Adjustable diopter |
|||
|
10X Micrometer eyepiece |
FK680-10XF |
φ22mm，Adjustable diopter |
|||
|
Binocular Zoom Host |
|
Without Eyepiece,Bracket Inner diameter 76mm |
|||
|
Optional Accessories |
|||||
|
Additional objective |
FK 0.5X |
|
FK10210201 |
||
|
Additional objective |
FK 2.0X |
|
FK10210501 |
||
|
Camera C interface |
FK 1.0X C |
Focus adjustable |
FK10260802 |
||
|
Camera C interface |
FK 0.7X C |
Focus adjustable |
FK10260804 |
||
|
Camera C interface |
FK 0.5X C |
Focus adjustable |
FK10260801 |
||
|
Electronic eyepiece interface |
FK-DZ |
|
FK10260803 |
||
|
SLR Camera Interface |
FK 1.0X P |
Apply to the frame digital SLR camera of APS and Under APS format SLR camera. |
FK10260803 |
||
|
SLR Camera Interface |
FK 2.0X P |
Apply to 135 Full-frame digital SLR camera. |
FK10260803 |
||
|
Ring lights up lap |
|
Connect Circular fluorescent lamp with Circular LED Lamp. |
LG104104 |
||
|

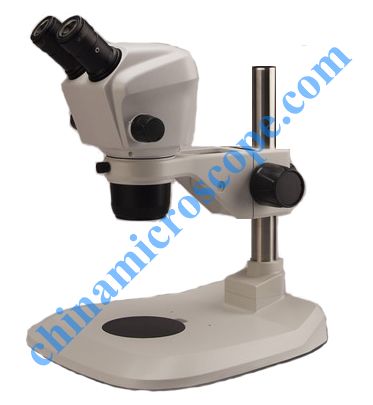

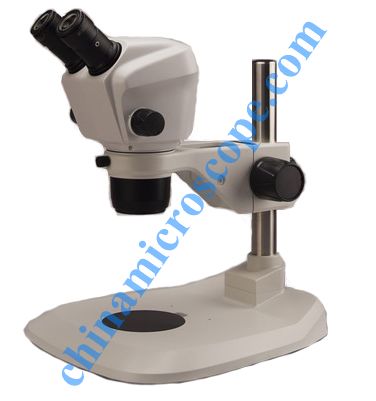

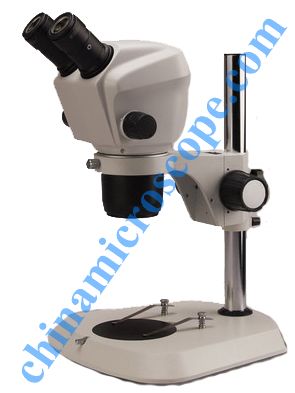

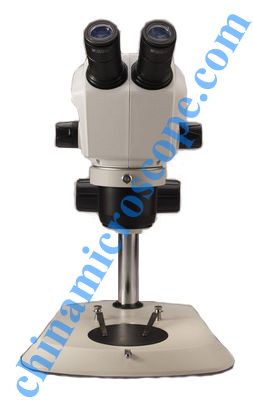

Round Column Bracket no Light |
|
|
FK10230101+ |
||
|
FK10230201 |
|||||
|

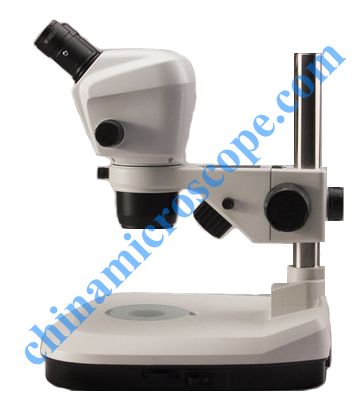

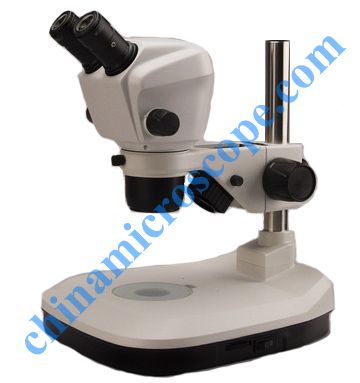

Round Column Bracket with Light |
|
3W-LED Light Souce with Up and Down( Wide Voltage) (Same price as the Halogen lamp,Single Adapt) |
FK10230102+ |
||
|
FK10230202 |
|||||
|
Optional(Base with adjectable reflector) |
|
Viewing the embryo for its rotate fuction |
|
||
|

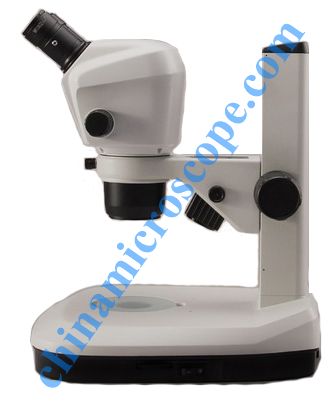

Square Column no light Bracket |
|
|
FK10230301 |
||
|
Square Column with light Bracket |
|
3W-LED Light Souce with Up and Down( Wide Voltage) |
FK10230302 |
||
|
Single crossbar universal stand |
|
Contain Focusing parts. |
FK10710301+ |
||
|
FK10230201 |
|||||
|

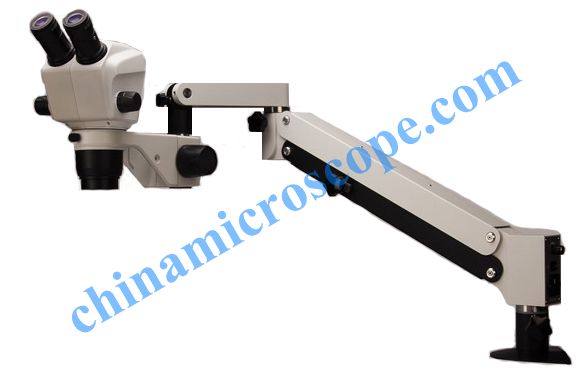

Rocker gimbal (aluminum alloy) (see a big object) |
|
Contain Focusing Parts and Up 3W-LED Light Souce ( Wide Voltage) |
FK10710303+ |
||
|
FK10230201 |
|||||
