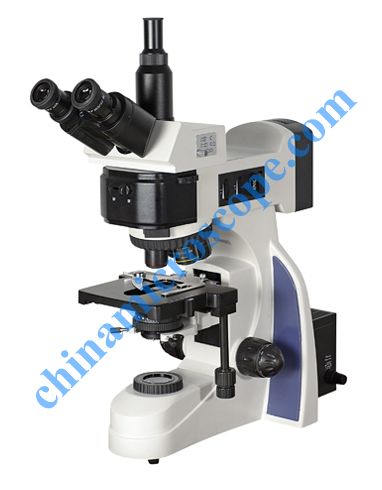

MA7000 MODEL with DIC, DARK FIELD&BRIGHT FIELD, POLARIZING
MA7000 up-right bright & dark field metallurgical microscope is developed and aimed at the semiconductor industry,Silicon wafer manufacturing,electronic information industry,metallurgical industry.It can be widely used to identify and analyze grease,semiconductor,FPD,circuit package,circuit substrate,material,casting/metal/ceramic parts and precision molds.This instrument adopts both reflecting and transmitted illumination.B&D field,DIC and Polarizing observation proceed under reflecting illumination,and the bright field observation is done under transmitted illumination.High quality and reliable optical system bring much clearer,sharper image and better contrast.The ergonomics design makes you feel comfortable and relaxed in doing your job
|
Specification |
|
|
Optical system |
infinite optical system |
|
Viewing Head |
Compensation Free trinocular Head inclined at 45° interpupillary distance adjustable 48mm-75mm |
|
Eyepiece |
Wide field Plan WF10X/22mm |
|
WF10×/20mm,cross hair with reticle 0.1mm |
|
|
Objective |
infinity plan working distance B&D objective 5×/0.15（W.D.14.47mm） 10×/0.25（W.D.16.01mm） 20×/0.40（W.D.10.5mm） 50×/0.55（W.D.5.1mm） |
|
Nosepiece |
Quintuple Nosepiece with DIC Jack |
|
Stage |
Double layer mechanical stage |
|
Stage Size: 180mm×160mm |
|
|
Moving Range：80mm×50mm |
|
|
Focusing |
Coaxial coarse & fine focusing adjustment,fine focusing scale value 0.002mm |
|
Light source |
Reflecting illumination: Kohler illumination with aperture iris diaphragm field iris diaphragm Halogen Bulb 12V/50W，AC85V-230V,Brightness adjustable Transmitted illumination: Kohler illumination with aperture iris diaphragm field iris diaphragm Halogen Bulb 12V/50W，AC85V-230V,Brightness adjustable |
|
Polarizing Device |
Analyzer rota table 360°,Polarizer & can be seen out of light path |
|
Filter |
Green、Blue、Neutral |
|
Checking Tool |
0.01mm Micrometer |
|
Optional Accessory |
Eyepiece：WF10X/25mm、WF15X/17mm |
|
objective：infinite Plan Long working distance B&D objectives 80X/0.70（W.D.3.1mm）、100X/0.80（W.D.3.01mm） |
|
|
DIC Device |
|
|
Photography attachment and CCD C-mount 0.5X、0.57X、0.75X 1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Mega |
|
|
Pixels CMOS Digital camera eyepiece |
|
|
CCD Camera,color 1/3 High resolution 700 TV lines |
|
|
Two-dimensional measurement software |
|
|
Professional Metallurgical image analysis software |
|
|
Micrometer eyepiece |
|
|
Various Industrial Camera |
|
