MIC-SQ600 Measuring Microscope is a high value-added equipment, such as they can provide bright field microscope observation mode function, anyone can easily get a microscope microscope image, excellent optical performance to ensure measurement of the overall measurement accuracy.
MIC-SQ600 Measuring Microscope Function Icon
1.Excellent optical system Suitable for the
application of of microscope photographic devices.
2.High-brightness white LED illumination
3.The Z axis electrical moving control Professional controller makes movement more easy and accurate
4.Perfect transmitting illumination， good for outline measurement
precision
Characteristic:
A new optical system can produce clear as in large range
Domestic first ternary system measuring tool microscope
High numerical aperture objective lens MIC-SQ600 Series Special
Lighting system (reflection / transmission) High Brightness LED
Workbench Standard size varied, up to 300 *
The measurement of large size or weight, can use the quick release device for rapid moving table
Standard high-precision electric focusing hand wheel, not only to meet the human body works, more suitable for different optical systems and measuring environmental requirements
This ensures that the exact aggregation and observation method, and has nothing to do with handedness
The detection of high magnification eyepiece magnification up to 100X
Standard measuring microscope, optional accessories include imaging system (video device) with a variety of digital CCD cameras
Low-noise design
With automatic controller, users will experience more easier
operation.minimum moving range is 0.1um, fully meets customers test efficiency
and precision requirement.
Digital display applied on the microscope main body, it is fixed almost the same height as the tester field of view, very comfortable for operation, minimum move of X,Y,Z axis can be switched between 1um and 0.1um, digital display can be switched between mm and inch,support hardware linear compensation
Large stage with firm Scratch resistant coating, makes your machine looks nice after long time usage.
Long life time LED light, guarantee full illumination with over 20000 hours usage, avoiding the problem of changing halogen bulbs.
Measuring software
MIC-SQ600 Measuring Microscope application field

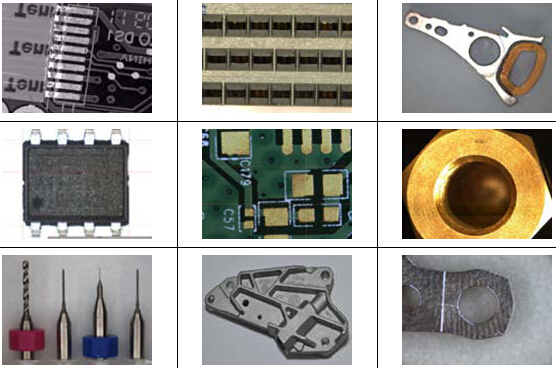

Molds, precision machining parts, stamping parts, injection molded parts, medical equipment, drilling, micro tools, auto components and etc.
MIC-SQ600 Measuring Microscope Specification
|
Model |
VITT MIC-SQ600 |
|
|
The eyepiece lens |
Binocular tube, with a standard camera interface; Cross (cross line); Optical path switching (observed / camera =0/100) |
|
|
The observed image |
As 100% spectroscopic |
|
|
Methods of Observation |
Bright field |
|
|
Adjustable eyepiece diopter |
10/20x, 20x/16 optional |
|
|
Objective |
Standard 3 x object lens, then can choose 1 x, 5 x object lens |
|
|
Focusing System |
Z-axis motor control (fast, medium and slow 3-way adjustable) |
|
|
Light source |
Transmission (led illuminator, collimated light) |
|
|
Epi (led lighting, coaxial light) |
|
|
|
Measuring range |
300 *200mm, 200 *100mmsize or custom platform size |
|
|
Quick release device |
X and y axis standard |
|
|
Zero switch |
X, y, z-axis standard |
|
|
Length measuring system |
High precision digital scale |
|
|
Digital counters |
Minimum reading 0.5um, RS232Coutput |
|
|
External Dimensions (W * D * H) |
380*705*725mm |
|
|
Measurement Accuracy |
X and y: 3 + L/200 ,3-L / 200. L is the measured length |
|
|
Z axis |
Maximum stroke:200mm |
|
|
Focusing method: Electric hand wheel control adjustment (fast, medium and slow) |
||
|
Linear scale: built-in |
|

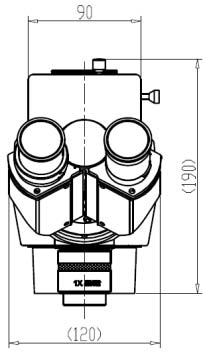

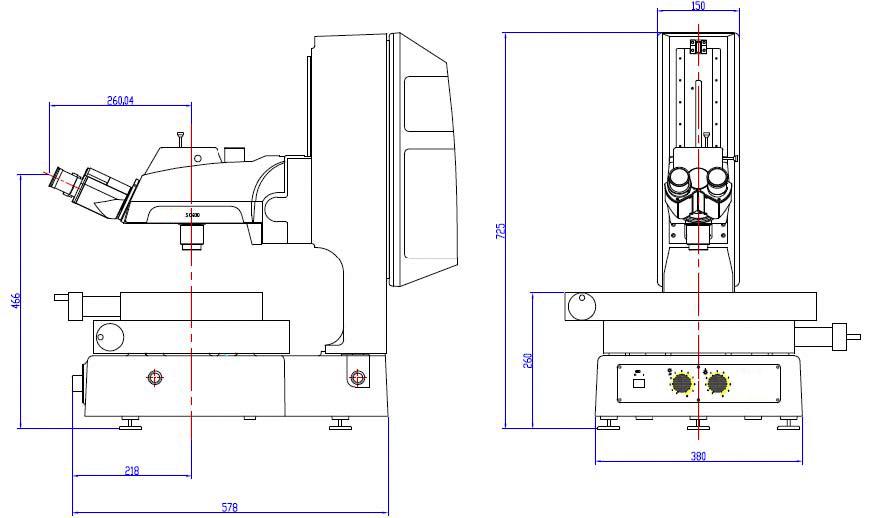

External dimensions (Unit: mm)

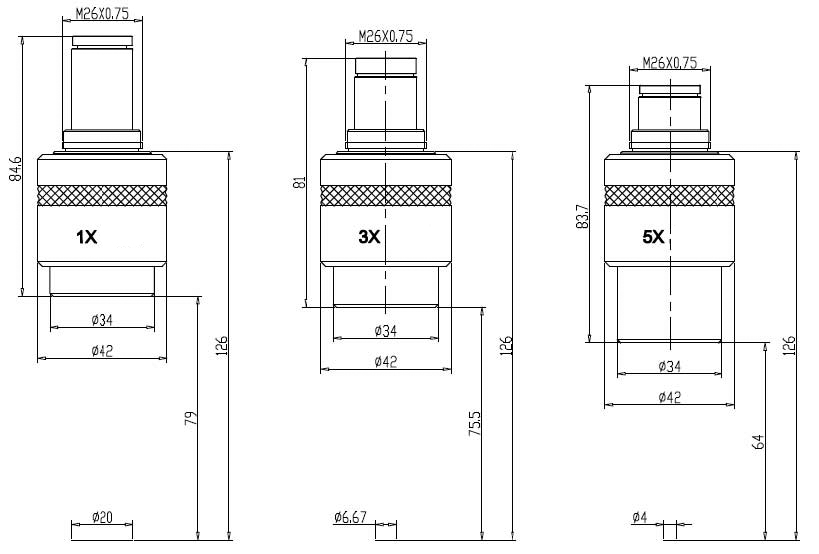

MIC-SQ600 objective description：
These compact lens with a longer working
distance and excellent resolution, almost all have the same objective parfocal
distance
|
Magnification |
1x |
3x |
5x |
|
Working distance (mm) |
79 |
75.5 |
64 |
