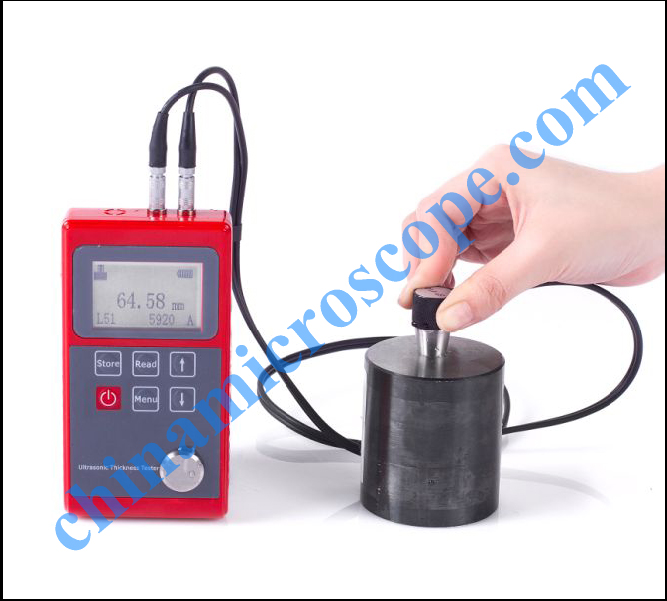

Ultrasonic Thickness Tester MIC-L322

Measuring range(mm)

0.75 ~ 300

Resolution(mm)

0.01

Accuracy(mm)

±（1%H+0.1）

Velocity range(m/s)

1000 ~ 9999

Memory

2000 groups

Velocity

√

measurement English Menu

√

LED backlight

√

Operating

-10℃~60℃

temperature Dampness

20%~90%

Dimensions

130×70×25mm

Power supply

2 AAA alkaline batteries

Weight

200g

Optional Accessories

Probes，Couplant

Standard Delivery

Main unit,Probes,Couplant,2 AAA alkaline batteries

Function & Feature:

Display: LCD with LED backlight .The brightness and the contrast of the LCD is adjustable.

Able to measure the ultrasonic velocity in turn if the thickness value is known in order to improve the

measurement precision.

Zero adjustment: auto returning to zero when you press the key after the probe is put on the specimen.

Simply and easily operated.

Nonlinear correction, automatic compensation, in order to improve the measurement accuracy.

The test block of measuring sound velocity of known thickness.

Battery information indicates the rest capacity of the battery,Auto sleep and auto power off function to conserve

battery life.

Optional software to process the memory data on the PC.

Alarm function: setting the measurement limit and alarming for the results beyond the limit.

Application Fields:

Widely used in petroleum, chemical industry, metallurgy, shipbuilding, aerospace and other fields.

Measuring Material:

Adapted to measure the thickness of good conductor for ultrasonic, such as metal(steel, cast iron, aluminum,

copper), plastic, ceramic, glass, glass fiber and so on.
