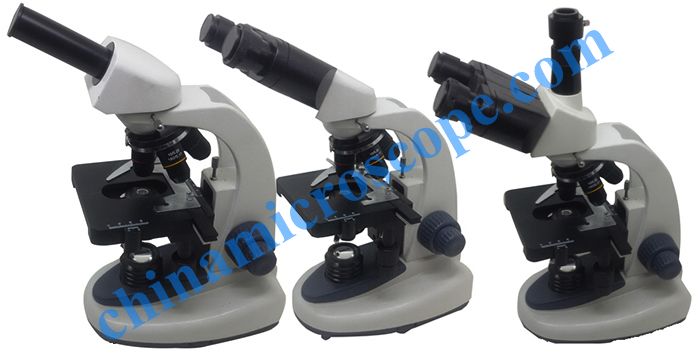

MIC-B30 serials Biological microscope technical specification

Technical specification

Model

MIC-B30-M

MIC-B30-B

MIC-B30-T

MIC-B30-TR

Total magnification: 40X～1600X

Viewing head

monocular head: 30° inclined

 ●

articulated binocular head,30°inclined,360° rotated

 ●

articulated trinocular head,30°inclined,360° rotated

 ●

articulated trinocular head,30°inclined,360° rotated, teaching head

●

Eyepiece

wile-field eyepiece :WF10X/18mm

●

●●

●●

●●

wild-field eyepiece :WF16X/15mm

○

○

○

○

Nosepiece

revolving quadruple nosepiece

●

●

●

●

Objective

195 achromatic objectives:4X,10X,40X（S）,100（O,S）

●

●

●

●

195  achromatic plan objectives:4X,10X,40X（S）,100（O,S）

○

○

○

○

Mechanical stage

115x125mmdouble layer mechanical stage, moving range76mm(X)x50mm（Y）with double section clamp

●

●

●

●

Focusing

Coaxial focus system with upper limited and tension adjustment; coarse adjustment range:20mm, fine adjustment precision:0.002mm

●

●

●

●

Condenser

N.A.1.25condenser

●

●

●

●

Illumination

1W LED illumination, brightness adjustable or 6V/20W, 6V/30W halogen lamp
or 3W LED

●

●

●

●

Filter

yellow, green, blue, neutral color filter

●

●

●
