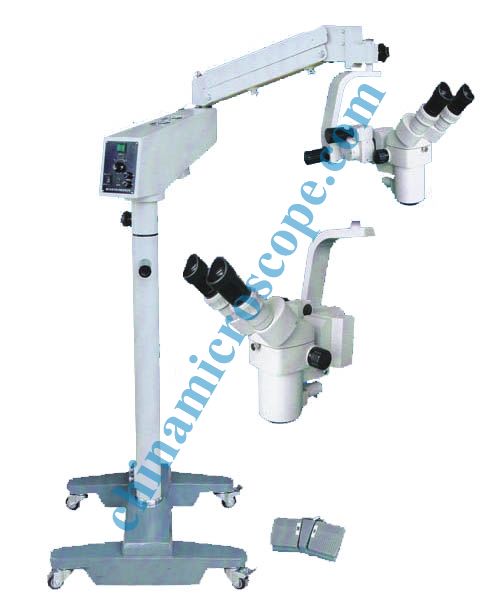

Home > Surgical MicroscopeOphtalmology microscope > MIC-ZJ8A microscope

Feature

Large diameter, wide eyes microscope optical fiber, Stereo sense is strong, high resolution, image is clear.

Primary mirror has 6 movements of degrees of freedom, easily for manual adjust

Secondary and primary mirror 90 degrees, with light Postures, manual consecutively variable times.

Aesthetically pleasing, electric foot control operation is more reliable and fine-tuning and convenient.

Specification



Item/Type

MIC-ZJ8A

Microscope

Eyepiece

45 ºbinocular lenses for one people

10x Eyepiece, wide-angle, can adjusting ocular angle and have protect device, oxyopter adjustmentbinocular±5

Tilting range in pitching

-45º  ~ 45º

Tilting range in swing

-30º  ~ 30º

Pupil Distance

55~75mm

Magnification

5X~20X

Diameter of viewing field

38mm ~10mm

Working distance

≥160mm

Fine focusing

40±10mm

Lighting system

Lighting form

Wide diameter optical fibers

Illumination

15V/150W halogen lamps

Control model

Four adjustment

Intensity

≥50000Lux

Power control

~220V,50Hz

Frame part

Stretch arm length

1050mm

Up-down adjustment range

≥230mm

Base size

580 x560mm

Foot control switch

Electronic zoom

*Video deviceCCD, turn interface, target with and connecting cables, assistant mirror camera, xenon lamp are as options.
