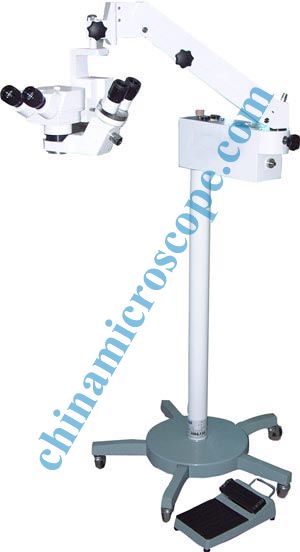

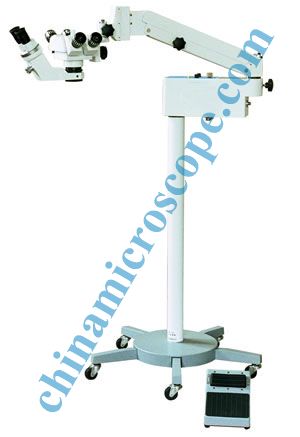

1. MIC-ZJ4B microscope (Orthopaedics surgical microscope, Ophthalmological, Ophthalmology, Ophthalmic) is developed mainly for the anastomosis of capillaries and nerves in orthopedic microsurgeries (Ophthalmological, Ophthalmic, Ophthalmology), and it can also be applied in ophthalmic surgeries. It is an excellent instrument with reliable quality and high cost effectivity.

2. FEATURES:

1) Clear images, Strong Stereoscopic perception

2) One light route for two doctors operating at the same time

3) Coaxial cold light source for bright illumination in Depth

4) Fine adjustment of position through foot switch

3. SPECIFICATIONS:

1) Mechanical performance:

A) Stand up-down range: Spring arm adjustment range:250mm; motorized up-down range:50mm

B) Motorized up-down speed:2.5mm/s

C) Direction Adjusting Range: Level:±180º Left /Right: ±90º

D) Longest Turning Radius of Cross-Arm:800mm

2) Electric Features

A) Maximum illumination of light source. Over 30000LX

B) Cold light source: 8V 50W

C) Voltage Of Power: 220V±10% 50Hz

4. Options:

CCD Camera and connector for images taking and video recording
