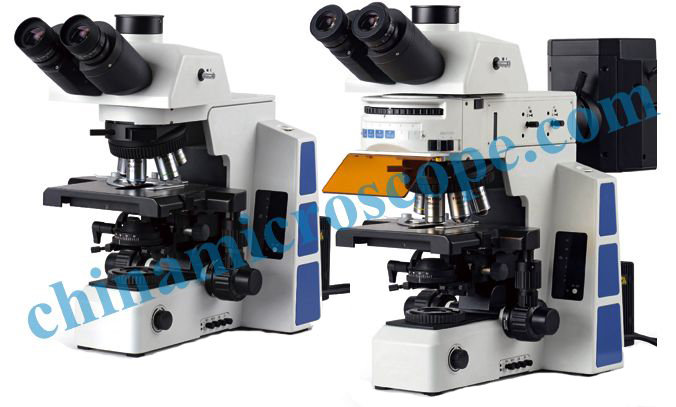

After years of research and development in optical technology field, MIC-Y50 biological microscope is designed to present a safe, comfortable and efficiency observation experience for users. With perfectly performed structure, high-definition optical image and simple operating system, MIC-Y50 realizes professional analysis, and meets all the needs of research in scientific, medical and other fields

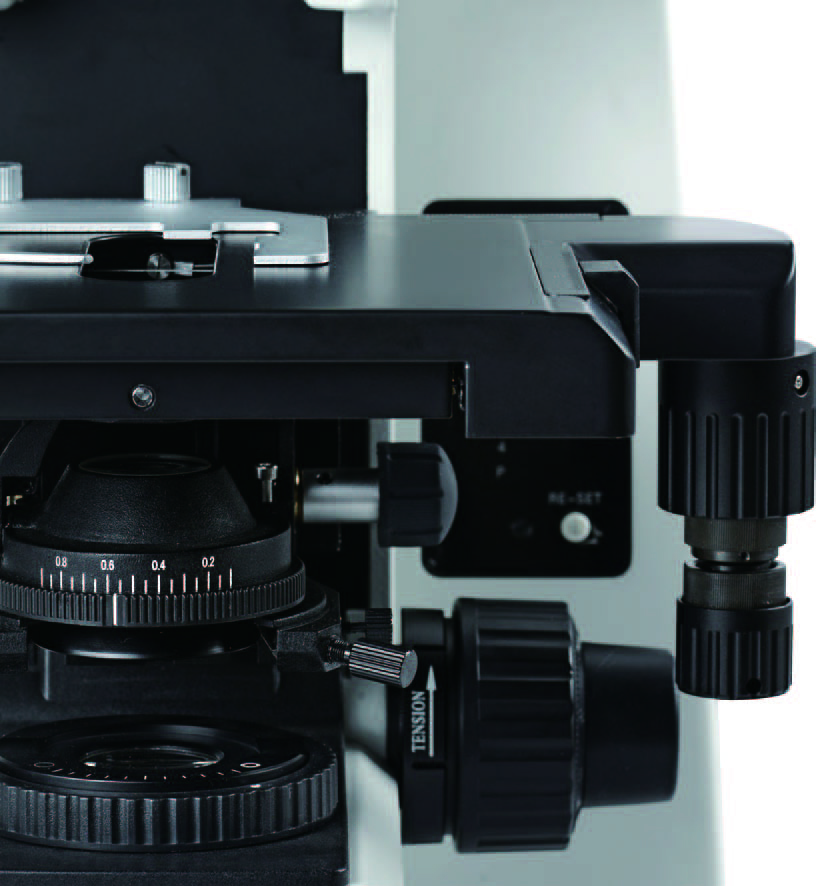

Large stage with adjustment in either hand

■ In order to correct the shortcoming of horizon guide rail, new stage is designed with double-way linear driving mechanism. This change protects the stage from overload at the end of both rails, improves the rigidity and performance of the stage.

■ The handle of the stage can be set at each side based on users’ preference. The X, Y biaxial adjustments are designed with low position for comfortable operation.

■ Two slices can be hold on the stage by using damping-type double clips, easy for comparative study. Moving range: 80mm X55mm; precision: 0.1mm.

■ Processed with special craft, the surface of the stage is anticorrosive and anti-friction. The platform with an arc transition design reduces the stress concentration and damage from impact.

■ Light barrier, which can effectively reduce the stray light, improves the image contrast in fluorescence observation.

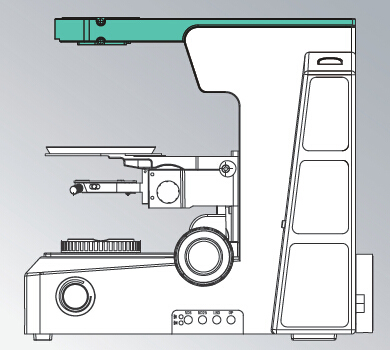

Modular frame, improving the system compatibility

MIC-Y50 with modularization design, separated cross arm and main body, improves the system compatibility of biological and fluorescence frame.

Highly sensitive coaxial coarse and fine adjustment

Coaxial adjustment adopts double-stage driving, with adjustable tension tightness and upper limit stop, coarse range is25mmand fine precision is 1μm. Not only accurately focus but also precision measurement is available.

Viewing head with multi-splitting ratio

☆MIC-Y50 viewing head is designed of multiple options for splitting ratio. with wide beam imaging system, 26.5mm super wide filed of view is available.

Trinocular head with inverted image, splitting ratio Binocular:Trinocular=100:0 or 20:80 or 0:100. Except for concentrating 100% light to eyepiece tube or camera tube, there is another option with 20% light to eyepiece tube and 80% to camera tube, so that eyepiece observation and image output can be available at the same time. Trinocular head with erect image, splitting ratio Binocular:Trinocular=100:0 or 0:100. The moving

☆ Quintuple/sextuple/septuple nosepiece for option.

☆ 12V100W halogen lamp house provides transmitted light. Illuminator center is preset, without adjustment after replacing the lamp.

☆ N.A.0.9swing-out type achromatic condenser,with iris diaphragm and aperture scale, provides sufficient and uniform light for full-field observation in different magnifications.

Multifunctional reflection illumination

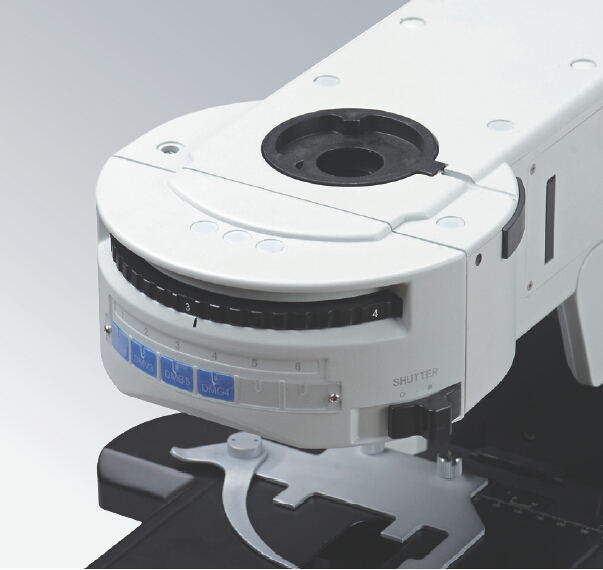

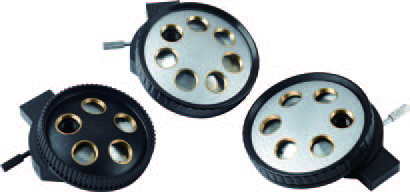

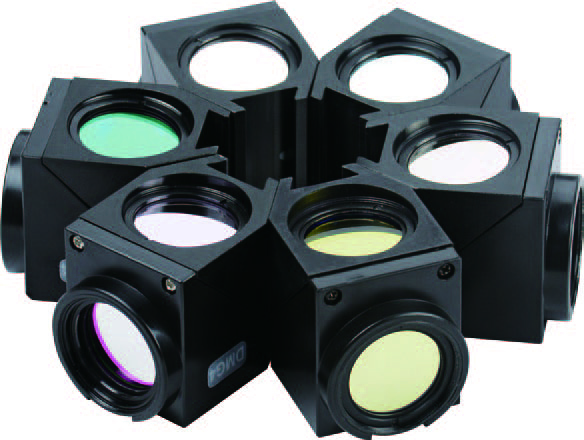

In MIC-Y50 reflection fluorescent illumination, maximum 6 fluorescence filters can be assembled at the same time. Filters are placed in a rotary table for convenient switch. High precision and stable rotary table and high-performance imported filter ensures a drift-free image.

☆ There is a light shutter in front of the reflected illuminator. It is used to shut the fluorescent light to prevent fluorescence quenching of the slice.

☆ The light barrier can protect users from the harm of UV light.

☆ The use of ND attenuation filter, or aperture and field diaphragm rod can efficiently reduce the intensity of exciting light to protect the slice.

☆ After replacing the lamp, the centering objective helps users in adjusting the filament center to make sure a sufficient and uniform fluorescent illumination.

Power control system for mercury lamp

New digital power control system with operating time and current value, clearly shows the working state of the mercury lamp.

Two power supply systems, providing multiple choices of high quality illumination

New developed 100WEHVDCmercury lamp house with improved thermal cycle greatly reduces the surface temperature of the lamp house and avoids the scald risk during operation. The filament center is easily adjustable. 75W xenon lamp for option.

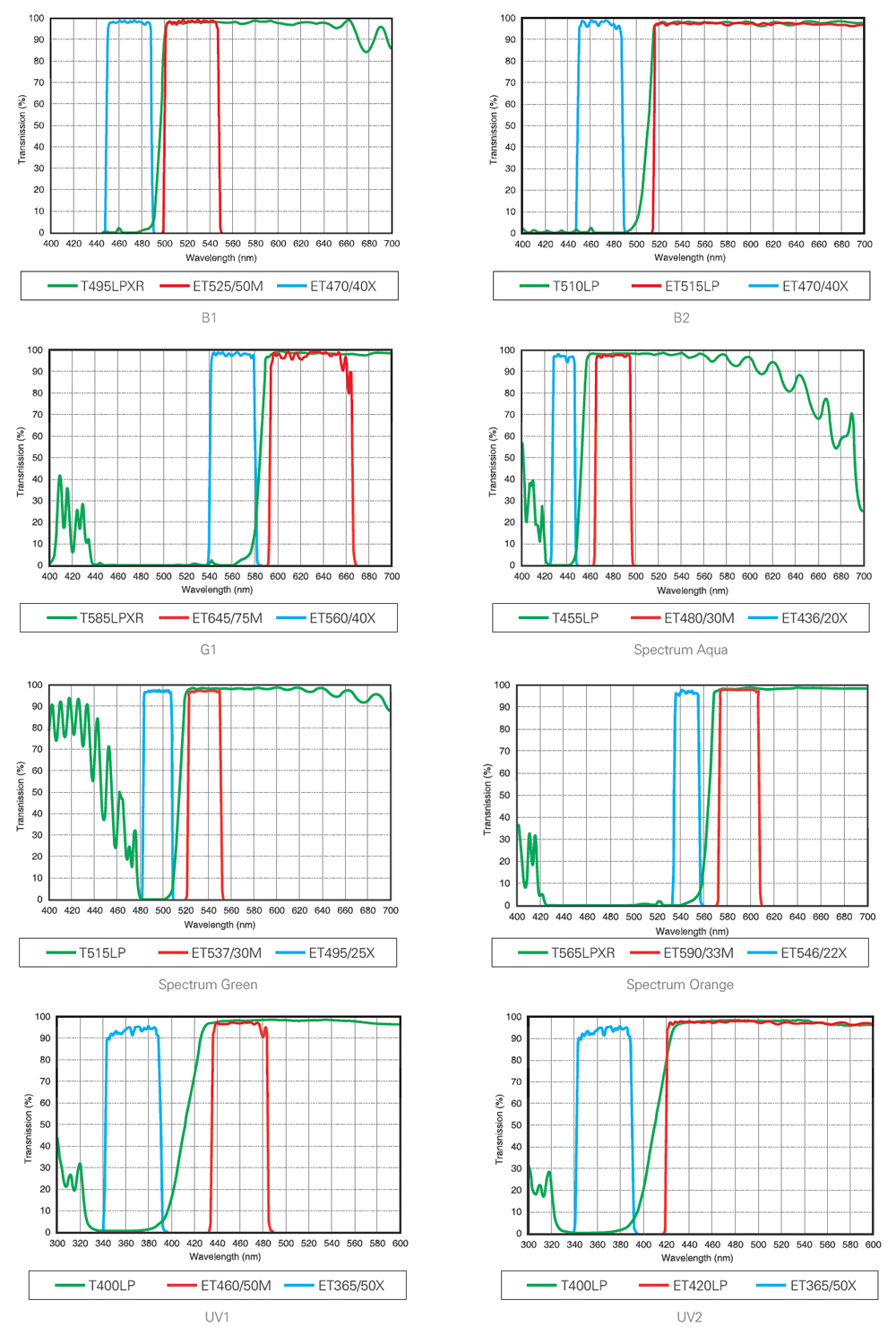

Standard parameters of fluorescent filters, substantially meet the needs of conventional scientific research. For some special requirements, specific filters also can be provided corresponding to fluorescent probes.

MIC-Y50 microscope specification

Professional plan fluorite objectives

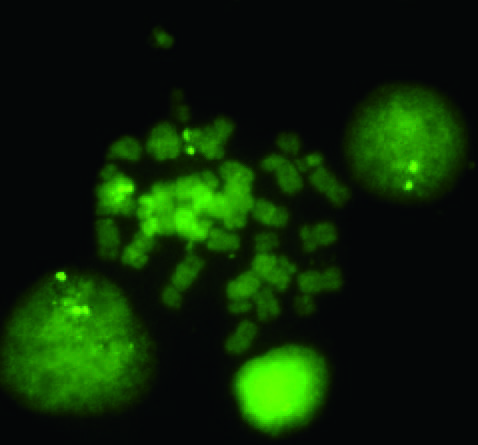

PLAN-FLUOR series infinity plan semi-apochromatic objectives, is the best choice for fluorescence observation. Adopting crystal optics materials, perfectly corrects all kinds of chromatic aberrations. Large numerical aperture design presents high resolution, high contrast micro-images. In fluorescence observation, the image is clear and bright while the background is pure black, prominent for ultraviolet fluorescence.

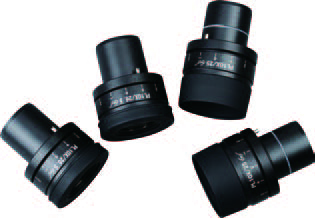

High eye-point ultra wide field plan eyepieces

■ Breaking through 22mm conventional field of view, reaching to 25mm and 26.5mm, much smoother and wider field of view, is helpful to improve the work efficiency.

■ Locating pin on eyepiece inserts into the eyepiece tube, fixing the eyepiece for easy focusing. Larger adjustable range of diopter from -8 to +5, meets more dme ands of different users.

■ Eyepiece cup can be turn up to avoid external stray light. Spectacle-wearers should turn down the cup to protect both spectacles and eyepieces.

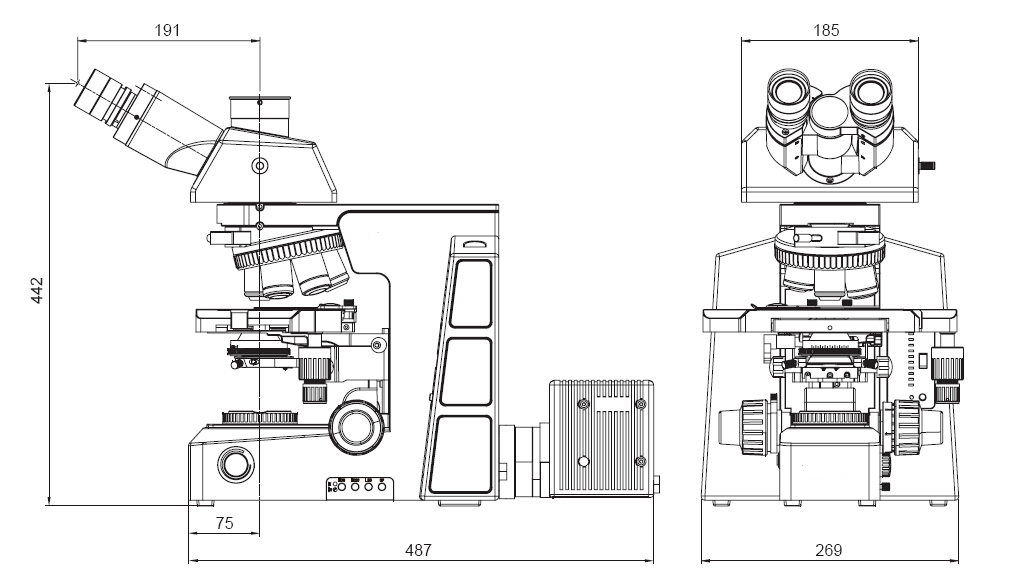

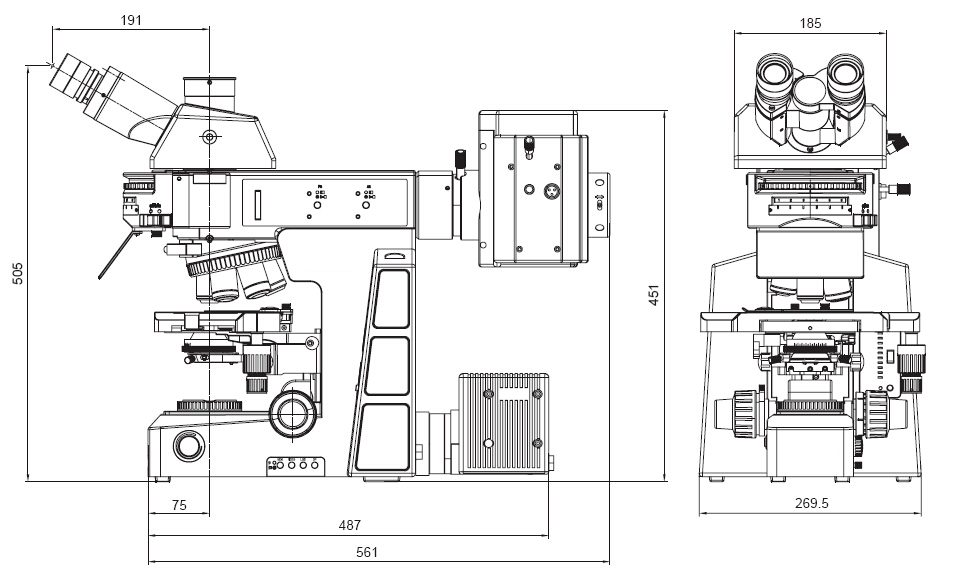

MIC-Y50 microscope system dimension

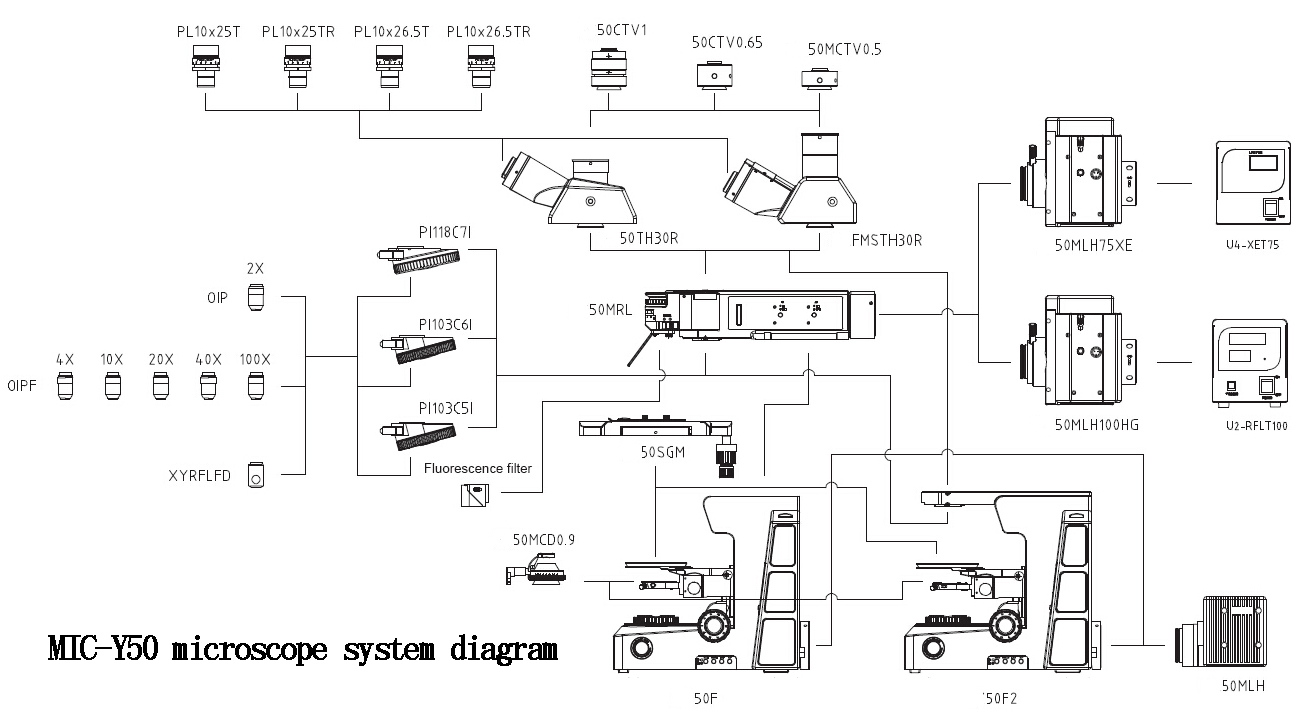

MIC-Y50 microscope system diagram
