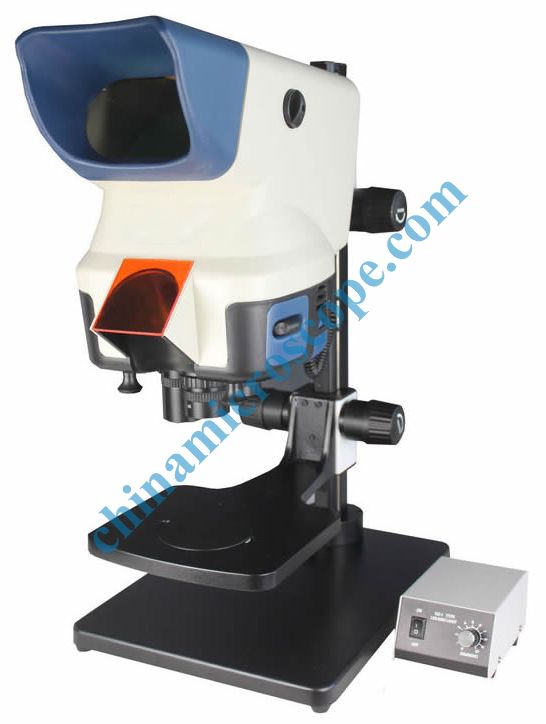

MIC-S13 is the new large viewing field microscope. If produces sharp and stereoscopic images. It is to be operated easily and comfortable. Widely applied to biological dissection, electronics, minerals.
Features:
1. Imaging from optical entity; providing with various objectives of 2×、4×、6×、8×、10×、15× magnification. The objectives can be conveniently changed; owning humanistic operating system.
2. For the long time viewing without visual weariness, the freely and comfortably operating can be beyond the visual limit, and improve the working efficiency.
3. Possessing the super-long working distance super-large field of viewing and depth of field, so that the operator hasn’t any limited.
4. Application to electronic industry precision project plastic shop medical diagnosis and biological medicine public security system and so on.

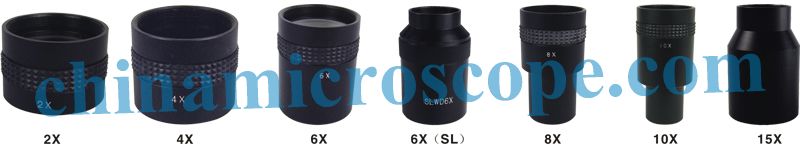

Specification & Objective
|
Magnification |
Working distance(mm) |
Viewing field for object space(mm) |
Equipment |
|
2× |
208 |
68 |
● |
|
4× |
98 |
34 |
● |
|
6× |
80 |
22.7 |
● |
|
8× |
58 |
17 |
○ |
|
10× |
46 |
13.6 |
○ |
|
15× |
50 |
9.1 |
○ |
|
6×（SL） |
115 |
22.7 |
○ |
Height:1800mm
Free Viewing Body,StrengthRange:850mm, easily observe large area objective.
Stable stand, free sliding, long vertical distance is580mmwith boost up and down.
Universal block with tension adjustment in bottom, it can free to move or fix
so that to observe in a good position.
|
Application range Electronics: PCB Setting, QC, Screening, Rework & Weld Precision project & Plastic: QC, Micro-welding, Micro-machining In jecting & Moulding
Medical & Dentistry Equipment
Manufacturing: Finish machining Biological medicine: Sample-Making, dissecting, Dyeing, Microscopy Public Security system |
Optional LED Illumination |

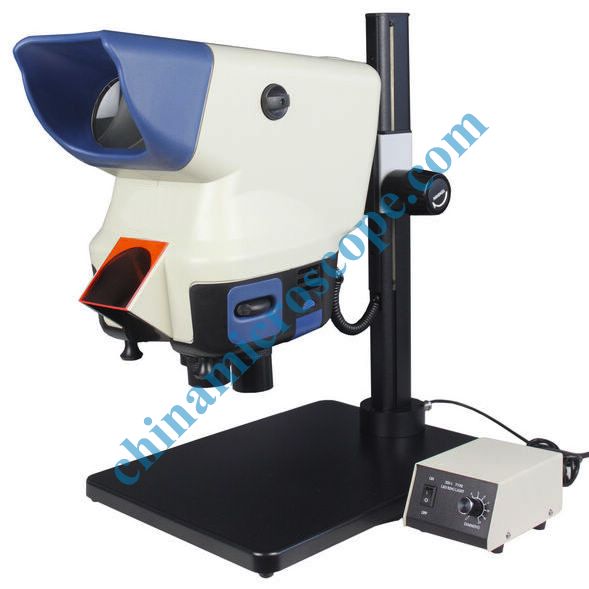

For MIC-S13 with basement
Base dimension：400×300×20 mm(15.74×11.81×0.78 inch)
Stand arm height:500 mm(19.68 inch)
Moving range : 200 mm
Exterior LED lighting
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace with
technological advances, we have reserved the right to
make design modification
and changes without notice.
